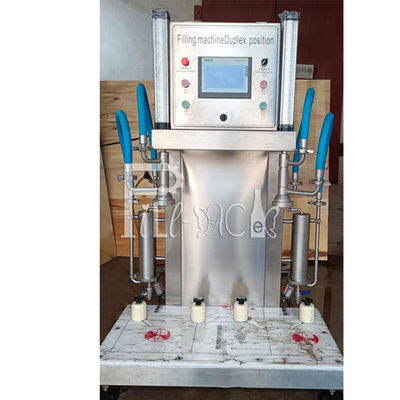

Semi Automatic Beer Filling Machine Plastic Glass Bottle 2 Heads Line Device Filler
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SETS |
|---|---|
| Price: | 12000USD |
| Packaging Details: | Wooden Case Packing |
| Delivery Time: | 7-10 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Machinery Capacity: | 4000BPH | Filling Material: | Beer |
|---|---|---|---|
| Beer Pressure: | 0.2-0.28MPA | Packaging Material: | Gas Barrel |
| Cylinder Piston Stroke: | 350mm | Material: | SUS304 |
| Dimension(L*W*H): | 970*500*1500 Mm | Weight: | 800KG |
| High Light: | Semi automatic Beer Filling Machine,2heads Beer Filling Machine,4000BPH Beer Filling Machine |
||
Product Description
Semi-automatic Plastic Glass Bottle 2 heads Beer Filling Machine / Equipment / Line / Device / Filler
A semi-automatic plastic glass bottle 2-head beer filling machine is a type of equipment used for filling plastic or glass bottles with beer. It is designed to facilitate the beer bottling process by automating certain tasks while still requiring some manual intervention.
Purpose and scope of application
1. This machine is a special filling automation equipment for breweries and craft breweries to fill beer fresh-keeping barrels. It adopts advanced self-developed liquid level controllers, and the filling is accurate, rapid, anaerobic, and almost zero wine loss.
2. This machine is suitable for beer fresh-keeping barrels with standard flat wine mats.
3. This machine adopts the method of top filling wine (adaptation height: 350-560MM)
The structure and working principle of the machine
1. Structure: This machine is composed of a frame, a working platform, an electric control box, a wine injection hose, a wine injection head, an air control valve, pneumatic components, and a liquid level controller.
2. Working principle: The programmable controller produced by German Siemens in the electric control box controls each actuator. Press the button and the 5/2 solenoid valve is energized. The cylinder drives the filling head down to press the wine barrel on the workbench (the filling head and the wine are opened at the same time), and after 4 seconds, the two-position two-way solenoid valve is energized (opened), and the carbon dioxide of the liquid level controller After 6 seconds, the two-position three-way solenoid valve and the two-position two-way solenoid valve are energized (opened), the two-position three-way solenoid valve is opened, and the filling of the air-controlled angle seat valve starts. After the wine is filled, the The
proximity switch on the liquid level controller sends a signal, the two-position three-way solenoid valve is powered off and the air control valve is closed, and the two-position two-way solenoid valve and the two-position five-way solenoid valve are also powered off, the cylinder automatically returns, and the one-time filling The outfit is over.
Parameter:
|
Bucket capacity (L)
|
5
|
10
|
15
|
20
|
30
|
50
|
|
Filling wine time (S)
|
20
|
25
|
30
|
40
|
50
|
55
|

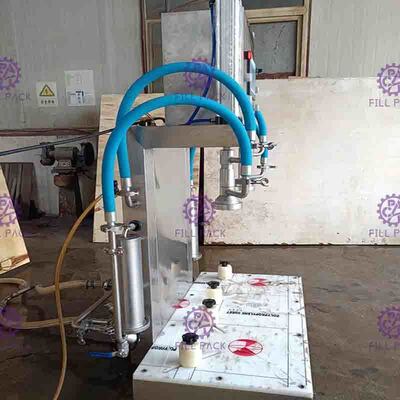

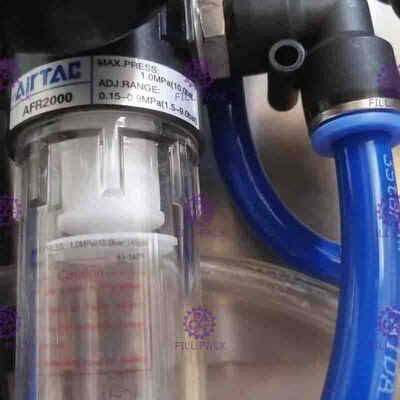

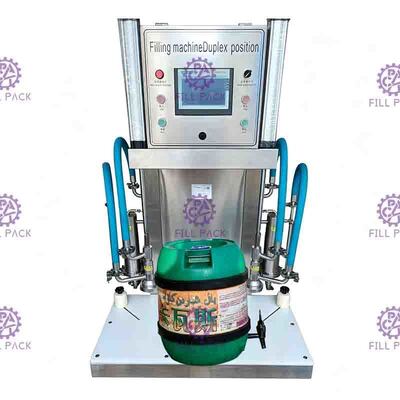

Detailed images:
Application:
