24 Head Juice Filling Machine 8000 Plastic Bottles Per Hour Screw Caps

24 Head Juice Filling Machine 8000 Plastic Bottles Per Hour Screw Caps

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: YFRG24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/year
Get Best Price Contact Now

Detail Information

Filling Type: Hot Filling Machine/normal Pressure Filling Machine Material: SUS304
Processing Type: Juice Filling Machine Control: PLC And Touch Screen
Cap Type: Screw Caps Bottle Type: 0.3-2L Bottle
High Light:

coffee filling machine


aseptic filling machine

Product Description

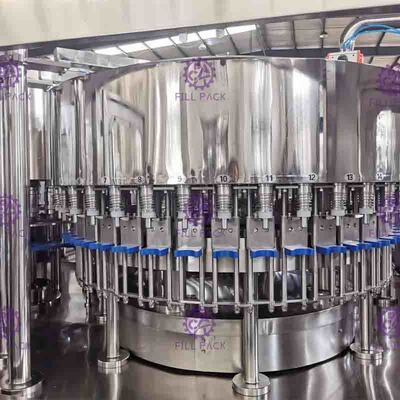

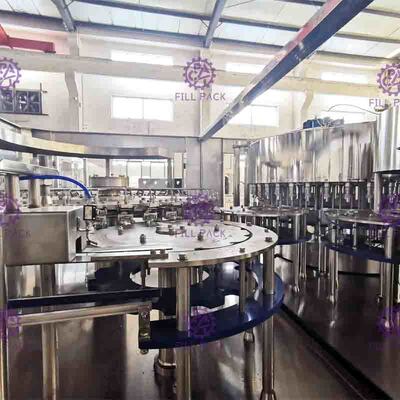

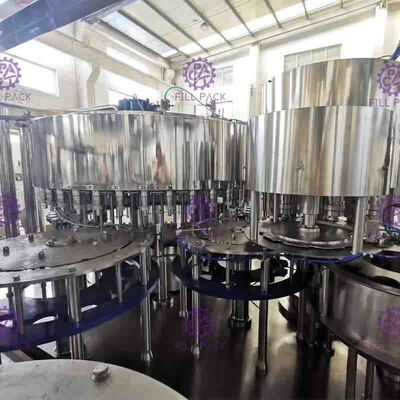

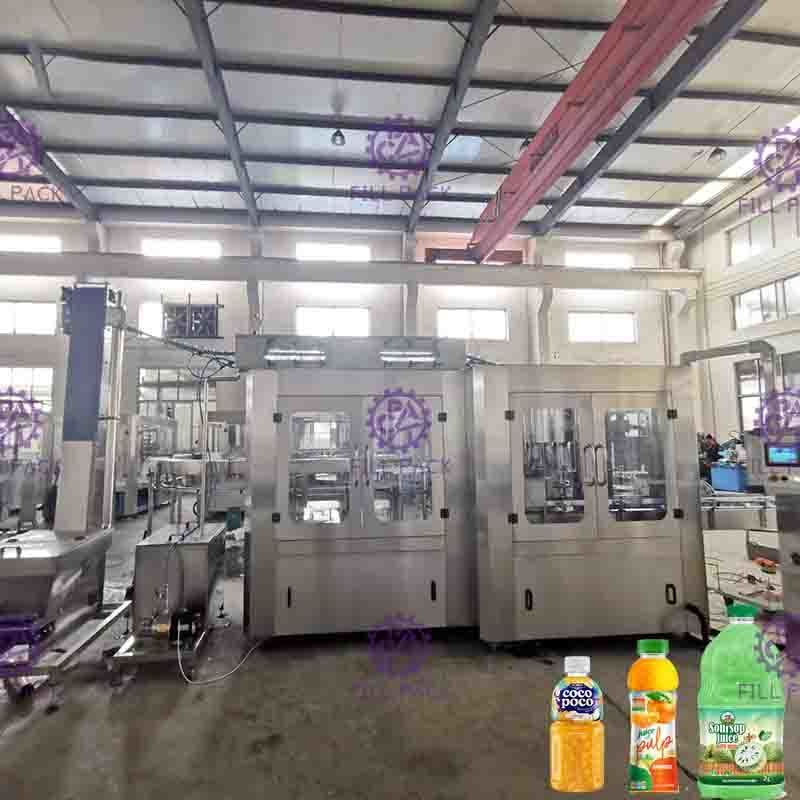

24 Head Juice Filling Machine 8000 Plastic Bottles Per Hour Screw Caps



Quick Detail:


Name: High Capacity Hot Filling Machine Concentrated Juice Commercial Bottling Equipment

Material: Food stage stainless steel 304 or 316

Filling type: Hot filling machine / Normal pressure filling machine
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: Basing on real bottles and caps
Machine structure: Washing filling capping 3 in 1
Technology: Germany & Japan








- Hot filling machine concentrated juice / tea commercial bottling equipment;


- Washing, filling and capping are integrated in one machine which is called 3 in 1 hot filling machine;


- The most advanced technology from Japan and Germany is employed in the design;


- The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.


- The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps;


- The whole machine is controlled by PLC with touch-screen as the human-machine interface;


- The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently;


- It is used for the plastic bottle juice processing, from the raw bottle coming across the machine, first the water wash the inner plastic bottle, then filling part, last the bottle capping part. At last the bottled fruit juice coming out.





Model YFRG12-12-4 YFRG18-18-6 YFRG24-24-8 YFRG32-32-10
Production B/H(600ml) 4000-5000 6000-8000 8000-12000 12000-15000
Bottle standard Neck:φ50-100mm Height150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100






Competitive Advantage:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
