Automatic drinking water bottling machine , High Speed filling machine

Automatic drinking water bottling machine , High Speed filling machine

    • Automatic drinking water bottling machine , High Speed filling machine
    • Automatic drinking water bottling machine , High Speed filling machine
    • Automatic drinking water bottling machine , High Speed filling machine
    • Automatic drinking water bottling machine , High Speed filling machine
    • Automatic drinking water bottling machine , High Speed filling machine
  • Automatic drinking water bottling machine , High Speed filling machine

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS

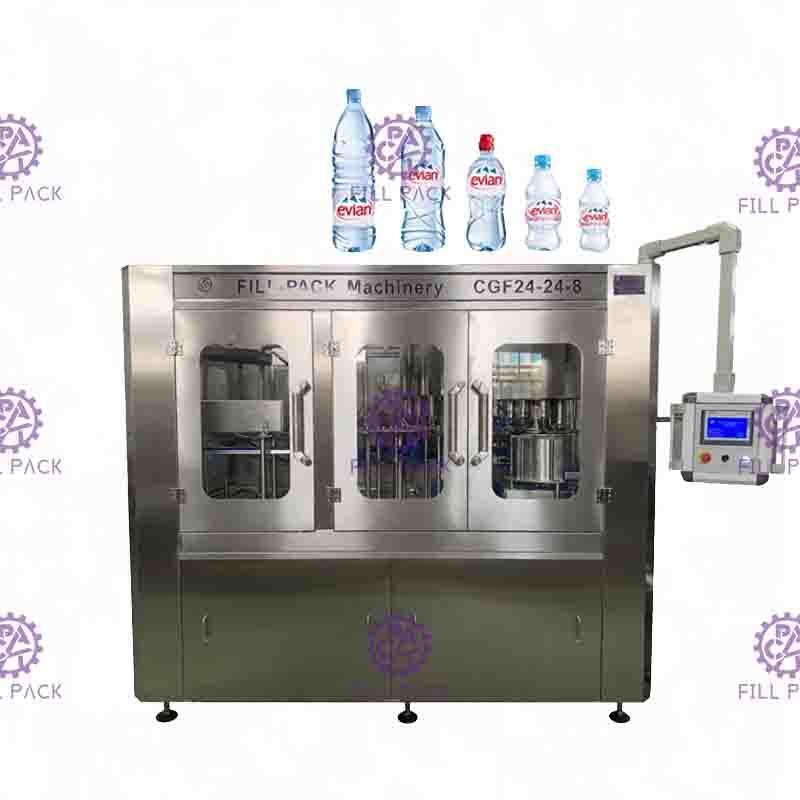

    Model Number: CGF24-24-8
    Color: Silver Gray
    Control: PLC Control With Touch Screen
    Processing: Japan & Germany
    Suitable Bottle Size: 0.3-2L PET Bottle
    Cap Style: Plastic Screw Cap
    Capacity: 10000-12000BPH
    Electrical Brand: Mitsubishi, OMRON, SIEMENS
    Warranty: 1 Year for Spare Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 12000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description



    Quick Detail:



    Name: automatic drinking water bottling machine with high speed

    Material: Food stage stainless steel
    Control: PLC & touch screen control
    Capacity: 10000-15000bph
    Suitable Bottle: PET bottle
    Bottle Volume: 0.3-2L
    Dimension: By order
    Function: washing filling capping 3 in 1
    Technology: Advanced
    After-sales service provided: Engineers available to service machinery overseas .







    Description:



    1. The automatic drinking water bottling machine is mainly used in drinking water production line, there are three functions integrated in one machine, they are bottle washing, drinking water filling, bottle capping. The full production processing is automatic, when the empty bottle coming through the machine, then coming out the bottled mineral water.

    2. The automatic drinking water bottling machine is composed by rotary washer, normal pressure filler, screw type sealer and conveying system.

    3. The automatic drinking water bottling machine's construction is advanced, the performance is stable. The operation and maintain are easy.

    4. The speed of automatic drinking water bottling machine can be adjusted infinitively and accords with the standards.

    5. It is used for filling all kinds of non-carbonated water, such as drinking water, still water, mineral water, flavored water, spring water.

    6. The usual production capacity is in 2000-20000bph, 0.2-2L PET bottle is available.





    Specifications:





    Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Rinsing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 6 6 8 10

    Rated

    Capacity

    (500ml)

    2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
    Overall Size

    1900*1420*

    2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T
    Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized Customized





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project



    Automatic drinking water bottling machine , High Speed filling machine

    please kindly click the play button to watch the video
