High Speed Drinking Water Filling Machine Gravity Model

High Speed Drinking Water Filling Machine Gravity Model

    • High Speed Drinking Water Filling Machine Gravity Model
    • High Speed Drinking Water Filling Machine Gravity Model
    • High Speed Drinking Water Filling Machine Gravity Model
    • High Speed Drinking Water Filling Machine Gravity Model
    • High Speed Drinking Water Filling Machine Gravity Model
  • High Speed Drinking Water Filling Machine Gravity Model

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: HCGF24-24-8
    Condition: New
    Application: PET bottle water
    Automation: Automatic
    Suitable Bottle Size: 0.3-2L PET Bottle
    Fuction: washing filling capping 3 in 1
    Capacity: 10000-15000BPH
    Warranty: 1 Year for Spare Parts
    Service: Technician avaliable overseas

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: TT & L/C
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description

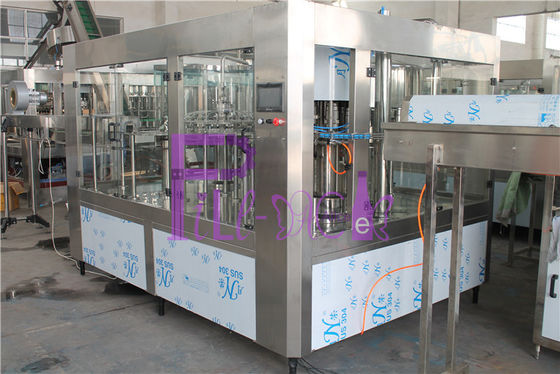

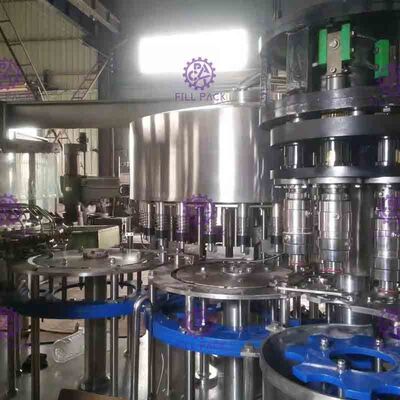

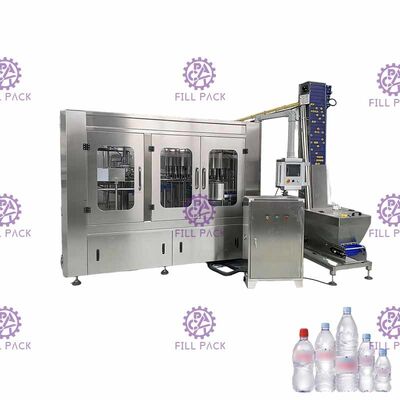

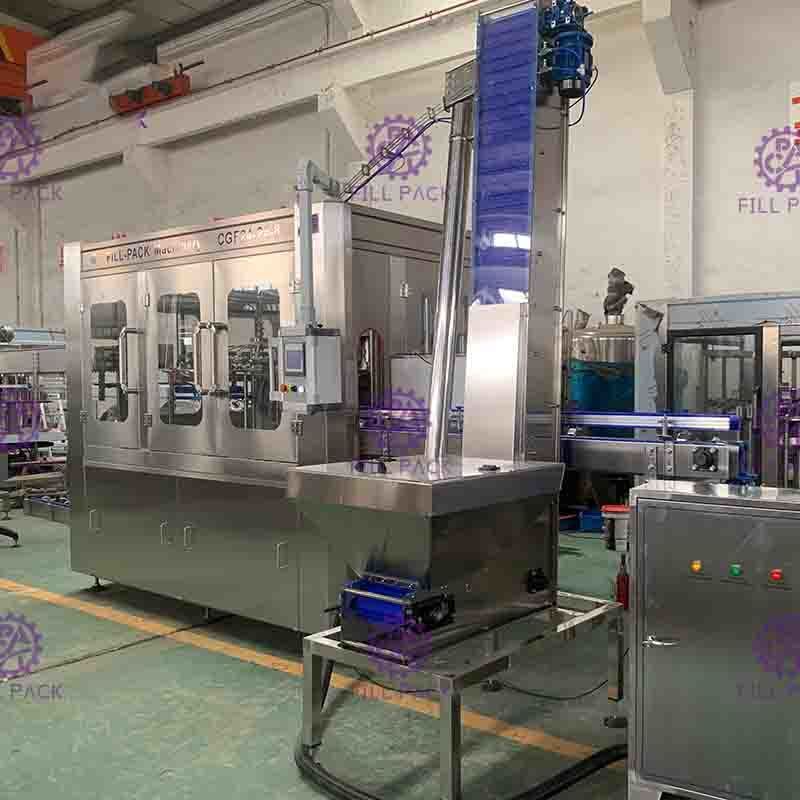

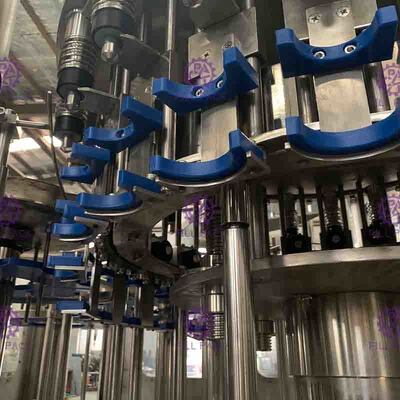

    High Speed Drinking Water Filling Machine Gravity Model





    Quick Detail:



    Character: High speed

    Comparation: Normal CGF24- 24- 8, Speed: 8000-12000BPH;

    Innovative HCGF24-24-8, Speed: 10000-15000BPH

    Filling Temperature: ambient temperature
    Filling Principle: Gravity Filling
    Filling Product: mineral water, purified water, flavor water and low alcoholic drinks.

    Bottle used: PET bottle

    Speciality: More fixing points, lower gravity center





    Description:



    1. High Speed Drinking Water Filling Machine is our new innovation which our engineer developed on normal machine with absorbing oversea advanced technology.

    2. It integrates bottle washing washing machine, negative pressure filling machine and bottle capping machine. It has compact structure so as to save the space.

    3. The water filling machine is driven by single motor. It is with cardan joint and frequency control of motor speed, it can make sure each part of the equipment operate synchronously.

    4. It is easy to operate, running steadily, the high level of automaticity. It could be set and stopped automatically if one bottle was blocked in order to protect the equipment from damaging.

    5.The whole technical process is short and sealed completely, in order to make sure the products are not polluted.

    6. With using this high speed drinking water filling machine, same model, higher speed, less space ans less cost, so it is ideal choice.





    Specifications:



    Model HCGF18-18-6 HCGF24-24-8 HCGF32-32-10
    Washing Head No 18 24 32
    Filling Head No 18 24 32
    Capping Head No 6 8 10

    Rated

    Capacity

    (500ml)

    8000-12000BPH 12000-15000BPH 15000-20000BPH
    Overall Size

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 3.5T 4.5T 8.5T

    Power

    (KW)

    4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized




    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project



    High Speed Drinking Water Filling Machine Gravity Model

    please kindly click the play button to watch the video
