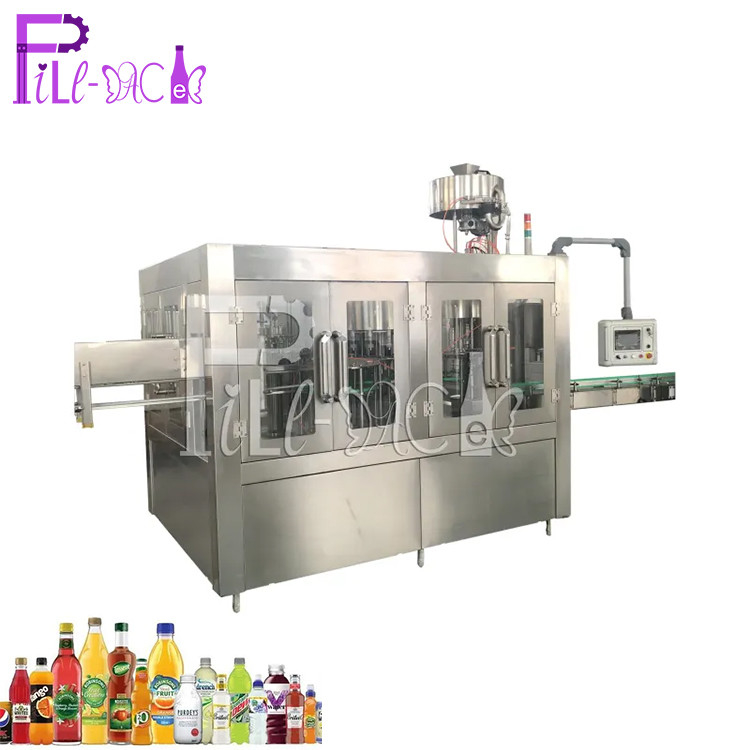

• Monoblock Washing Juice Filling Capping Machine CGF32-32-10 Plastic Bottle Equipment
Monoblock Washing Juice Filling Capping Machine CGF32-32-10 Plastic Bottle Equipment

Monoblock Washing Juice Filling Capping Machine CGF32-32-10 Plastic Bottle Equipment

Product Details:

Place of Origin: zhangjiagang,china
Brand Name: FILL PACK
Certification: CE/ISO9001
Model Number: CGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 43,000 USD
Packaging Details: boxes
Delivery Time: 20-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Capacity: 12000-15000 BPH Control System: PLC
Filling Accuracy: ±1% Filling Type: Automatic
Material: SUS304 Operation Mode: Automatic
Packaging Material: Plastic Power: 7.6KW
Product Name: Juice Filling Machine Size: 3800*3200*2100mm
Voltage: 220V/380V Warranty: 1 Year
Weight: 5000kg
High Light:

Monoblock washing filling capping machine

,

15000 BPH Monoblock filling capping machine

,

380V Juice filling capping machine

Product Description

Product Description

Introduction

This equipment is a hot filling machine integrating cleaning, filling and capping functions. It adopts advanced Japanese and German technology and is suitable for hot filling milk and tea beverages, and can also be used for the production of non-carbon dioxide beverages such as mineral spring purified water after replacing some parts. Equipment with anti-corrosion function, and use anti-corrosion materials. Specially designed piping takes into account the connection location and angle bends to prevent dead ends. The production capacity can be displayed digitally and can be easily adjusted. The equipment can meet the hot filling standard above 85℃, and the pipes and pumps have no corners.

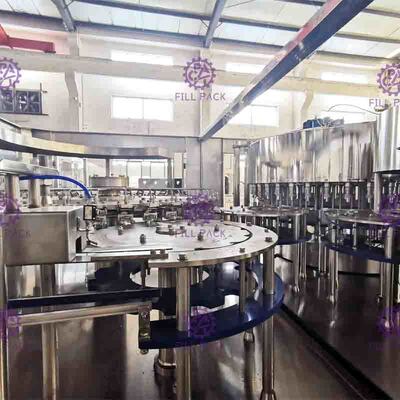

Monoblock Washing Juice Filling Capping Machine CGF32-32-10 Plastic Bottle Equipment 0
Features
1. High-quality Construction: The spare parts of the machine, except for the down framework and transmission parts, are made of stainless steel 304, ensuring durability and resistance to corrosion.
2. Adjustable for Different Bottle Heights: The height of the rotary parts can be adjusted to accommodate bottles of varying sizes, allowing for flexibility in production.

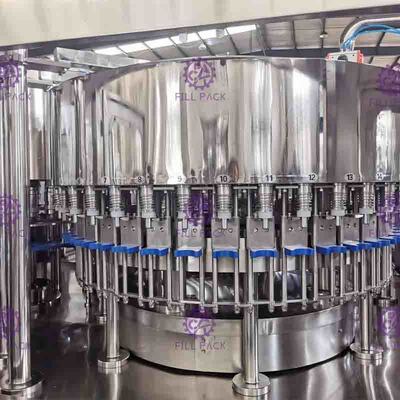

3. Efficient and Clean Filling: The spring-type filling head ensures smooth operation without dead angles, preventing dripping and ensuring precise filling. This design also facilitates easy cleaning and maintenance of the machine. 4. Dual-Purpose Design: The screwing capping head is designed to accommodate both flat caps and sport caps, providing versatility in cap sealing options. 5. Cap Detection: Photoelectric switches are installed on the cap-falling guide to detect the presence of caps. The machine will automatically stop if no cap is detected on the guide, preventing operation without caps. 6. Product Rinsing: Aseptic nozzles are positioned between the transition poking wheel and filling parts, allowing for rinsing of the product residues in the bottleneck screw parts, ensuring cleanliness and hygiene. 7. Cap-Lock Cylinder: A cap-lock cylinder is located at the joint between the cap-falling guide and poking cap plate. This mechanism ensures that caps are only fed when needed, improving efficiency and preventing misalignment.

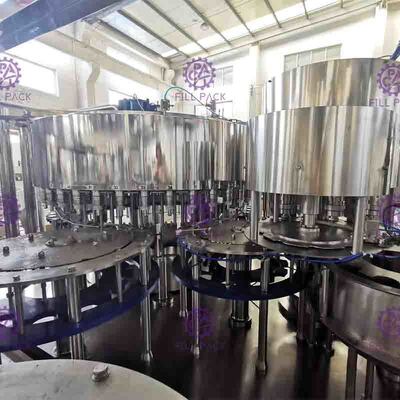

Monoblock Washing Juice Filling Capping Machine CGF32-32-10 Plastic Bottle Equipment 1
Parameters
Model
CGF32-32-10
Capacity (B/H)
12000-15000(600ml)
Bottle size
Neck :φ50-100mm:Height:150-320mm
Water Pressure
0.18-0.25Mpa
Washing Water consumption(kg/h)
2000-3000
Washing station
16
Dripping station
8
Filling precision
<+1MM
Air pressure
0.3Mpa
Air consumption
0.5m3/min
Power(kw)
7.6
Weight(kg)
5000
Dimension(L*W*H)
3800*3200*2100 mm
Electrical apparatus:
Transducer
Mitsubishi
Touch screen
Easyview-TaiWan
PLC
Mitsubishi
Stabilized voltage supply
MingWei-TaiWan
Contactor
Schneider
Approach switch
Autonics
Air switch
Schneider
Capacity
150-200 pcs/min

Motor Power:
0.37kw AC, 380V/220V
Vibration power
80w AC, 380V/220V
Application cap
PET screw cap
Dimension
600*600*2500
Weight
100kg
