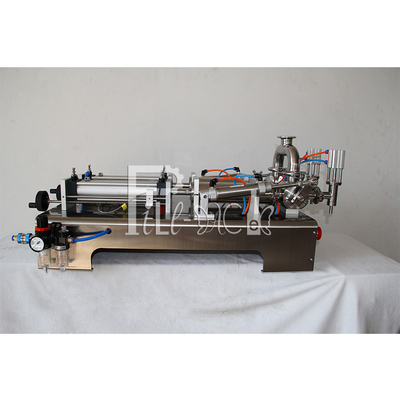

Semi Automatic Pneumatic Piston Filling Machine High Pneumatic Viscosity High Precision SUS304
Product Details:
| Place of Origin: | Zhangjiagang,China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | Single head viscosity filling machine/Double heads viscosity filling machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 100USD |
| Packaging Details: | Cartons |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Air Consumption: | ≥0.008m³/second | Air Pressure: | 0.4-0.6mpa |
|---|---|---|---|
| Filling Range: | 3-5000ml | Filling Speed: | 5-50 Bottles/min |
| Material: | SUS304 | Operation Mode: | Semi-Automatic |
| Power Consumption: | 20-50KW | Power Supply: | AC220/110V 50/60HZ |
| Size: | 1380*680*380 | Type: | Piston Filling Machine |
| Weight: | 25-85KG | ||
| High Light: | Semi automatic Pneumatic Piston Filling Machine,Pneumatic SUS304 Piston Filling Machine,Piston 5000ml Filling Machine |
||
Product Description
Descriptions

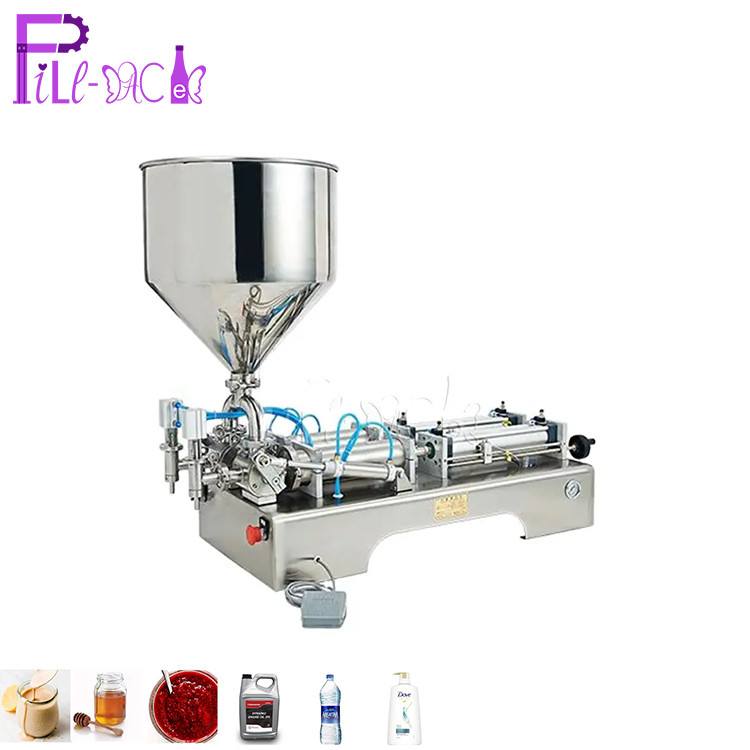

Horizontal viscosity pneumatic filling machine is the ideal equipment for paste filling.This filling machine is used to filling food industry such as thick broad-bean sauce, and chili sauce,ketchup;cosmetic industry, such as shampoo, cream, liquid soap and shower gel and so on.The whole machine is made of high quality stainless steel, and the shape is novel and beautiful.It's widely used in pharmaceutical, cosmetic, food, pesticides and special industries.
Principle:
The machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment.
The machine is equipped with foot switch, it can stop working at any time.
REMARK: The machine has round and square hopper, can be customized as customer’s requirements.
Characteristics:
1. The machine has simple and reasonable structure, high filling precision, it is easy to operate.
2. It is the ideal equipment to filling high viscosity fluid, and cream.
3. The pneumatic parts adopt famous brand pneumatic elements.
4. The material of the machine which contact the liquid are all made of stainless steel. It meets the GMP standard.
5. It equipped with the regulating handle, which can adjust the filling speed freely, the filling precision is high.
6. The machine is drip-proof, avoid drawing, and equipped filling lifting device.
|

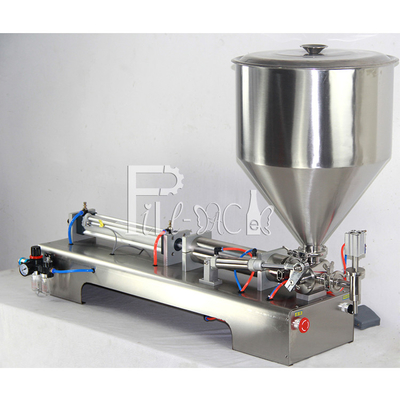

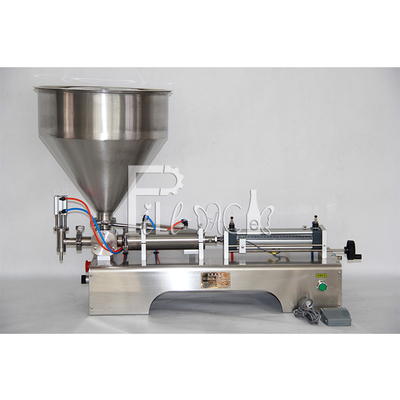

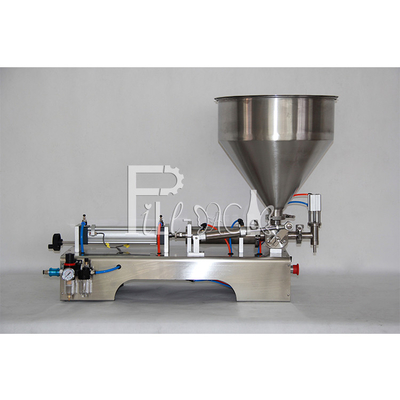

Single head viscosity filling machine |

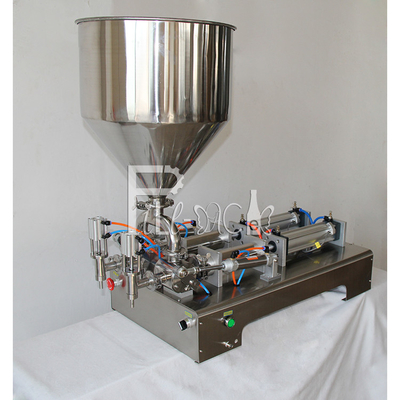

Double heads viscosity filling machine |
 |
|
Parameters:
| Model | Single head viscosity filling machine | Double heads viscosity filling machine |
| Voltage | AC220/110V 50/60HZ | |
| Power | 20W | 50W |
| Air pressure | 0.4-0.6mpa | |
| Filling speed | 5-25BPM | 10-50BPM |
| Filling precision | ≤±1% | |
| Material | SUS304 | |
| Hopper volume |
3-30ml; 10-100ml; 30-300ml; 50-500ml:30L 100-1000ml; 500-3000ml; 1000-5000ml:40L |
|
| Filling range options |
3-30ml; 10-100ml; 30-300ml; 50-500ml; 100-1000ml; 500-3000ml; 1000-5000ml |
|
| Air consumption | ≥0.008m³/second | |
Packing details:
| Model | Filling range | Packing | Dimensions(mm) | Weight(kg) |
|
Single head viscosity filling machine |
3-30ml |
Carton packing |
970*380*350 | 25 |
| 10-100ml | 970*380*350 | 25 | ||
| 30-300ml | 970*380*350 | 25 | ||
| 50-500ml | 970*380*350 | 28 | ||
| 100-1000ml | 970*380*350 | 30 | ||
| 500-3000ml | 1170*380*350 | 33 | ||
| 1000-5000ml | 1380*400*380 | 40 | ||
|
Double heads viscosity filling machine |
3-30ml |
Carton packing |
970*630*350 | 45 |
| 10-100ml | 970*630*350 | 45 | ||
| 30-300ml | 970*630*350 | 48 | ||
| 50-500ml | 970*630*350 | 50 | ||
| 100-1000ml | 970*630*350 | 50 | ||
| 500-3000ml | 1170*630*350 | 65 | ||
| 1000-5000ml | 1380*680*380 | 85 |

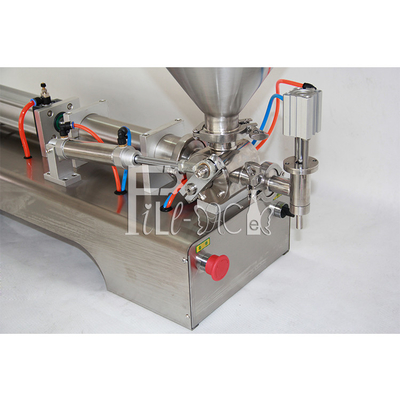

Details:
|
|
|
|
|
|
Optional:
|
|
|
Stirring function |
Heating function |
Electric Circuit Diagram for reference:
Air Circuit Diagram for reference:
