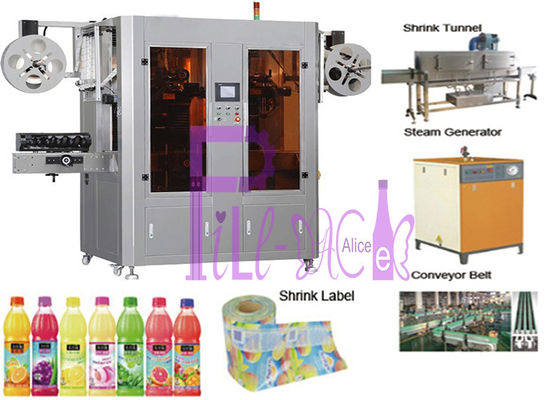

Automatic Double Head PET Bottle Labeling Machine For Both Body Labels
Product Details:
Place of Origin: | ZhangJiaGang,JiangSu,China |
Brand Name: | Fill Pack |
Certification: | CE.ISO9001 |
Model Number: | TB-100S |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD$8900-10,900/set |
Packaging Details: | sea worthy packing |
Delivery Time: | 5 - 15 days |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 15 sets/month for pet bottle labeling machine |
Detail Information |
|||
Power: | 4KW | Key Word: | Pet Bottle Labeling Machine |
---|---|---|---|
Capacity: | 30000BPH | Applicable Label: | PVC、 PET、 OPS |
Automatic Grade: | Automatic | Material: | Stainless Steel |
Warranty: | 12 Months | ||
Highlight: | automatic labeling machine,sticker labeling machine |
Product Description
Automatic Double Head PET Bottle Labeling Machine For Both Body Labels
Product Description
This pet bottle labeling machine is made out of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.The whole machine is divided into the host part and the steam shrink part.This machine is set to the same type of two models to increase productivity, but also can be applied to a bottle mark, a bottle standard.All electrical equipment is installed in the rear.
The main configuration table and function of pet bottle labeling machine
Name |
Function |
Material offering group |
Offer motor for label carrier |
Shelf group |
Install volume label device |
Platform elevating group |
Adjust the height of host automatically according to the bottle shapes |
Brush-off group |
Brushing the cutted label on the bottle |
Cutter group |
Cutting off the labels which are sent to Center guide pin |
Cutter controlling group |
Control the cutter operational site |
The back drive group |
Offer motor for label of center guide pin |
The front drive adjusting group |
Grasping the center guide pin |
Frame of Electric eye group |
Adjust the best cutting position of the label |
Electric eye of bottle lighting detecting group |
Adjust the sleeve labeling position of bottle body |
Hairbrush group |
Brush the label which cannot sleeve properly to the right place |
Bottle positioning group |
Make bottle stable, control sleeve labeling position |
Center guide pin group |
Make volume label distracted for transfer and cut easily |
Bottle entering screw bolts |
Separate bottle on equal distance in order to sleeve labeling accurately |

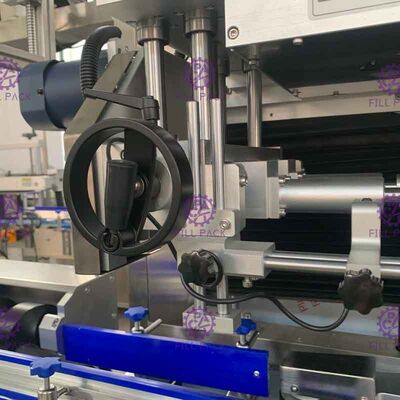

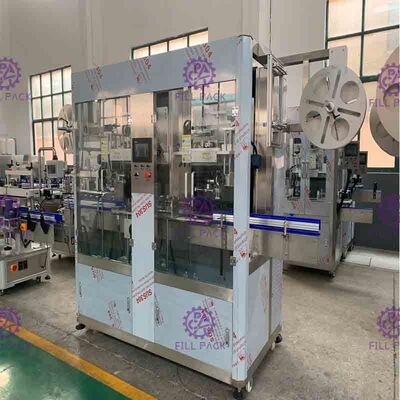

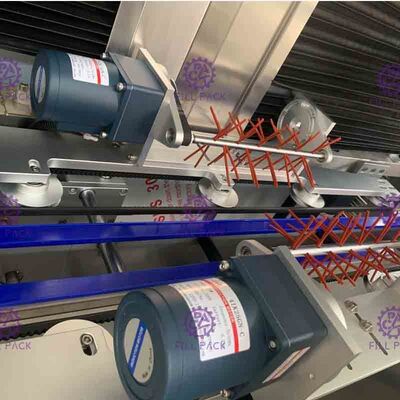

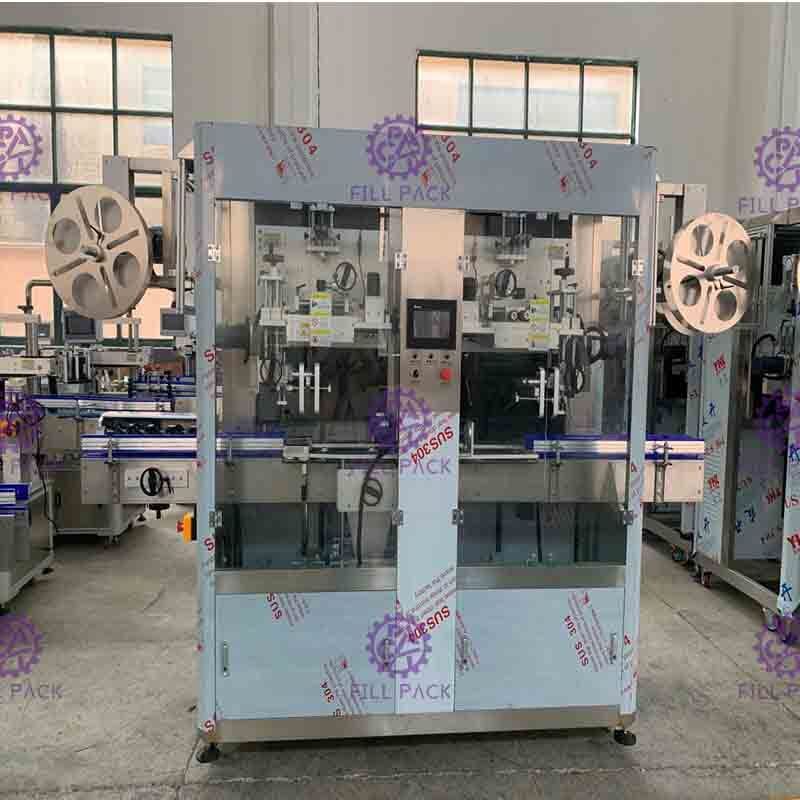

Detail Images for pet bottle labeling machine:
Parameters:
No. |
Item |
Technical data |
1 |
Import Power |
6.0KW |
2 |
Import Voltage |
∮3, 380/220 VAC |
3 |
Capacity(production speed) |
500 bottles per min |
4 |
Dimension of Host Machine (mm) |
L4000 × W850 × H2200 |
5 |
Applicable Diameter Container (mm) |
φ28 mm ~ φ120 mm |
6 |
Applicable Label Length (mm) |
30~250 mm |
7 |
Applicable Thickness Label (mm) |
0.03~0.13 mm |
8 |
Applicable Inner Diameter of Paper Tube |
5''~10'' |
Label shrinking tunnel:
The steam tunnel is made of SUS304 stainless steel. Tunnel type is good for steam radiation inside but will not discharge easily. It is good for steam saving. The equipment is with steam control valve to avoid steam blow wastage. Inside tunnel, there are steam generating pipes, with pipes position adjustment, can be suitable for different shape and different size of bottles.
Parameters:
Power:380V, 50/60HZ 0.25 kw
Dimension: 3000*450*1800mm
Pressure: 0.4-0.7Mpa
Payment
30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% T/T before shipment.
Company Information
ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.
FILL-PACK product such as pet bottle labeling machine is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.
Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 30 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.
