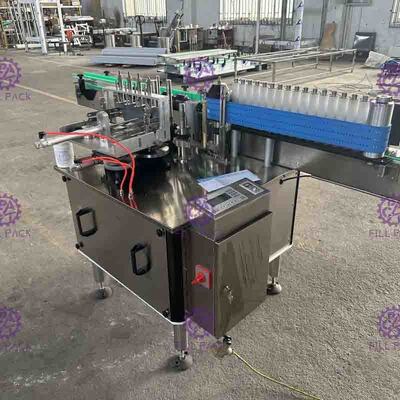

Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit

Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit

    • Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit
    • Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit
    • Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit
    • Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit
  • Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit

    Product Details:

    Place of Origin: ZhangJiaGang,JiangSu,China
    Brand Name: Fill Pack
    Certification: CE,ISO
    Model Number: CGL-80

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD$3500-5500/set for glass bottle labeling machine
    Packaging Details: sea worthy packing
    Delivery Time: 5 - 15days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 sets/month
    Contact Now
    Detailed Product Description
    Voltage: 220V/380V 50HZ Dimension: 2100*1100*820mm
    Power: 1.5kw Weight: 550Kg

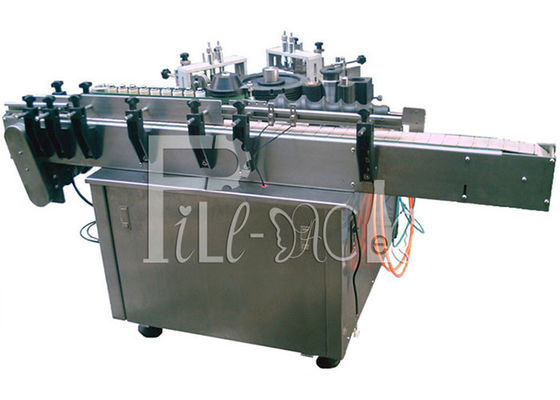

    Description of Linear type Automatic Cold Glue labeling machine

    Assuring You of Our Best Machines

    >>>The scope of application:
    The machine can do high-speed automatic round labeling for round bottles in wine, drink, medical, cosmetics and other light industry.

    >>>Principle:
    ★ The working principle of the design of this machine is as the following:
    1,The fan shape rotating bar which sticks the label gets a little glue from the rubble wheel and rotates to the label transmission to get a piece of label adhered.
    2, And it continually rotates to the place of the sucking paper wheel with the vacuum, and the label is taken off by the doffing label claw. At the same time the label is transferred to the conveying paper belt with the vacuum.
    3, The label is conveyed into the sticking label area on the conveying paper belt with the sucking capability of the vacuum and is adhered on the bottle which is conveyed by the chains. It accomplishes the producing process by the circled actions.
    Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit

    >>>Equipment Characteristics:
    ★ This is a labeling machine which can label body, head and back. It has the characteristics, like reasonable structure, small area, the steel less and non-metallic surface. The whole machine adopts PLC control system, so that the whole stable, high-speed.
    ★ The machine adopts sensor detection, with accurate labeling and high accuracy. It also has no bottles no labeling, no labels automatic correction and detection, and any other functions.
    ★ This machine adopts electromagnetic adjustable asynchronous motor and worm gear box as main drive, and equipped with pneumatic and electric control system. So that the machine can be used for continuously variable transmit. It can adjust the speed according to the entering bottles’ quantity, so that to suit the change of production, and ensure the safe running of machine.
    ★ It is easy to change the parts of the machine to suit different kinds of bottles and labels.
    ★ The body and parts are mainly using the anti-corrosion materials, like stainless steel, anti-corrosion alloy, plastic and other high corrosion resistance, casting, carbon steel, aluminum which have multi-layeranti-rust treatment.
    No
    Item
    Parameters
    1
    Labeling precision
    +/-1mm
    2
    Labeling Speed
    60-80 bottles/min
    3
    Power source
    1 PH, 220V, 50HZ~60HZ
    4
    Power consumption
    1.5KW
    5
    Air consumption
    4-6Kg
    6
    Dimension
    2100*1100*820
    7
    Label length
    depending on customer’s label size
    8
    Label width
    30-80mm
    9
    Machine Weight
    550kg

    Components

    1
    Main motor 1pc
    SMC(Regal-Beloit)
    2
    Trun-plate motor and vacuum motor 1pc
    Adeli
    3
    Inverter 1pc
    HOLIP
    4
    PLC 1pc
    Mitsubishi
    5
    Sensor 1pc
    Omron
    6
    Button 1pc
    Schneider
    7
    solenoid valve and cylinder 1pc
    AIRTAC
    If you need shrink adhesive labeling machine, Shrink Sleeve Labeling Machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
    Please find the contact information at contact us.

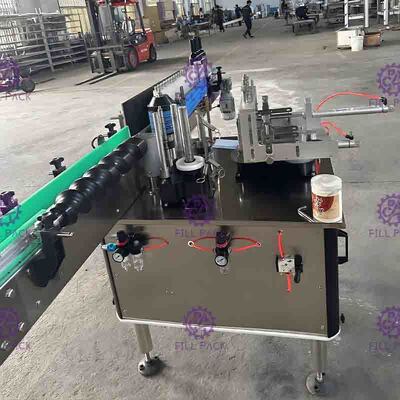

    Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit
    Wine Beer bottle Cold Paper wet glue labeling / labeler machine / equipment / line / plant / system / unit
    We have all kinds of labeling machine
    ★ Our company have all kinds of OPP Hot Glue Labeling Machine, Shrink Sleeve Labeling Machine, Cold Glue labeling machine and adhesive labeling machine.
    ★ How to choose the labeling machine?
    1, Please tell us what kind of labels you use on the bottles?
    2, How many labels you need to stick on one bottle?
    3, What the shape of your bottles are? it would be better if you send me the bottle pictures if convenient.
    4, Conveyor speed (pcs / min)
