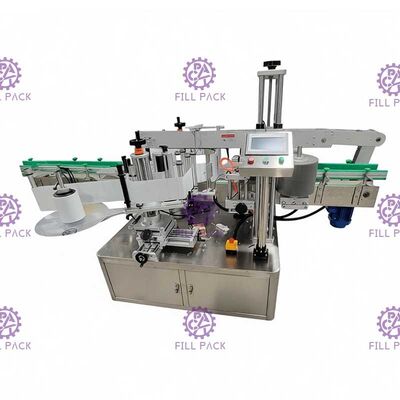

Square Bottle Labeling Machine With Single Side 1000W 220V 50HZ
Product Details:
| Place of Origin: | ZhangJiaGang,JiangSu,China |
| Brand Name: | Fill Pack |
| Certification: | CE,ISO |
| Model Number: | TB630F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD$6000-8000 / set |
| Packaging Details: | wooden case packing |
| Delivery Time: | 5 - 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 sets / month |
|
Detail Information |
|||
| Voltage: | 220V | Power: | 1000W |
|---|---|---|---|
| Frequency: | 50HZ | Device Dimensions (mm) (L × W × H): | 2400mm × 1450mm × 1600mm |
| Conveyor Speed: | 18m/min | Labeling Speed (pcs / Min): | 30 ~ 50pcs/min |
| Weight: | 350kg | Automatic Grade: | Automatic |
| Highlight: | industrial labeling systems,automatic labeling machine |
||
Product Description
New design automatic square bottle labeling machine with single side label
Product Description
The square bottle labeling machine can simultaneously achieve single-sided labeling and labeling features to satisfy the flat bottles, square bottles and bottle shaped single-sided, widely used cosmetics industry, daily chemical industry.The main types of labels are: self-adhesive labels, self-adhesive film, electronic monitoring code, bar code, etc.When the bottle passes the bottle-feeding wheel, it is pressed by the pressure-applying device, and then the bottle is further fixed by the tightening device, so that the labeling stability is further strengthened.Taking into account the characteristics of square bottles (inconvenient to rotate). Use sponge wheel for standard and fixed labels.

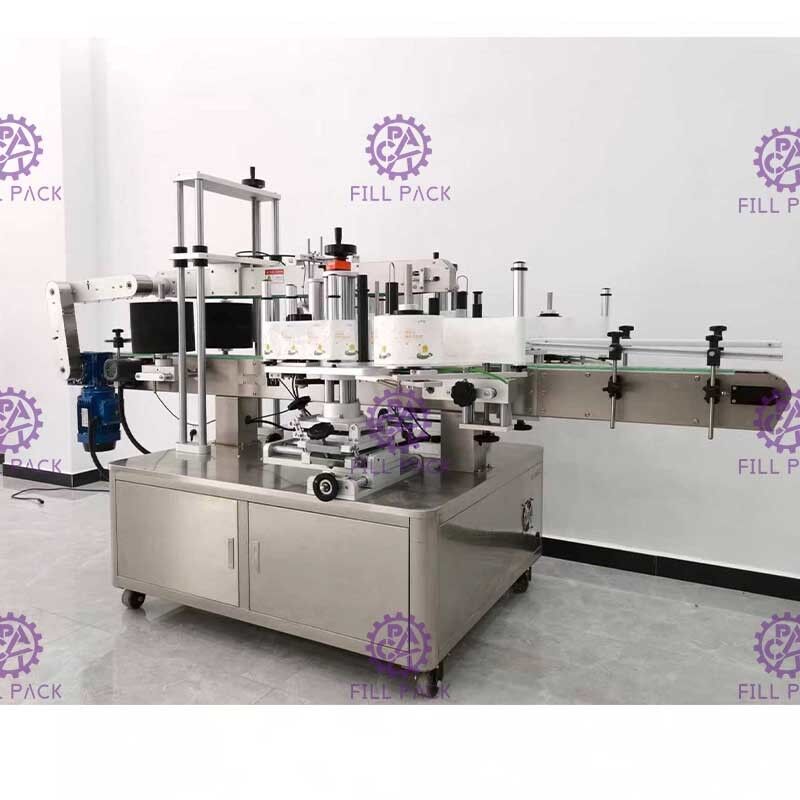

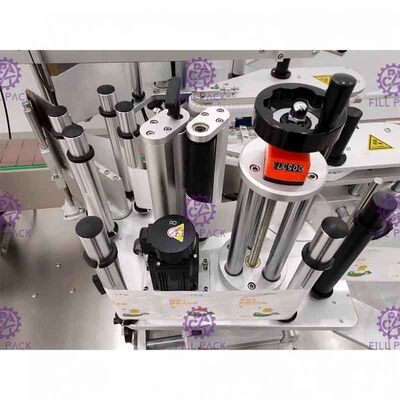

Detailed Image
The square bottle labeling machine parameters:
- Suitable label length (mm): 20mm ~ 200mm
- Applicable Label width (backing paper width / mm): 20mm ~ 150mm
- Applicable Product size (for flat bottle): Length (transport direction): 20mm ~ 250mm
- Width (transport width direction): 30mm ~ 90mm Height: 60mm ~ 280mm
- Labeling accuracy (mm): ± 1mm
- The standard speed (m / min): Stepping: 5 ~ 19m/min
- Labeling speed (pcs / min): Stepping: 30 ~ 50pcs/min
- Conveyor speed (pcs / min): 18m/min
Electrical Components for square bottle labeling machine
|
No |
NAME |
MODEL |
BRAND |
QTY. |
|
1 |
Labeling Motor |
85BYGH450B-2 |
BaiShan-Shenzhen
|
1pc |
|
2 |
Motor driver |
Q2HBCHE88 |
1pc |
|
|
3 |
Bottle transferring motor |
85BYGH450B-2 |
1pc |
|
|
4 |
Motor driver |
Q2HBCHE88 |
1pc |
|
|
5 |
Conveyor motor |
YN90-120 15G30 |
Weitewei-BeiJing
|
1pc |
|
6 |
Conveyor motor gearbox |
1pc |
||
|
7 |
Bottle devision motor |
YN70-15 10G20 |
1pc |
|
|
8 |
Bottle devision motor gearbox |
1pc |
||
|
9 |
Bottle checking electric eye |
FS-V11 |
Keyence-Japan
|
1pc |
|
10 |
Labeling electric eye sensor |
/ |
1pc |
|
|
11 |
Label checking electrical eye |
/ |
1pc |
|
|
12 |
PLC |
DVP-14SS |
Delta-Taiwan |
1pc |
|
13
|
Touch screen |
PWS5600S-S |
Haiteke-Taiwan |
1pc |
Delivery time
The square bottle labeling machine will be made within 25 working days after the bottle design are confirmed.
Payment
30％ T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70％ T/T before shipment.
Warranty
The square bottle labeling machine our offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
please kindly click the play button to watch the video
