Electric Digital Control Liquid Filling Plant Semi Automatic 260BPH
Product Details:
| Place of Origin: | ZhangJiaGang JiangSu China |
| Brand Name: | FILL PACK |
| Certification: | CE , ISO9001 |
| Model Number: | FP-130II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $220-$260/set |
| Packaging Details: | Carton case |
| Delivery Time: | 5 days after deposit receipt |
| Payment Terms: | T/T, L/C, D/A, D/P, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Application: | Liquid | Type: | Filling Machine |
|---|---|---|---|
| Filling Capacity: | 260BPH | Automatic Grade: | Semi-automatic |
| Power: | 60W | Machine Material: | Stainless Steel |
| High Light: | water production line,water filler machine |
||
Product Description
Electric Digital Control Liquid Filling Plant Semi Automatic 260BPH
Product Description
By using microcomputer to control the filling time, motor speed and other factors to achieve a uniform liquid filling method with minimal repeat error.
Performance and Features:
1. The liquid filling plant have imported single-chip motor control, stainless steel housing.composite GMP requirements.
2, LCD liquid crystal display, panel operation more convenient and simple
3. Outlet nozzle anti-drip design, filling high precision, accurate measurement.
4. Automatic counting function, effective control of the number of filling.
Parameters:
| Model | FP-130II |
| Power | 60W |
| Maximum range | 5-3500ml |
| Maximum suction range | 2m |
| Maximum flow | 3.2L/min |
| Repeat the error | <0.5% |
| Anti-drip function | yes |
| Power off memory function | yes |
| Total Weight | 8.5KG |
Instructions:
Bracket installation refer to the above picture installation;

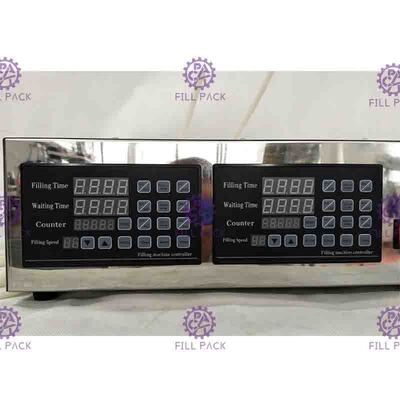

Function introduction:
A, [filling time]: adjust the time of the pump work; control the amount of filling;
B, [waiting time]: the interval between the first and second automatic filling state; used in the automatic filling state;
C, [Counter]: Memorize the amount of production within a certain period of time;
D, [Filling speed]: Adjustment of discharge size;
E, [Filling setting]: Automatically set the filling amount button; when the machine is opened; start the filling setting; when the amount of machine filling reaches the amount you need; in press filling setting; the machine automatically memorizes The middle of the time; so the amount of filling is set;
F, [Manual]: manual state switching and use of electric filling key switch;
G, [Auto]: Automatic state switching and use of automatic filling key switch
Easy to use instructions: start the machine; put the container you need under the discharge port; start the filling setting and start the filling; when the material is filled to the position or weight you need; turn off the filling setting;This machine will automatically memorize your filling volume; then choose [automatic] or [manual] to start work;
The liquid filling plant is guaranteed for one year; the pump is a diaphragm pump; it is a wearing part; and it is found that it needs to be replaced when the flow rate is reduced.
ABOUT FILL-PACK
1, 15 YEARS more producing experience
2, Professional slaes and after sales team
3, Professional engineering team
