Monoblock 2L Automatic Water Bottling Machine Compact Structure

Monoblock 2L Automatic Water Bottling Machine Compact Structure

Product Details:

Place of Origin: jiangsu, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: CGF8-8-3
Application: plastic bottle water
Automation: Auto
Suitable Bottle Size: 0.3-2L PET Bottle
Fuction: 3 in 1 monoblock
Capacity: 3000BPH
Warranty: 1 Year

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 12000-30000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Deposit
Payment Terms: TT & L/C, D/A, D/P, MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

High Light:

2L automatic water bottling machine

,

monoblock automatic water bottling machine

,

2L water bottle refill machine

Product Description

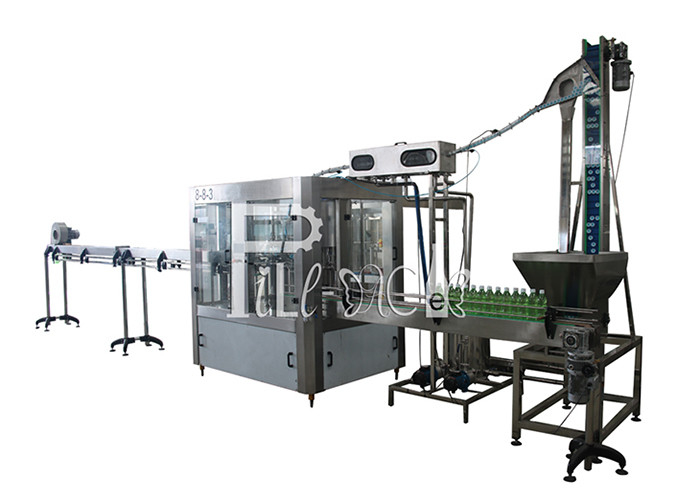

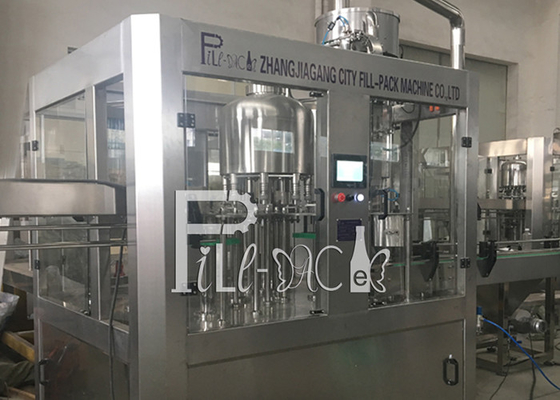

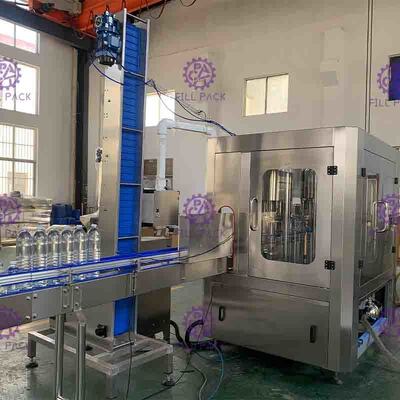

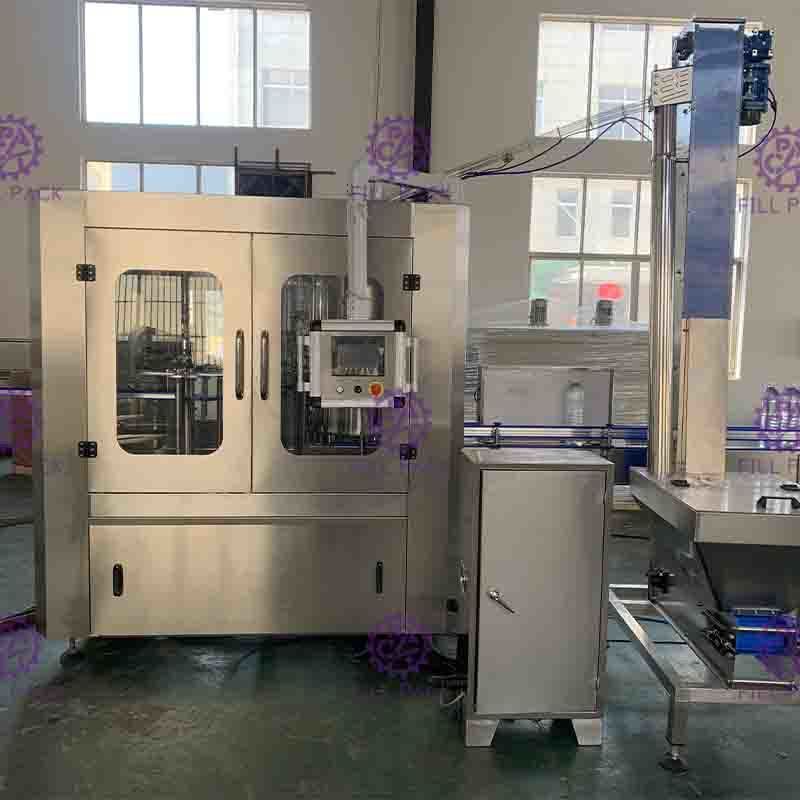

Monoblock 2L Automatic Water Bottling Machine Compact Structure

Automatic small 0-2L bottle water filling / bottling machine / equipment / device / unit / line


Monoblock 2L Automatic Water Bottling Machine Compact Structure 0
Model
CGF 8-8-3
Capacity(B/H)(500ml)
2000-3000
Bottle size
Neck:φ20-50mm;Height:150-320mm
Water pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
Washing station
2
Dripping station
2
Filling precision
<+1MM
Air pressure
0.4Mpa
Air consumption (m³/min)
0.3
Power(kw)
4
Weight(kg)
1500
Dimension(L*W*H)(mm)
1800*1500* 2000



Monoblock 2L Automatic Water Bottling Machine Compact Structure 1

Rinsing part

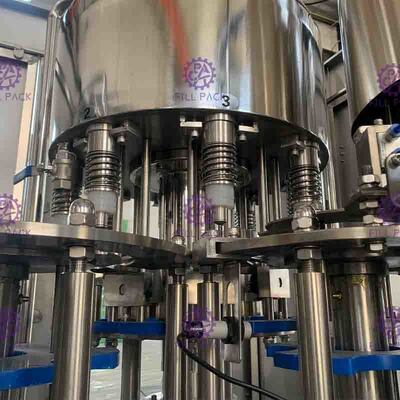

Filling part

Monoblock 2L Automatic Water Bottling Machine Compact Structure 2

Capping part
