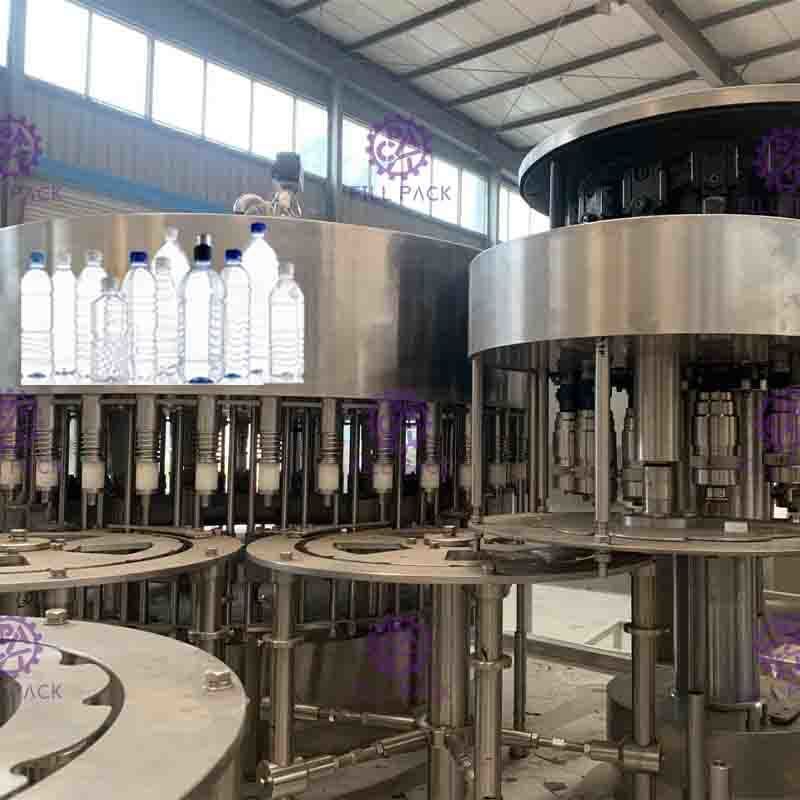

Top Covered Hygeian PET Bottle Water Filling Machine 15000BPH 32 Heads PLC Operation
Product Details:
| Place of Origin: | ZhangJiaGang JiangSu China |
| Brand Name: | FILL PACK |
| Certification: | CE & ISO |
| Model Number: | CGF32-32-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $33000-$40000/set |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days after receiving the deposit |
| Payment Terms: | T/T, L/C, D/A, D/P, , MoneyGram |
| Supply Ability: | 20 Sets Per Year |
|
Detail Information |
|||
| Processing Type: | Water Bottle Filling Machine | Filling Type: | Normal Pressure Filling |
|---|---|---|---|
| Material: | Touch Parts SUS304/SUS316 | Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
| Capacity: | 12000-15000BPH | Control: | PLC Control With Touch Screen |
| High Light: | water bottle filling machine,water filler machine |
||
Product Description
Top Covered Hygeian PET Bottle Water Filling Machine 15000BPH 32 Heads PLC Operation
Description:
1. The filling machine : used for pure water,mineral water , drinking water filling into PET bottles,
or glass bottles.
2. The water filling machine is sutiable for 300-2000ml PET bottle filling, this machine can realize one
machine different size , just change the different star wheels.
3. The water filling machine capacity can be 12000-15000bph .
4. The water filling machine is Wash-filling-capping 3-in-1unit.
5. We strictly manufacture and manage according to IOS9001:2000 System.
Running principle:

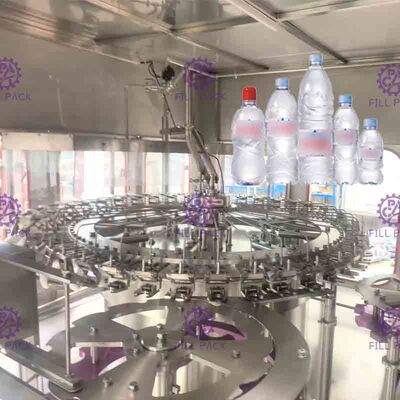

1. Plastic bottles are delivered by air conveyor to 3 in 1 unit of washing part. The bottle neck will be hold
tightly by clamp to upside down the bottles, which will not damage bottle. Then the bottles are
washed by pumped water.
2. After washing, bottles are rotated by the star-wheels to the filling position. Bottle neck is also
hold tightly by clamp. There is a cam to up and down the bottles to make bottle mouth position
with filling head, and then to realize filling. The filling volume and filling time will be pre-set in PLC.

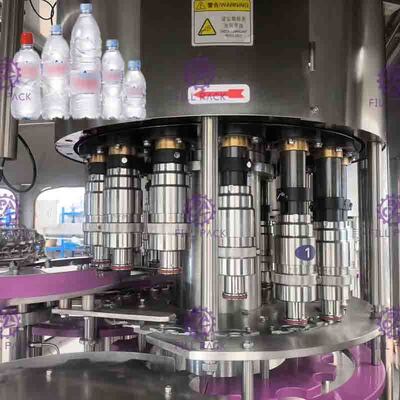

3.After finish filling, bottles are still rotated by star-wheels to capping position. Here we design a bottle
caps unscrambler and an automatic cap dropping to make the caps drop correctly to bottle mouth.
4.And if the cap is upside down or damaged, the machine will automatically delete the caps. After finish all
actions, bottles are delivered to the packaging line.
Characteristics:
| Machine structure |

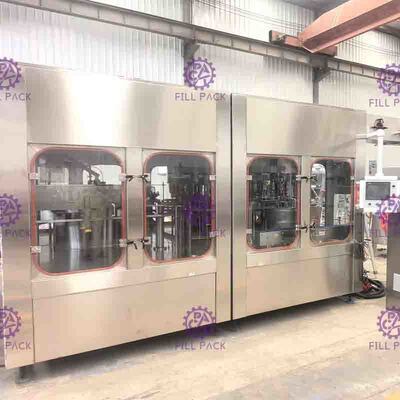

1, Washing, filling, capping in one unit 2, More compact 3, Ring type water cylinder 4, Rotary type filling machine - No residual 5, Top covered by stainless steel 304 6, UV lamb inide for killing bacteria 7, Low labor |
| Filling type& speed |
1, More precise 2, High capacity 3, Normal pressure filling machine |
| Material |
1, Stainless steel 304 2, Contact parts: Stainless steel 316 3, Pipe & valve connection: food grade seamless pipe |
| Controlling system |
1, PLC cntrol 2, Touch screen 3, Solenoid valve 4, Low labor |
Parameter:
| Model | CGF32-32-10 |
| Capacity (B/H) | 12000-15000(500ml) |
| Bottle size | Neck :φ50-100mm:Height:150-320mm |
| Water Pressure | 0.18-0.25Mpa |
| Washing Water consumption(kg/h) | 2000-3000 |
| Washing station | 16 |
| Dripping station | 8 |
| Filling precision | ＜+1MM |
| Air pressure | 0.3Mpa |
| Air consumption | 0.5m3/min |
| Power(kw) | 5 motor |
| Weight(kg) | 5000 |
| Dimension(L*W*H) | 3800*3200*2100 mm |
Customer's service:
1. FILL-PACK company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. FILL-PACK company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .
3. FILL-PACK company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
