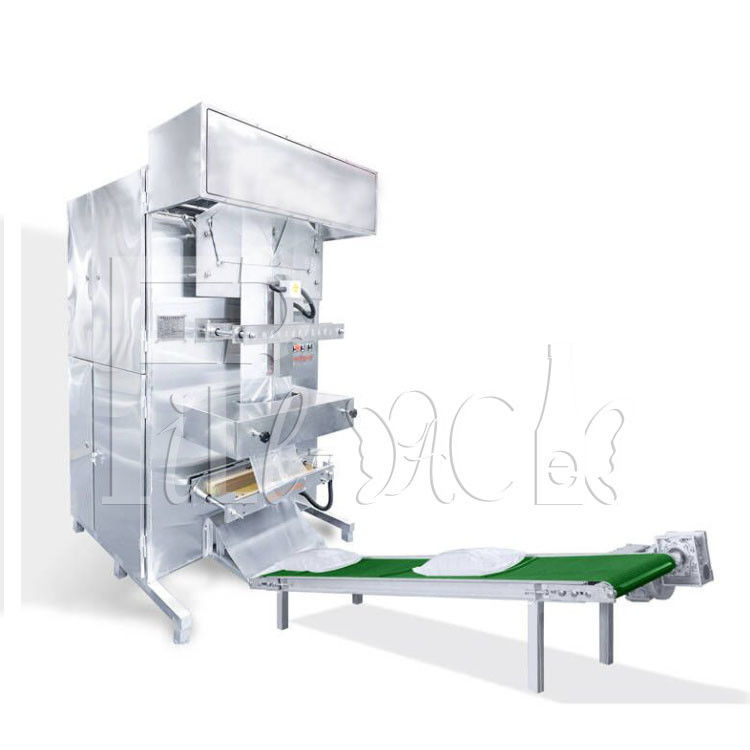

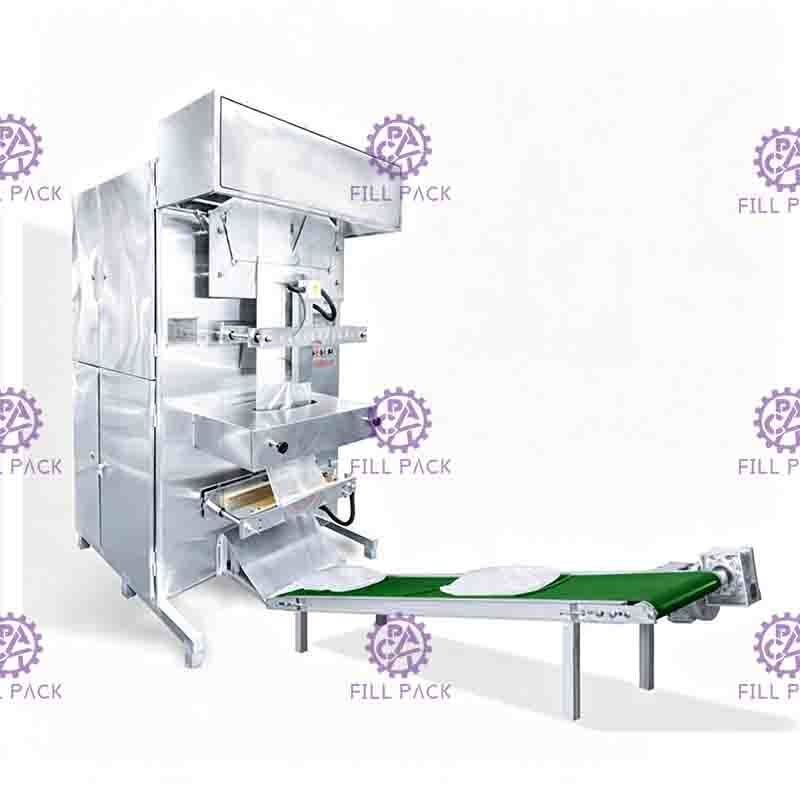

12KG PE Film Small Liquid Honey Sachet Packing Machine 10 Micron
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 |
| Model Number: | 5LA1, 10LA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 7550-9350USD/set |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Model: | 5LA1, 10LA1 | Packing Speed:: | 4-6 Bags/min |
|---|---|---|---|
| Bag Width:: | 270mm Or 380mm | Film Length:: | 150mm+, Adjustable |
| Filling Range:: | 2-12KG | Edge Banding Type:: | Back Sealing Type |
| Total Power:: | 5.5KW | Film Width:: | Max. 820mm |
| High Light: | PE film small sachet packing machine,12KG honey sachet packing machine,10 micron liquid sachet packing machine |
||
Product Description
II Description: 2-12KG PE film Sachet liquid pure water juice milk packing machine
General:

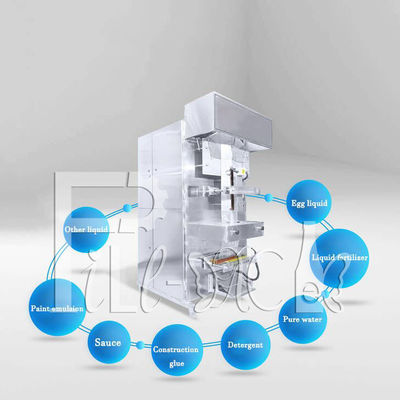

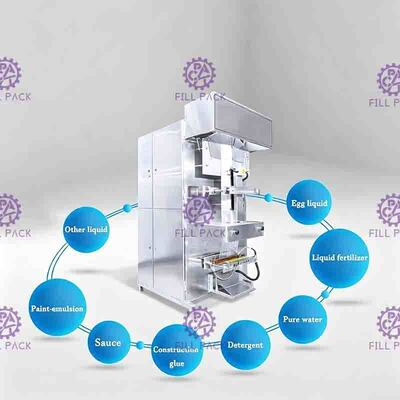

1, Application: Automatic liquid packaging machine is a liquid packaging equipment suitable for all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing
3, Function:The equipment can automatically complete periodic operations such as bag making, filling, sealing, cutting and counting.
4, Whole machine with stainless steel covering, With foot wheels for easy transper;
5, The conveying part can be automatically connected to the packaging operation. It can avoid manual handling and save cost.
III Technical specifications:
| Model | 5LA1 | 10LA1 |
| Bag length (mm) | 150-450 | Adjust by weight |
| Bag width (mm) | 270 | 380 |
| Packaging film width (mm) | Max. 620 | Max. 820 |
| Packing film thickness (micron) | 8-10 | 12 |
| Package weight (kg) | 2-5 | 5-12 |
| Packing speed (bags/min) | 4-6 | 4-5 |
| Power (kw) | 5.5 (380V/220V 50HZ) | 5.5 (380V 50HZ) |
| External dimensions (mm) | 1300*2000*2200 | 1320*2020*2220 |
| Weight (kg) | 380 | 400 |
Packaging Effects:
 |
|
Struction design:
IV Options
Option 1.1.1
| Producr picture: | Technical specifications: | |
|
|
Item Name:
|
Ink jet code printer |
|
Model:
|
OH-338 | |
| Inkjet printing precision: | 200DPI | |
|
Capacity:
|
up to 75 m/min | |
| Dimension: | 347 x220x 100 mm | |
Option 1.1.2
Packaging film parameters:
| Material: | PE-LD |
| Printing: | Customized LOGO |
| Width: |
620mm (suitable for up to and including 5L); 820mm (suitable for 12L) |
| Thickness: | 80micron,100micron,120micron |
| Sachet volume: | From 2000ml to 12000ml |
| Packing detail: | 1ton have 1.72cbm,20' container could load about 15tons. |
| Application: | water pouch packaging, water sachets, pure water packaging, mineral water packaging, flavoured water bag packaging, Juice packaging, water bags packaging |
|
Option 1.1.3
| Producr picture: | Technical specifications: | |
|
|
Item Name:
|
Belt conveyor |
|
Power:
|
1.5KW | |
|
Capacity:
|
50-300mm/s | |
| Dimension: | 2000*600*500mm | |
