Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE & ISO
Model Number: CGF 60-60-15

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $85000-$100000/set
Packaging Details: Wooden Case
Delivery Time: 40 Working Days After Receiving Deposit Payment
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 5 Sets Per Year
Get Best Price Contact Now

Detail Information

Control Type: Smart PLC Control Bottle Size: 500ml PET Bottle
Production Capacity: 30000BPH Electrical Brand: Mitsubishi, OMRON, SIEMENS
Filling Kind: Normal Pressure Filling Machine Material: Touch Parts SUS304/SUS316
Highlight:

water production line

,

water filler machine

Product Description

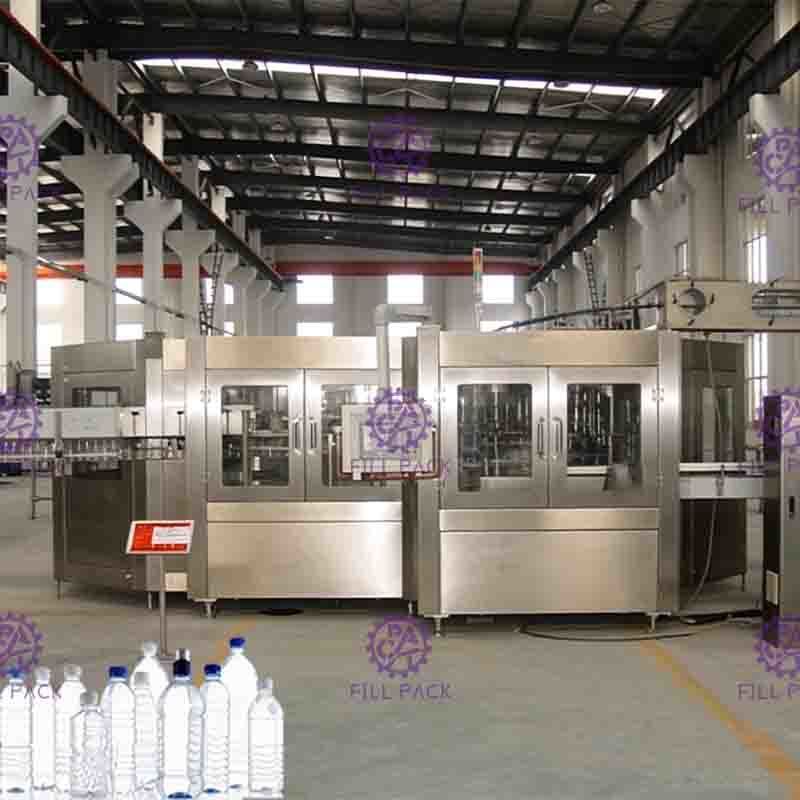

Large Capacity 3 in 1 Water Filling Machine 60 Heads Precise Process



Running principle:

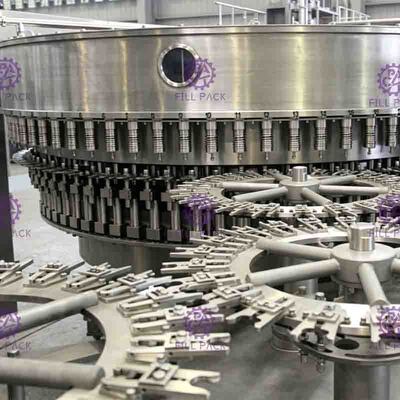

1. Deliver the bottles on air conveyor to 3 in 1 unit of washing part. The bottle neck will be hold tightly by clamp to upside down the bottles, which will not damage bottle. Then the bottles are washed by pumped water.

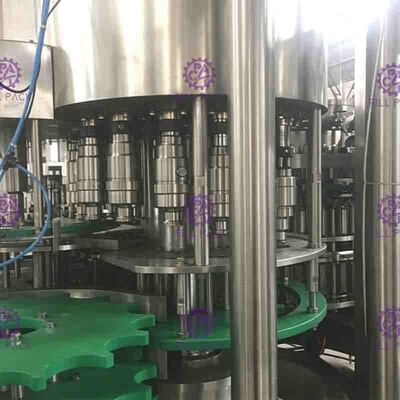

2. After washing, bottles are rotated by the star-wheels to the filling position. Bottle neck is also hold tightly by clamp. There is a cam to up and down the bottles to make bottle mouth position with filling head, and then to realize filling. The filling volume and filling time will be pre-set in PLC.

3.After finish filling, bottles are still rotated by star-wheels to capping position. Here we design a bottle caps unscrambler and an automatic cap dropping to make the caps drop correctly to bottle mouth..If the cap is upside down or damaged, the machine will automatically delete the caps. After finish all actions, bottles are delivered to the packaging line.



Product description:



1. The mineral water filling machine is used in production of non-carbonated drink of minerals and pure water in plastic bottles. Bottle washing, spring water filling and bottle capping are integrated in one machine.

2. The whole machine has scientific and reasonable design, beautiful appearance, complete functions, easy operation and maintenance, a high degree of automation.

3. The most advanced technology Italy and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. Spring cramps are used in the bottle washing process.

4. The empty can be turned over 180 degree along the conveying rail. There two times of internal and external washing, the efficiency of bottle washing is high. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



Main parameters:



Rinsing pressure: 0.25-0.3Mpa

Filling temp: ≤4℃

Filling precision: ≤+1mm

Filling pressure: 0.25-0.4Mpa

Compressed air pressure: 0.4-0.6Mpa

Liquid tank: ring type



Rinsing: bottle neck blocking (Germ tech)

Filling: Constant pressure filling (Germ tech)

Capping: Magnetic screw capping(Germ tech)



Model: CGF60-60-15

Capacity: 25000-30000BPH (500cc)

Applicable bottle : PET bottle PET cap

Applicable filling content: NON gas water

Power: 12.24KW

Dimension: 6500*5250*2500mm

Weight: 10000kg



About our company:



ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.

FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
