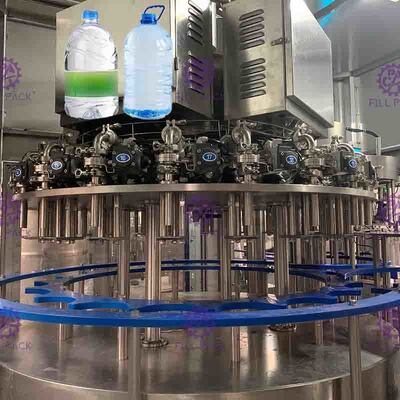

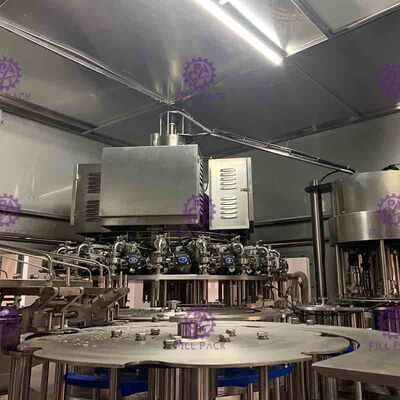

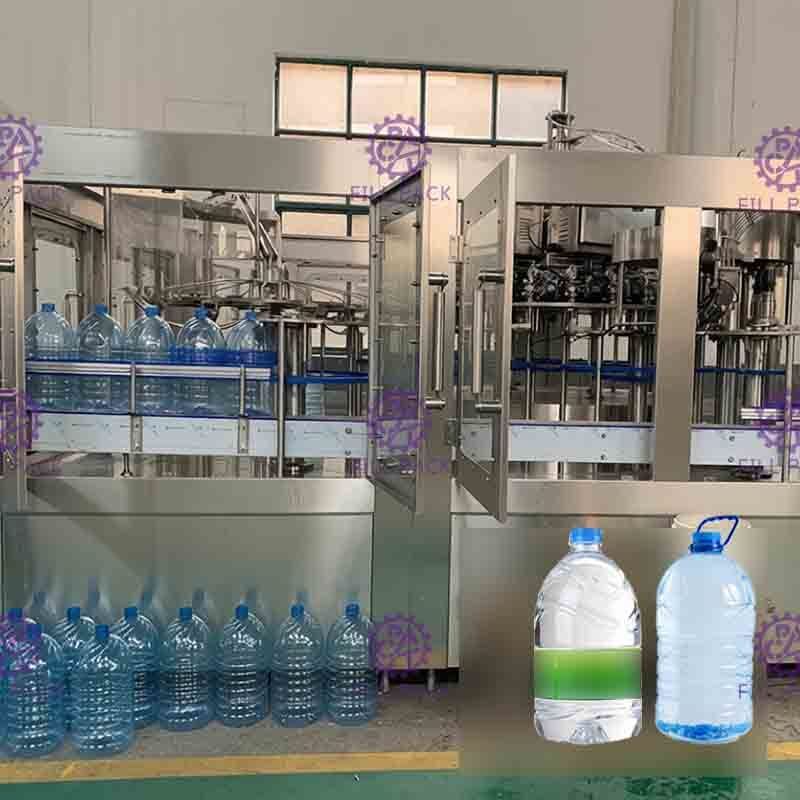

3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant

3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant

    • 3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant
    • 3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant
    • 3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant
  • 3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant

    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE & ISO & TUV & SGS
    Model Number: CGF 12-12-4B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $18000-$22000 USD
    Packaging Details: Wooden Case
    Delivery Time: 30 Working Days After Receiving Deposit Payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 5 Sets Per Months
    Contact Now
    Detailed Product Description
    Type: 3 In 1 Monoblock Bottle Size: 1-10L
    Production: 1500BPH Processing: Japan & Germany
    Material: SUS304/316 Application: Commercial/industrial



    3-in-1 Monoblock 5L Bottle Drinking Mineral Water Filling Plant Normal Pressure



    Brief description:



    1.The big bottle filling plant is used in production of non-soda drink of hot juice and mineral water packed in polyester bottles. Washing, filling and capping are integrated in one machine.



    2.The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.



    3.Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.



    4.The filling by spring type liquid lever controlling filling valve, no dripping. The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve.



    5.The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



    6.There is electrical heating cold-heat tank enclosed in the whole system especially for keeping hot filling temp during hot juice filling. And it can also be stopping heating by easy electrical break down for cold water filling. It do not need extra steam system to work together.



    7.The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.



    8.The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.



    Parameter:



    Transducer FuLing-Taiwan FL-2.2K
    Touch screen Easyview-TaiWan MT6070
    PLC Mitsubishi FXIS-20MR
    Stabilized voltage supply MingWei-TaiWan S-35-24
    Contactor Delixi CJX2-0910
    Approach switch Autonics PR18-8DN
    Air switch Delixi 3P-D20



    Model CGF12-12-4B
    Capacity(B/H)(330ml) 1000-1500 5L
    Bottle size Neck:φ20-50mm;Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 2
    Dripping station 2
    Filling precision <+5MM
    Air pressure 0.4Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 4
    Weight(kg) 2500
    Dimension(L*W*H)(mm) 2500*2100* 2100/2450mm


    Installation & adjustment:



    After the equipment are arrived at the customer’s site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians’ guidance. Costs of the staff are decided at last.



    Shipping:







    3 In 1 Monoblock 5L Bottle Drinking Water Plant , Mineral Water Filling Plant
