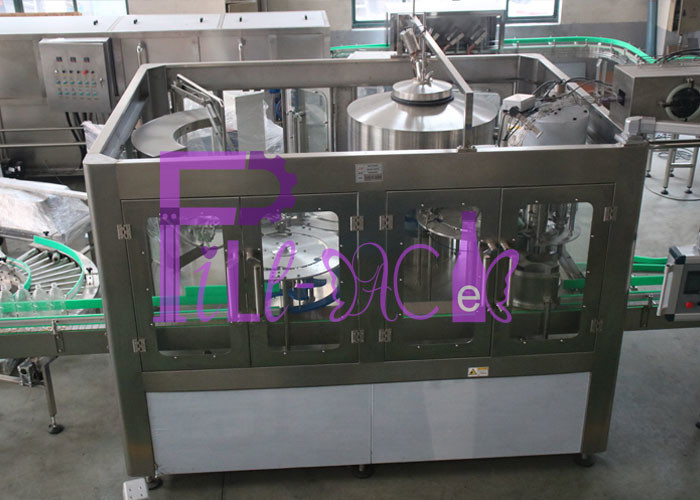

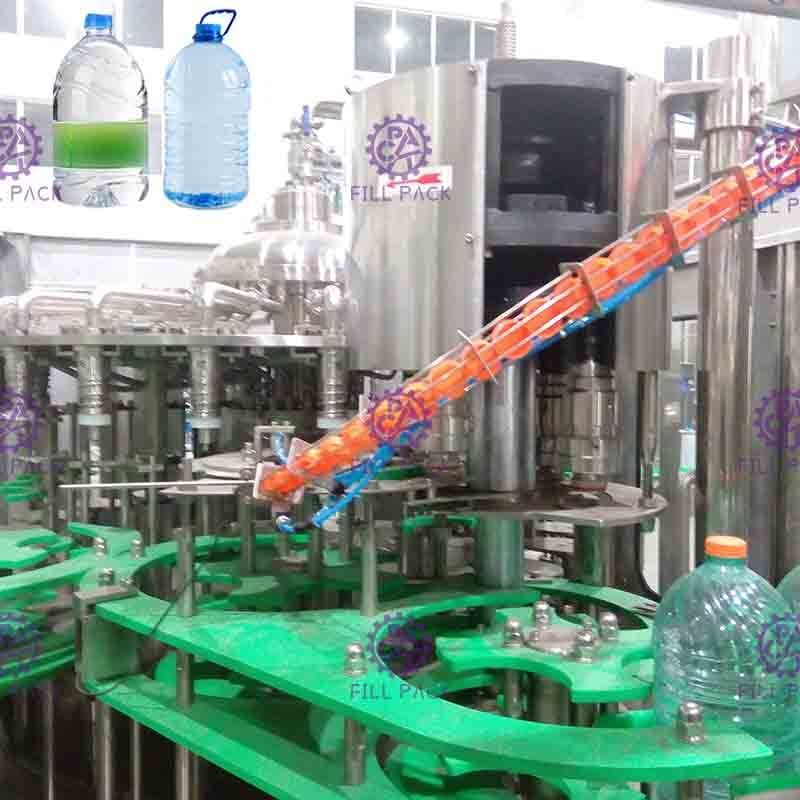

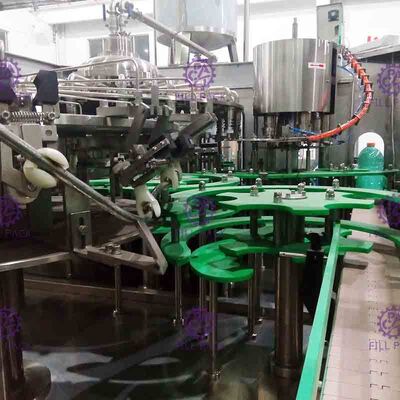

24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure

24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure

    • 24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure
    • 24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure
    • 24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure
    • 24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure
  • 24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure

    Product Details:

    Place of Origin: ZhangJiaGang JiangSu China
    Brand Name: FILL PACK
    Certification: CE & ISO
    Model Number: CGF 24-24-8B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD $40000-$45000/set
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Deposit Payment
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 10 Sets Per Months
    Contact Now
    Detailed Product Description
    Machine Type: 3 In 1 Monoblock Bottle Size: 3-10L
    Production: 3500BPH Processing: Japan & Germany
    Material: SUS304/316 Application: Drinking Water



    24 Heads Drinking Water Filling Plant Bottling Machine Large Capacity Normal Pressure



    Quick Detail:



    Machine:  5L Bottle Automatic Water Filling Machine Monoblock

    Applicative Bottle:  PET bottle

    Applicative cap:  alstic screw cap

    Applicative volume: 3-10L

    Applicative liquid:  non gas water
    Production Capacity:  3500bph
    Machine construction:  washing filling capping 3 in 1

    Advantage:  USA - Germany technology

    Service:  engineers availble to service Machinery overseas



    Parameter:



    Model CGF24-24-8B
    Rinsing Head No. 24
    Filling Head No. 24
    Capping Head No. 8
    Rated Capacity (500ml) 3500-4500BPH
    Overall Size 2750*1180* 2400mm
    Weight 4.0T
    Power(KW) 4.8kw
    Rated Voltage Customized


    The capping part:



    This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.

    Characteristic of the screwing capper as follows:

    1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.

    2) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing by cap loading system.

    3) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.

    4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.

    5) A bottle inlet detect switch is settled on the screwing capper.

    6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.



    Our service:


    1.installation&commissioning

    After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed



    2.Quality assurance

    The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.



    3.Training

    We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.



    Customer photo:

    24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure

    24 Heads Drinking Water Bottling Plant Large Capacity Normal Pressure
