Complete line include Juice Filling Machine and mixing processing packing labeling
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | KLCGF18-18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | TT & L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Weight: | 5000-7000 Kg | Dimension(L*W*H): | 2800*2150*2300 Mm |
|---|---|---|---|
| Filling Pressure: | 0.1-0.35Mpa | Automatic Grade: | Automatic |
| Bottle Type: | PET Plastic Bottle | Condition: | New |
| Material: | SUS304 | Filling Precision: | ≤+/-1mm(liquid Level) |
| Processing Types: | Granular Juice Processing Filling Packing | Voltage: | 380V/220V 50HZ |
| Filling Material: | Juice With Paste Granule | Capacity: | 5000-7000BPH |
| Control: | PLC Control With Touch Screen | Suitable Bottle Size: | 0.3-2L PET Bottle |
| Cap Style: | Plastic Screw Cap | Warranty: | 1 Year For Spare Parts |
| High Light: | monoblock Juice Filling Machine,SGS high speed filling machine,0.35Mpa Juice Filling Machine |
||
Product Description
Complete line include Juice Filling Machine and mixing processing packing labeling
Complete line include Juice Filling Machine and mixing processing packing labeling
Granular Juice Processing System

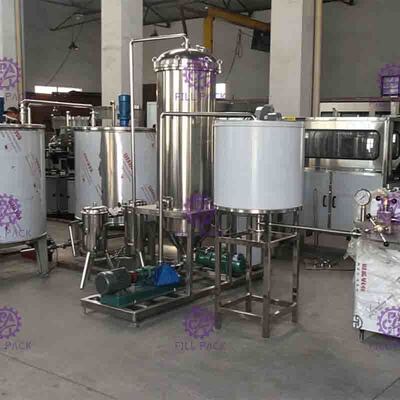

1, Juice batching system: sugar pot, batching tank, duplex filter, homogenizer, vacuum degasser, tubular ultra-high temperature sterilizer, heat preservation tank.
| Washing Filling Capping 3-in-1 in the Granular Juice filling line | |||||
| Model | KLCGF12-12-4 | KLCGF18-18-6 | KLCGF24-24-8 | KLCGF32-32-12 | KLCGF40-40-12 |
| Capacity | 4000BPH | 5000-7000BPH | 8000-12000BPH | 12000-15000BPH | 15000-20000BPH |
| Bottle shape | (Bottle Diameter):50-110mm (Height):160-320mm | ||||
| PET bottle | PET screw | ||||
| Filling precision | ≤+/-1% | ||||
| Filling pressure | 0.15-0.35MPa | 0.15-0.35MPa | 0.15-0.35MPa | 0.15-0.35MPa | 0.15-0.35MPa |
| Rinsing pressure | 0.2-0.25MPa | 0.2-0.25MPa | 0.2-0.25MPa | 0.2-0.25MPa | 0.2-0.25MPa |
| Power | 4.4Kw | 4.4Kw | 5.2Kw | 6.2Kw | 7.8Kw |
| Size(mm) | 2100*1750*2200 | 2800*2150*2300 | 3100*2450*2300 | 3800*2800*2500 | 4100*3000*2500 |
| Weight(Kg) | 3500 | 5000-7000 | 8000-12000 | 12000-15000 | 15000-20000 |
| If you need non-granular juice filling line, please check them on our website or contact the sales consultant directly. | |||||
Water treatment system
★ Capacity range: 250L—30T per hour can be chosen.
Vacuum degasser
★ After degassing, the juice beverage can reduce or avoid the oxidation of juice components, and reduce the change of color and flavor of juice.
Homogenizer
★ The shelf life is also improved, 3-5 times longer than the original. The products are of good quality.

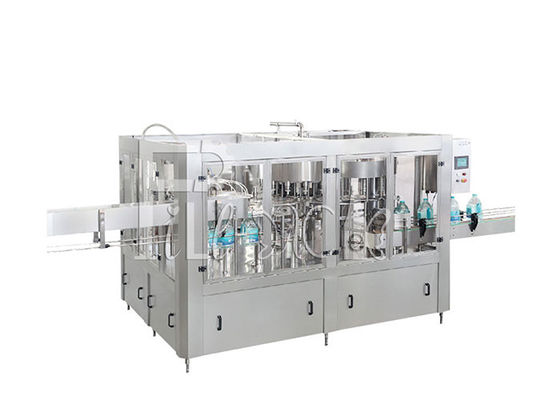

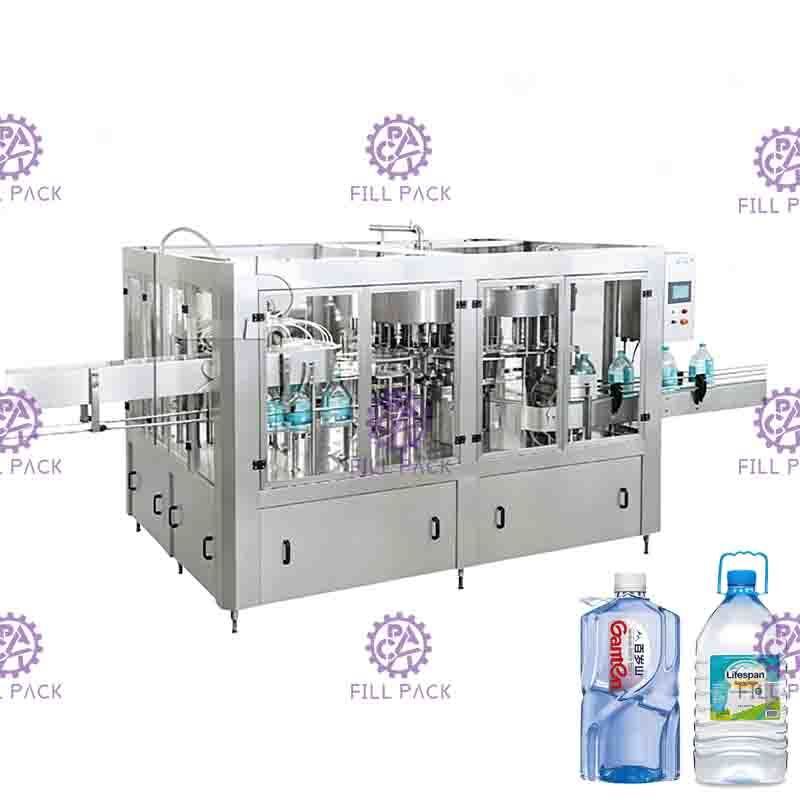

Washing Filling Capping Heads
★ Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.
★ The head of filling machine is made of better stainless steel, which is firm and endurable.

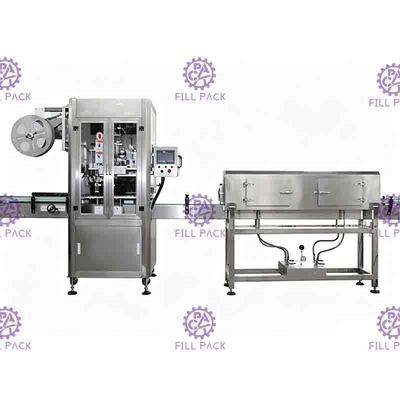

Labeling machine with code printer
Film shrinking packing machine
★ How to choose the machine? You need to tell us what kind of film you need and what kind of bottle arrangement you need.
