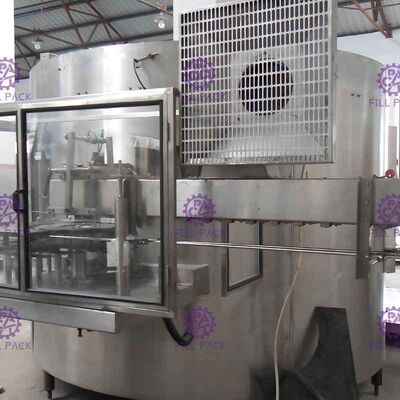

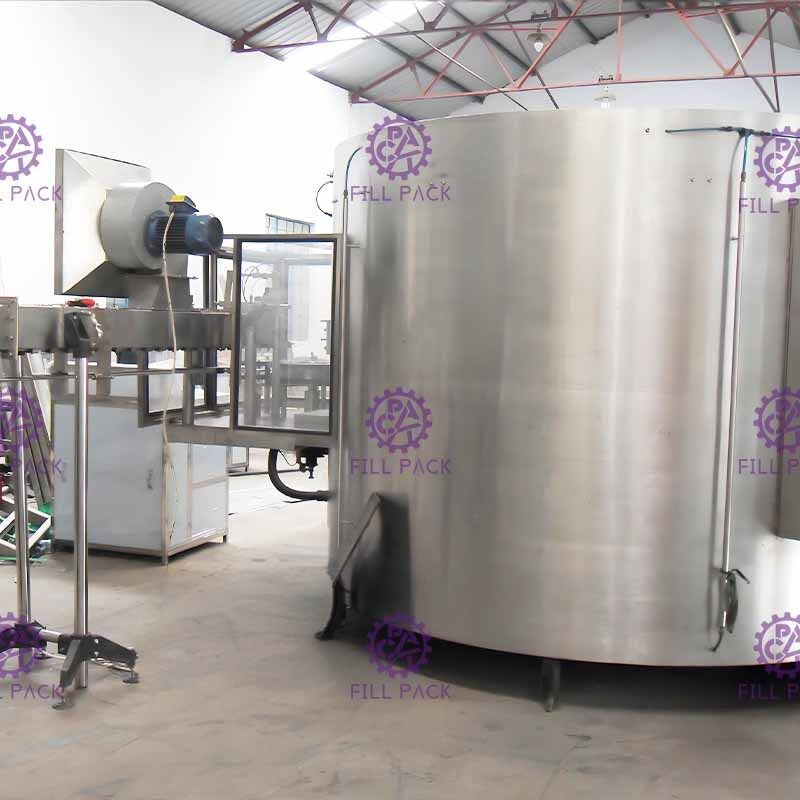

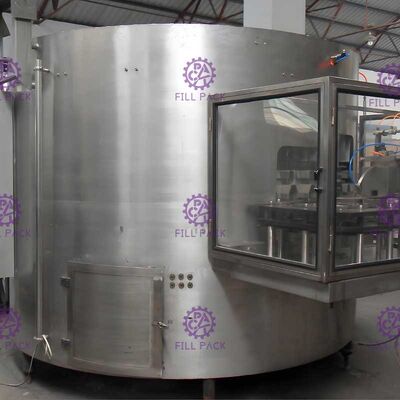

Industrial Plastic Bottle Sorting Machine / Bottle Unscrambler PLC Control

Industrial Plastic Bottle Sorting Machine / Bottle Unscrambler PLC Control

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: LP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

High Light:

Bottle Sorting Equipment


Bottle Unscrambler

Product Description


Industrial Plastic Bottle Sorting Machine / Bottle Unscrambler PLC Control



Quick Detail:


1, Capacity: up to 20000BPH

2, Automation: Automatically PLC control

3, Material: SUS304

4, Bottle type: Plastic bottles from 500ml - 2L

5, Operation mode: Automatic mode & manual mode





The automatic bottle sorting machine is used to load the bottles into filling machine by air conveyor. Manually load bottles into the hopper, and then the bottle sorting machine will arrange the bottle and output one by one without crash.


The bottle sorting machine can be connected to the prodution line directly such as beverage filling machine. The capacity is from 4000BPH to 30000BPH. The speed is controlled by PLC. All the electric control and pneumatic components are world famous brand such as SMC / Festo, Mitsubihsi, Omron, Panasonic and etc.





- Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur;

- The bottles are neck locked through the air conveyor so as to avoid overtuen in delivery;

- Dilapidated bottles will be eliminated by a special devide;

- Maintenance doors and mould replacement door provided;

- A lock detector is equipped for alarming; when locked, the machine will automatically stop;

- A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles;

- Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency;

- Mitsubishi, Omron and Siemens provide the main electrical components like transducer, PLC, touc screen, sensor, relay etc.





The automatic bottle sorting machine is used to arrange disordered plastic bottle to production line. It can connect to different production line including mineral water line, food production line, dairy production line, medical production line and chemical production line and etc.



Working principle and diagram:

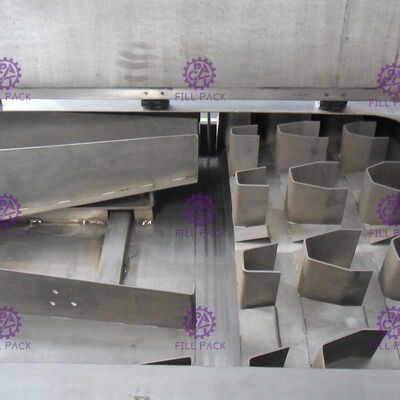

When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower ,and then fall into bottle ascending devices .The bottle ascending devices will push bottles into bottle dropping grooves under the action of cam . Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.



Specifications & Electric components


Model LP-12 LP-14 LP-16 LP-18 LP-21 LP-24 LP-30
Output (BPH) 6000-8000 8000-10000 10000-12000 18000-20000 22000-25000 28000-30000 33000
Mainpower 1.5kw 1.5kw 1.5kw 3kw 3kw 3.7kw 3.7kw
Suitable bottle (D*H)(mm) (50-90)*(165-290)
Electric sensor Omron
Relay Siemens



Competitive Advantage:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
