    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: LP-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Sea worthy package
    Delivery Time: 35-40 days after deposit receipt
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1 set / month
    Contact Now
    Detailed Product Description
    Weight: 4000kg Power: 2.2kw
    Packaging Material: Wooden Case Machine Type: Automatic
    Capacity: 10000BPH Bottle Type: PET Bottles

    plastic bottle distributing machine / equipment / line / plant / system





    Brief Introduction

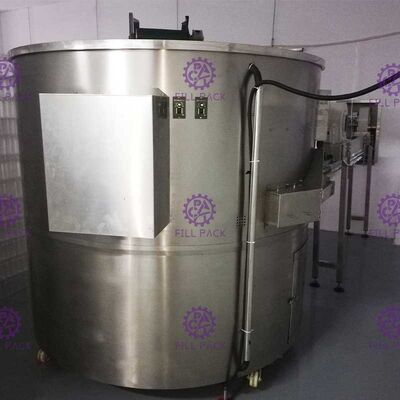

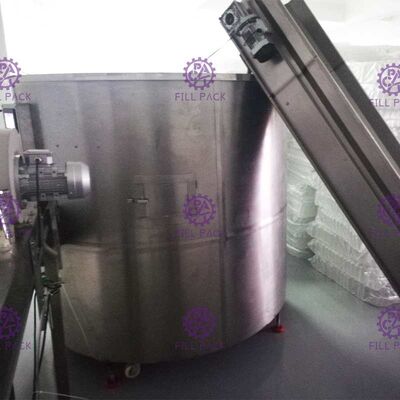

    The main machine is in round barrel framecase with adjustable stand support, the stand support is used for machine height and balance adjustment. There is one circumrotating cylinder inside the framecase, bottle dropping groves are fixed outside, same qty. of bottle ascending-descending devices are fixed inside .In the center of the machine ,there is one stable umbrella shape tower.



    Working principle of cap elevator

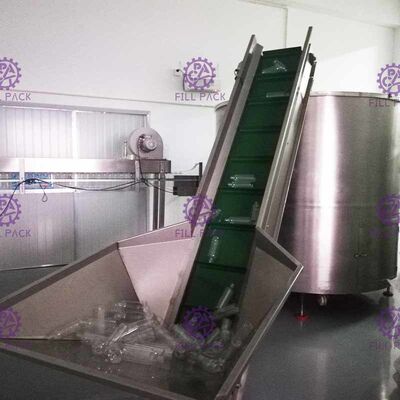

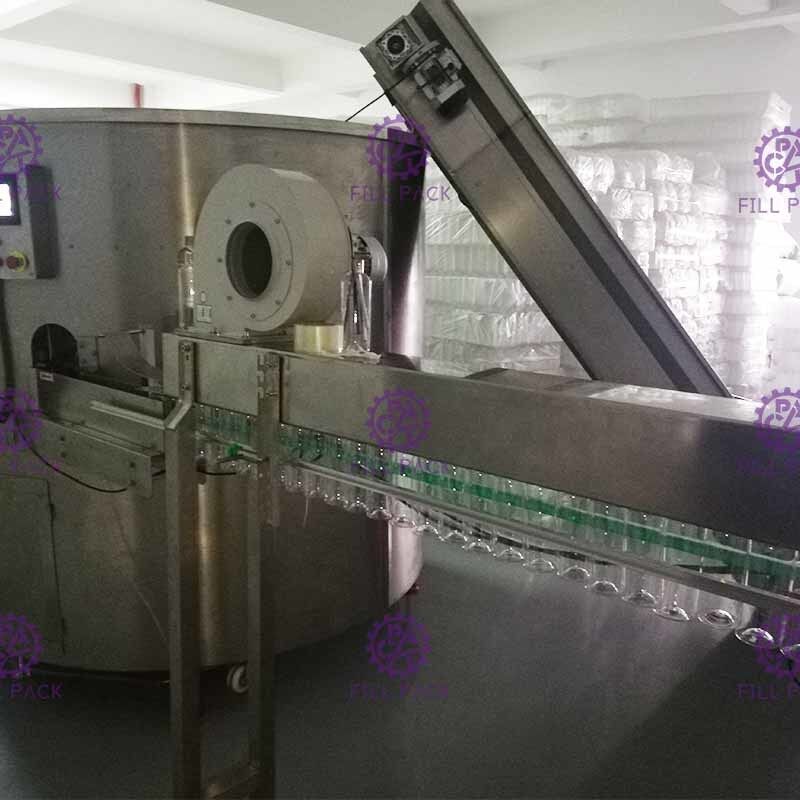

    When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower ,and then fall into bottle ascending devices .The bottle ascending devices will push bottles into bottle dropping grooves under the action of cam . Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.



    Characters

    1. Main motor is in frequency control;
    2. The machine is using twice bottle pressing and bottle sorting construction, it will reduce the possibility of wrong bottle dropping , and will enhance bottle sorting efficiency;
    3. Special designed bottle dropping groves can be suitable for bottles with different length,only need to do little adjustment to bottle dropping grooves when change bottles;
    4. There is mould changing window in the middle of framecase ,it is or mould change and jam clearance if any ;
    5. There is repair window set under the framcase ,it is for techinician go inside for repair;
    6. There is manual working process set inside ,so it will be easy for checking and repair ;
    7. Protection system is set :when the mould change window or repair window is open , the machine can not start .The machine can only be controlled by manual process under this situation;
    8. There is bottle jam monitor on bottle-out planet wheel, it will protect machine;
    9. There is bottle monitor on top of umbrella shape tower, it will control the start and stop of bottle elevator;
    10.Coversed bottle will be eliminated from bottle-out planet wheel from he opposite position of air conveyor ;
    11. Pressure switch and switch on value is set with air channel system,the machine will not start without compress air connection .Switch on value and machine work together will save air consumption;
    12. There is jam elimination device on the start end of air conveyor, the device is drived by cylinder.When there is bottle jam , the device will jam bottle automatically to avoid damage of machine;



    Parameters
    Working positions
    12
    Capacity
    6000-8000BPH
    Air pressure
    0.7Mpa
    Air consumption
    2M3/min
    Applicable bottle diameter
    50-96mm
    Applicable bottle height
    160-300mm
    Main motor
    2.2 kw
    Lifting motor
    0.55kw
    Blow motor
    2.2kw(option)



    Plastic Bottle Distributing Machine / Equipment / Line / Plant / System

    Plastic Bottle Distributing Machine / Equipment / Line / Plant / System

    Plastic Bottle Distributing Machine / Equipment / Line / Plant / System
