Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line

Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line

    • Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line
    • Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line
    • Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line
    • Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line
  • Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: ZhangJiaGang City, JiangSu Province, China
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: RO-6000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case pacakge
    Delivery Time: 15-20 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Raw Water Conductivity: <200us/cm Rated Inlet Water Flow Rate: 2.5
    Dimension(L*W*H): Customized Condition State: New
    Guarantee Time: 1 Year Capacity: 6000LPH

    Description of our our 6000LPH RO water treatment machine



    Technological process flow of 6000LPH RO water treatment machine:

    1, First stage pretreatment.(Sand filter)


    2, Second stage pretreatment (Carbon filter)

    3, Third stage pretreatment (Sodium ion exchanger)


    4, Fourth stage pretreatment (Precision filter)
    Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.

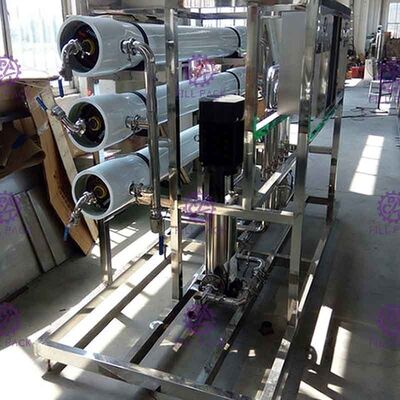

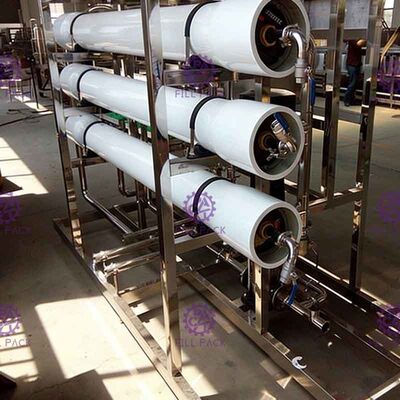

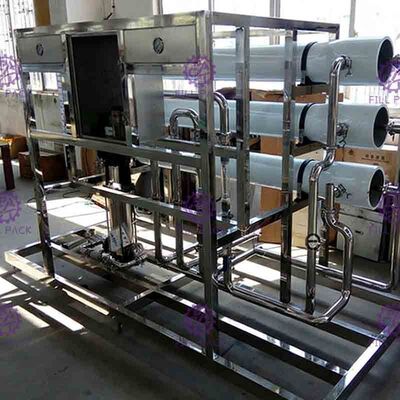

    5, RO system
    The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.


    Pure Drinking / Drinkable water RO/ Reverse Osmosis treatment equipment / plant / machine / system / line
    Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line

    Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line

    Pure Drinking / Drinkable Water RO/ Reverse Osmosis Treatment Equipment / Plant / Machine / System / Line
    Model
    Capacity of water(Ton/hour)
    General Power(KW) Electrical Power(50-60Hz) Membrane(Pic) Size (L*W*H)(mm) Weight(Kg)
    RO-100L/H 0.1 1 AC220V EC4021-800A 690*570*1490 100
    RO-250L/H 0.25 2.2 AC220V 18A / 380V 9A ESPA4040*2 1550*900*1820 150
    RO-500L/H 0.5 2.75 AC220V 18A / 380V 9A ESPA4040*3 1550*900*1820 250
    RO-700L/H 0.7 4.25 AC220V 27.5A / 380V 13A ESPA4040*4 1550*900*1820 350
    RO-1000L/H 1 3.75 AC220V 24A / 380V 12A ESPA4040*4 1980*900*1940 500
    RO-2000L/H 2 4.75 AC380V 8.8A ESPA4040*6 4800*700*2050 700
    RO-3000L/H 3 5.75 AC380V 10A ESPA4040*7 6000*800*2200 800
    RO-4000L/H 4 7.5 AC380V 12A ESPA4040*8 7000*900*2400 1000
    RO-5000L/H 5 12.5 AC380V 25A ESPA8040*9 8000*1000*2700 1500
    RO-6000L/H 6 15 AC380V 30A ESPA4040*10 4300*1000*2300 1700


    ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.

    FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.



    After service:

    1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

    2. We supply below necessary documents with the machine:
    a. Machine layout
    b. Electricity diagram
    c. Machine certificate
    d. General manual book/maintenance book

    3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
