One / Single Head PVC PET / Plastic Bottle Sleeve Shrink Labeling / Labeler Machine / Equipment / Plant / System
Product Details:
| Place of Origin: | ZhangJiaGang,JiangSu,China |
| Brand Name: | Fill Pack |
| Certification: | CE,ISO |
| Model Number: | TB-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD$3500-5500/set for glass bottle labeling machine |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 5 - 15days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 sets/month |
|
Detail Information |
|||
| Dimension: | 2000*850*2000mm | Power: | 4kw |
|---|---|---|---|
| Weight: | 200Kg | Labeling Speed: | 100-200BPM |
| Highlight: | industrial labeling systems,sticker labeling machine |
||
Product Description

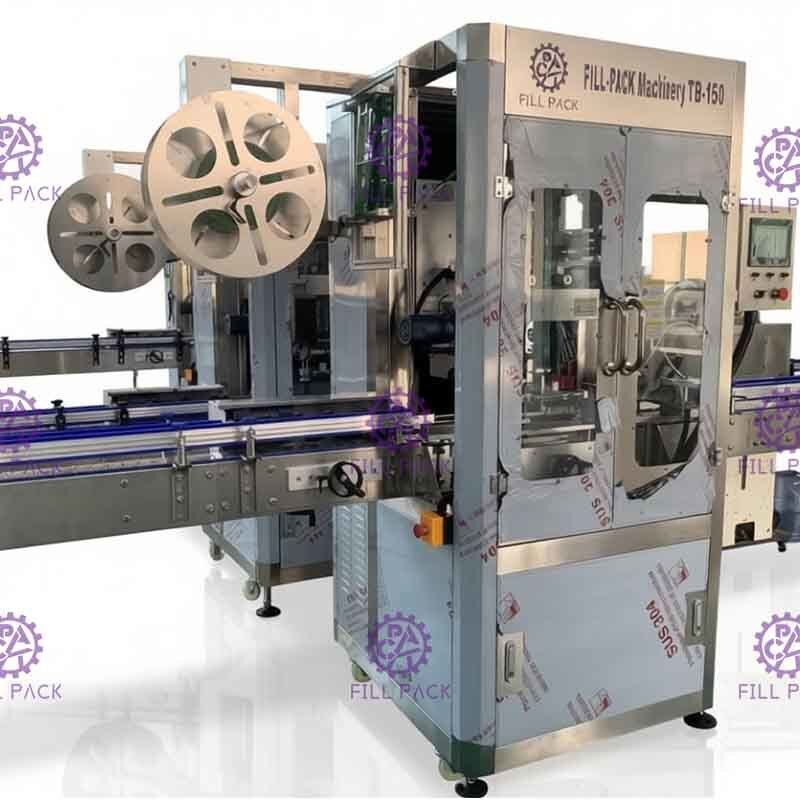

Description of Single head 100-200BPM Sleeve labeling machine with Steam shrink tunnel
Assuring You of Our Best Machines
>>>General:
★ Whole machine frame is made out of stainless steel SUS304. The frame is simple, beautiful, waterproof and not rust. It is easy for cleaning.
★ The special cutting system: adopting the whist and convolute technology. The label cutting is flat, no burr.
★ The label location set assures the sleeving veracity.
>>>Specifications:
★ This type of machine has the function of bottle carrying ,bottle separation ,label sleeving and label shrinking and it is perusing high speed ,exact location fewer worker and perfect packaging. It can apply to food and beverage industry and has the function of beauty and easily maintain.(for example 150 following is the detailed introduction)
★ Synchronized transmission, any change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours ,it’s maintenance is easy and maintain is simple ,so it doesn’t influence production.
★ Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.you never need to change or debug it. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and continence which is ahead of other congener products.
|
No
|
Item
|
Parameter
|
|
1
|
Suitable label length (mm)
|
30mm-250mm
|
|
2
|
Thickness of label
|
0.035mm-0.045mm
|
|
3
|
Applicable Products diameter (for round bottle)
|
∮28mm-∮125mm
|
|
4
|
Material of label
|
PVC, PET, OPS
|
|
5
|
Applicator size
|
L2000MM*W850MM*H2000MM
|
|
6
|
Labeling speed (pcs / min)
|
100-200BPM ,speed slightly faster when label is shorter
|
|
7
|
Voltage
|
Host machines;AC220V, 50/60HZ, 1.5-2.5KW, single-phase
|
|
If you need shrink adhesive labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
Please find the contact information at contact us.
|
||
|
Configuration table of machine parts
|
||
|
1
|
Bottle separating mechanism 1set
|
2. Bottle positioning mechanism 1set
|
|
3
|
Single material putting place 1set
|
4. Fiber-optical electric eye controlling 1set
|
|
5
|
Center guide pin 1set
|
6. Hairbrush 1set
|
|
7
|
Label carrier drive mechanism 1set
|
8. Cutter mechanism 1set
|
|
9
|
Synchronous label brush-off mechanism 1set
|
10. Automatic platform elevating mechanism 1set
|
|
11
|
Man-machine interface of operation control panel 1set
|
|
|
|
||
|
The main configuration table and function of automatic sleeve labeling machine
|
||
|
|
Name
|
Function
|
|
1
|
Material offering group
|
Offer motor for label carrier
|
|
2
|
Shelf group
|
Install volume label device
|
|
3
|
Platform elevating group
|
Adjust the height of host automatically according to the bottle shapes
|
|
4
|
Brush-off group
|
Brushing the cutted label on the bottle
|
|
5
|
Cutter group
|
Cutting off the labels which are sent to Center guide pin
|
|
6
|
Cutter controlling group
|
Control the cutter operational site
|
|
7
|
The back drive group
|
Offer motor for label of center guide pin
|
|
8
|
The front drive adjusting group
|
Grasping the center guide pin
|
|
9
|
Frame of Electric eye group
|
Adjust the best cutting position of the label
|
|
10
|
Electric eye of bottle lighting detecting group
|
Adjust the sleeve labeling position of bottle body
|
|
11
|
Hairbrush group
|
Brush the label which cannot sleeve properly to the right place
|
|
12
|
Bottle positioning group
|
Make bottle stable, control sleeve labeling position
|
|
13
|
Center guide pin group
|
Make volume label distracted for transfer and cut easily
|
|
14
|
Bottle entering screw bolts
|
Separate bottle on equal distance in order to sleeve labeling accurately
|
