Gallon Bottle Sleeve Shrink Labeling / Labeler Applicator / Machine / Equipment / Line / Plant / System / Unit
Product Details:
Place of Origin: | ZhangJiaGang,JiangSu,China |
Brand Name: | Fill Pack |
Certification: | CE,ISO |
Model Number: | TB-50 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD$3500-5500/set for glass bottle labeling machine |
Packaging Details: | sea worthy packing |
Delivery Time: | 5 - 15days |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 15 sets/month |
Detail Information |
|||
Dimension: | 1500*800*2000mm | Power: | 6kw |
---|---|---|---|
Weight: | 150Kg | Labeling Speed: | 300 Bottles Per Min |
Highlight: | automatic labeling machine,sticker labeling machine |
Product Description

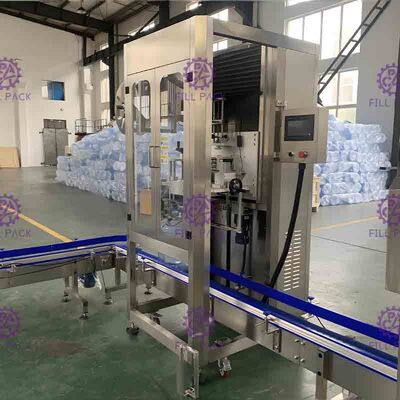

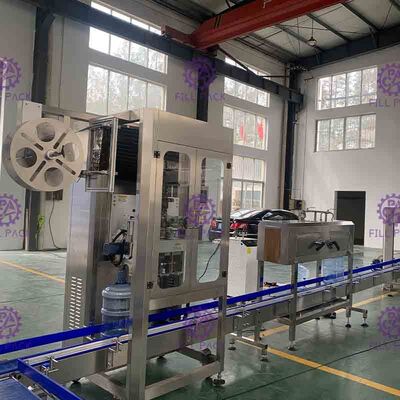

Description of Gallon bottle Sleeve applicator with sleeve shrink tunnel
Assuring You of Our Best Machines
>>>Specifications:

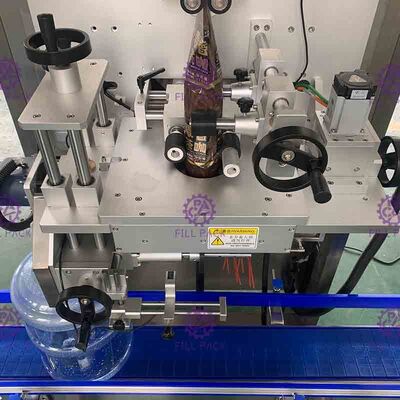

★ The newly designed cutter head use step by step motor driving which speed is high ,action is exact, the cut is in order and the shrinking is beautiful. This design cooperate with the label synchronized location structure enable the precision of cut location within 1mm. Many emergency stop buttons enable emergency stop at the proper position along the production which guarantee the safe production.

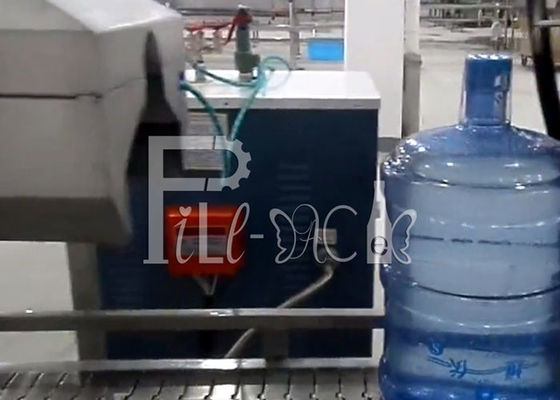

★ Special designed heat wind shrinking tunnel use high pressure wing machine which makes the shrink effect perfect. Compare with the traditional shrink tunnel which cannot shrink curved bottle, this head wind shrink tunnel can make the shrink effect satisfying.
★ The new style steam shrink tunnel improve the efficiency highly . It applies to different and un equal round bottle, flat bottle, square bottle etc. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use uses the separation style which makes the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .the low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing id very convenient.
★ Special designed heat wind shrinking tunnel use high pressure wing machine which makes the shrink effect perfect. Compare with the traditional shrink tunnel which cannot shrink curved bottle, this head wind shrink tunnel can make the shrink effect satisfying.
★ The new style steam shrink tunnel improve the efficiency highly . It applies to different and un equal round bottle, flat bottle, square bottle etc. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use uses the separation style which makes the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .the low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing id very convenient.

>>>General:
★ Easy to change packing material, the change over of the mould can be easily done by hand without any tools.
★ Within the flat width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic bottles.
★ Higher safely and stability for operation and saving time of manpower.
★ Within the flat width limitation, can be used to package objects in different shape, no matter round or square, can be applied on glass or plastic bottles.
★ Higher safely and stability for operation and saving time of manpower.
No
|
Item
|
Parameter
|
1
|
Host machinez
|
AC220V, 50/60HZ, 1.5-2KW, single-phase
|
2
|
Shrinking machine
|
AC380V, 50/60HZ ,9KW(electrical heat )
|
3
|
Material of label
|
PVC, PET, OPS
|
4
|
Applicator size
|
1500*800*2000mm
|
5
|
Labeling speed (pcs / min)
|
300 bottles per hour
|
6
|
Steam shrink tunnel
|
1000*450*1500mm
|
7
|
Applicable bottle
|
3-5gallon bottle
|
If you need shrink adhesive labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.
Please find the contact information at contact us.
|
||
Configuration table of machine parts
|
||
1
|
Label carrier drive mechanism 1set
|
2. Bottle positioning mechanism 1set
|
3
|
Single material putting place 1set
|
4. Fiber-optical electric eye controlling 1set
|
5
|

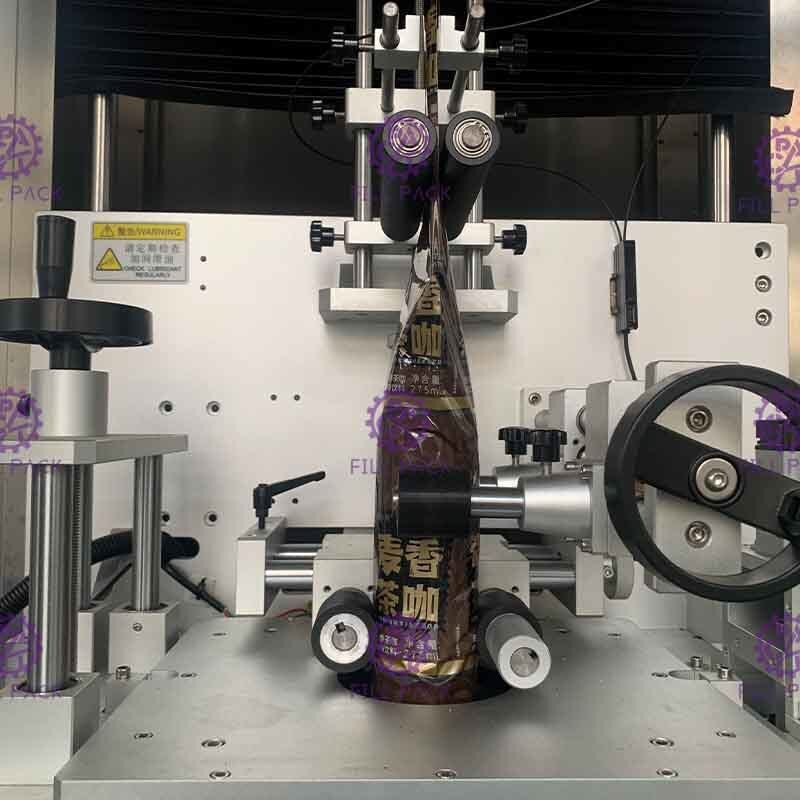

Center guide pin 1set
|
6. Cutter mechanism 1set
|
7
|
Automatic platform elevating mechanism 1set
|
8. Man-machine interface of operation control pane 1set
|
|
||
The main configuration table and function of automatic sleeve labeling machine
|
||
|
Name
|
Function
|
1
|
Material offering group
|
Offer motor for label carrier
|
2
|
Shelf group
|
Install volume label device
|
3
|
Platform elevating group
|
Adjust the height of host automatically according to the bottle shapes
|
4
|
Brush-off group
|
Brushing the cutted label on the bottle
|
5
|
Cutter group
|
Cutting off the labels which are sent to Center guide pin
|
6
|
Cutter controlling group
|
Control the cutter operational site
|
7
|
The back drive group
|
Offer motor for label of center guide pin
|
8
|
The front drive adjusting group
|
Grasping the center guide pin
|
9
|
Frame of Electric eye group
|
Adjust the best cutting position of the label
|
10
|
Electric eye of bottle lighting detecting group
|
Adjust the sleeve labeling position of bottle body
|
11
|
Hairbrush group
|
Brush the label which cannot sleeve properly to the right place
|
12
|
Bottle positioning group
|
Make bottle stable, control sleeve labeling position
|
13
|
Center guide pin group
|
Make volume label distracted for transfer and cut easily
|
14
|
Bottle entering screw bolts
|
Separate bottle on equal distance in order to sleeve labeling accurately
|
