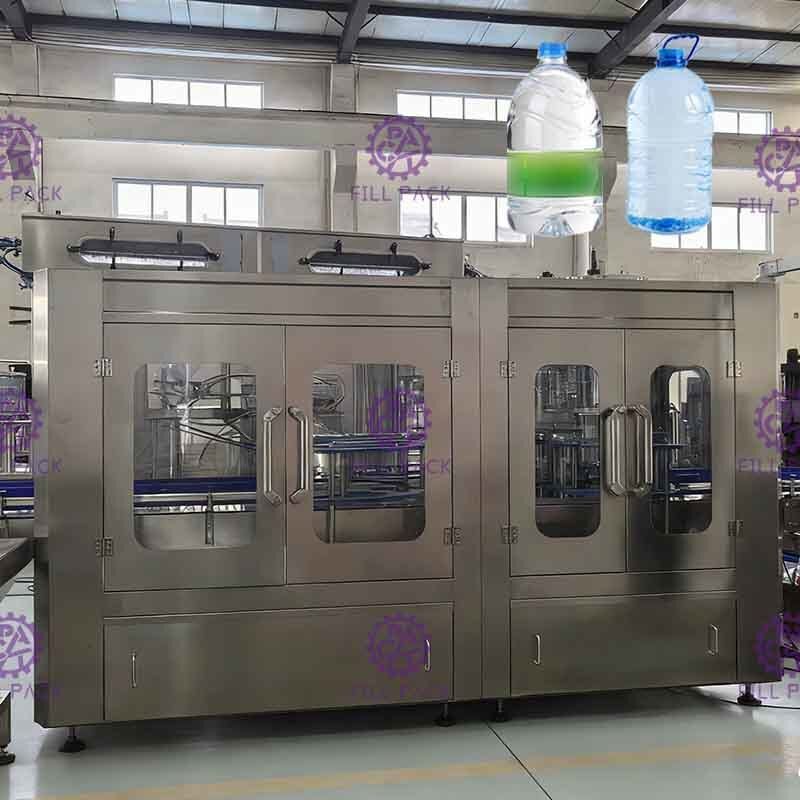

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Bottling Equipment / Plant / Machine / System / Line
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | CGF32-32-10B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-40000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 Sets Per Months |
|
Detail Information |
|||
| Filling Material: | Water And Non Carbonated Beverage | Capacity: | 3000-24000 Bph |
|---|---|---|---|
| Suitable Bottle Size: | 3-10L PET Bottle | Dimension(L*W*H): | 2750*2400*2400mm |
| Voltage: | 380V 50Hz | Rated Capacity: | 6000BPH |
| Highlight: | bottle filling equipment,water filling equipment |
||
Product Description
The machine is a full-automatic multiple-funcition washing,filling and capping unit.The line has features of unique design,new style,complete functions,multi-purpose,convenient in operation,beautiful construction high automaticity.
Washing Part:
* Into bottle way is air conveyor direct connection with Bottle dial .*All 304/316 stainless steel rinse heads, water spray style
inject design, more save water consumption and more clean .
* 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
* 304/316 stainless steel washing pump make the machine more durable .

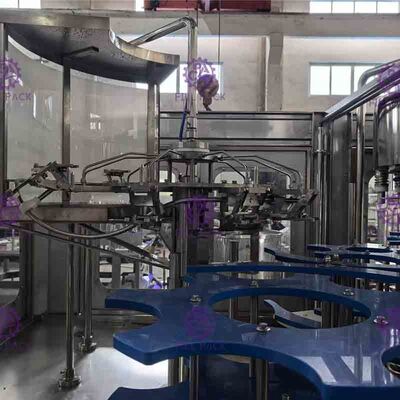

Filling Part:
* 304/316 Stainless steel high precision filling nozzle
* Filling volume adjustable in fine rank, same liquid level after filling
* All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
* 304/316 stainless steel filling pump
* Efficient spray nozzle rinse thoroughly and save water for flushing
|
Parameters
|
|
|
Model
|
CGF32-32-10B
|
|
Capacity(B/H)
|
4500
|
|
Bottle size
|
Neck:φ20-50mm;Height:150-320mm
|
|
Water pressure
|
0.18-0.25Mpa
|
|
Water consumption(kg/h)
|
1000
|
|
Washing station
|
2
|
|
Loading-Dripping-discharge station
|
2
|
|
Filling precision
|
<+5MM
|
|
Air pressure
|
0.4Mpa
|
|
Air consumption (m³/min)
|
0.3
|
|
Power(kw)
|
7.5
|
|
Weight(kg)
|
2500
|
|
Dimension(L*W*H)(mm)
|
2750*2400* 2400/2450mm
|
|
Electrical apparatus
|
||
|
Transducer
|
FuLing-Taiwan
|
FL-2.2K
|
|
Touch screen
|
Easyview-TaiWan
|
MT6070
|
|
PLC
|
Mitsubishi
|
FXIS-20MR
|
|
Stabilized voltage supply
|
MingWei-TaiWan
|
S-35-24
|
|
Contactor
|
Delixi
|
CJX2-0910
|
|
Approach switch
|
Autonics
|
PR18-8DN
|
|
Air switch
|
Delixi
|
3P-D20
|
|
|
|
IP-C3
|
|
Electrical rating power
|
|
|
Main motor
|
2.2KW
|
|
Inlet conveyor motor
|
0.37KW
|
|
Rinsing pump
|
0.37KW
|
|
Filling pump
|
0.55KW
|
|
Cap sorting motor
|
0.22KW
|
|
Belt conveyor motor
|
0.37KW
|
|
TOTAL
|
4.08KW
|
After Sales Service:
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas. After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and
accommodation of our engineer, and the salary.
