500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Producing Equipment / Plant / Machine / System / Line

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Producing Equipment / Plant / Machine / System / Line

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: CGF12-12-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-40000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 15 Sets Per Months
Get Best Price Contact Now

Detail Information

Service: Technician Avaliable Overseas Suitable Bottle Size: 0.3-2L PET Bottle
Automation: Automatic Application: PET Bottle Water
Power: 7 Kw Dimension(L*W*H): 2100*1750*2100mm
High Light:

water production line

,

water filler machine

Product Description

Decription of CGF12-12-4 Pure drinking water PET bottle 3 in 1 bottling line for 0-2L bottle

>>>Production:

★ The 2L water producing machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.

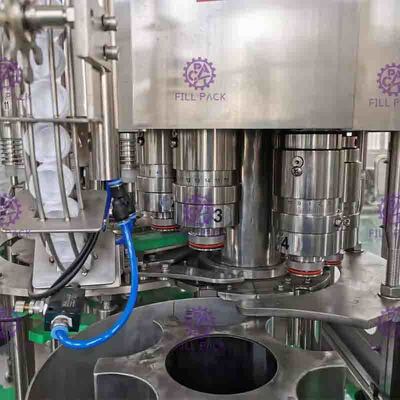

★ The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.



1. Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
2. The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.



1) Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.



This 2L water producing machine is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.
The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.



Parameter
Model
CGF12-12-4
Capacity(B/H)
4000
Bottle size
Neck :φ50-100mm:Height:150-320mm
Water pressure
0.18-0.25Mpa
Water consumption(kg/h)
1000
Washing station
18
Loading-Dripping-discharge station
2-2-2
Filling precision
<+1MM
Air pressure
0.5Mpa
Air consumption (m³/min)
0.3
Power(kw)
5
Weight(kg)
4000
Dimension(L*W*H)(mm)
2100*1750*2100 mm



Electrical apparatus
Transducer
Simens-Germany
Touch screen
Simens-Germany
PLC
Simens-Germany
Stabilized voltage supply
MingWei-TaiWan
Contactor
Schnider-French
Approach switch
Schnider-French
Air switch
Schnider-French



Optional RO water treatment machines in the water filling line
Model
Capacity(liter per hour)
RO-1000
1000LPH
RO-3000
3000LPH
RO-5000
5000LPH
RO-6000
6000LPH
RO-10000
10000LPH
Optional Washing-filling-capping machines in the filling line(3-in-1 and Linear type)
3in1(0-2L bottle)
Capacity(bottle per hour)
3in1(3-10L bottle)
Capacity
Linear type(3-10L bottle)
Capacity
CGF8-8-3
2000-3000BPH
CGF8-8-3B
0-1000
CGF4-4-1
500BPH
CGF12-12-4
3000-4000BPH
CGF12-12-4B
0-1500
CGF6-61
750BPH
CGF18-18-6
6000-7000BPH
CGF18-18-6B
0-2500
CGF8-8-1
1000BPH
CGF24-24-8
11000-12000BPH
CGF24-24-8B
0-3500
CGF10-10-1
1500BPH
CGF32-32-10
14000-15000BPH
CGF32-32-10B
0-5000
CGF12-12-1
2000BPH
CGF40-40-10
19000-20000BPH




CGF50-50-12
23000-24000BPH





More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.

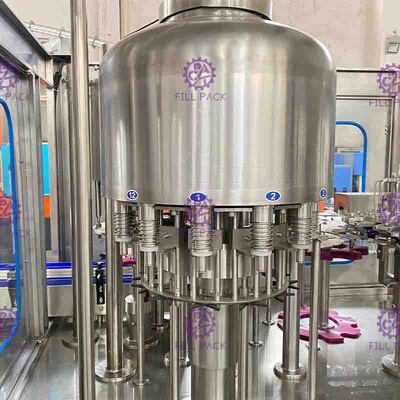

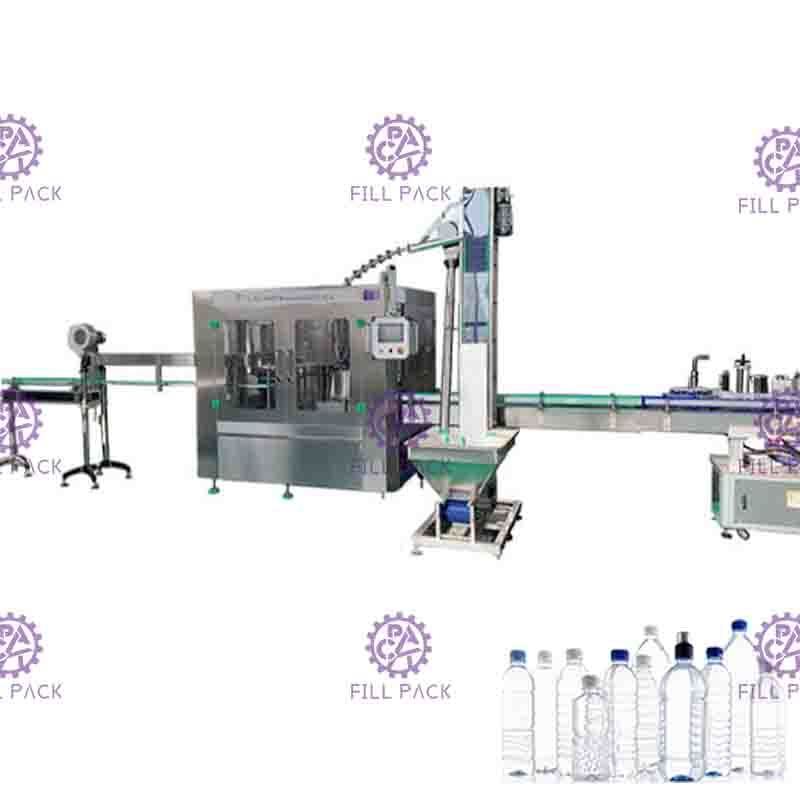

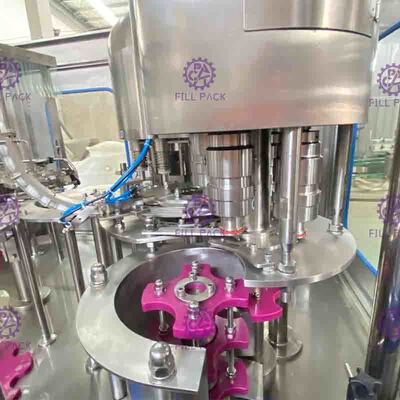

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Producing Equipment / Plant / Machine / System / Line 0



500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Producing Equipment / Plant / Machine / System / Line 1

Other machines in this production line

1, Bottle blow molding machine
★ Bottle range:We have the machine for many different volume of bottles like 0-2L, 3-10L and 3/5gallon.

2, Water treatment system

3, Labeling machine

4, Code printer

5, Film shrinking packing machine
