500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Washer Filler Capper Equipment / Plant / Machine / System / Line
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | QS-12 CG-12 FXZ-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-40000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 Sets Per Months |
|
Detail Information |
|||
| Capacity: | 1500-2000 Bph | Fuction: | Linear Type Washing Filling Capping |
|---|---|---|---|
| Suitable Bottle Size: | 0.2-2L PET Bottle | Automation: | Automatic |
| Applicable Industries: | Food & Beverage Factory | Dimension(L*W*H): | 2100*1750*2100 Mm |
| High Light: | water production line,water filler machine |
||
Product Description
Decription of linear type 12-12-1 Pure drinking water PET bottle filling line
The monoblock washer filler capper machine is composed of QS washer, CG filler, FXZ capper connected by linear conveyor system, it is suitable for just trail started customer or which do not require high speed.

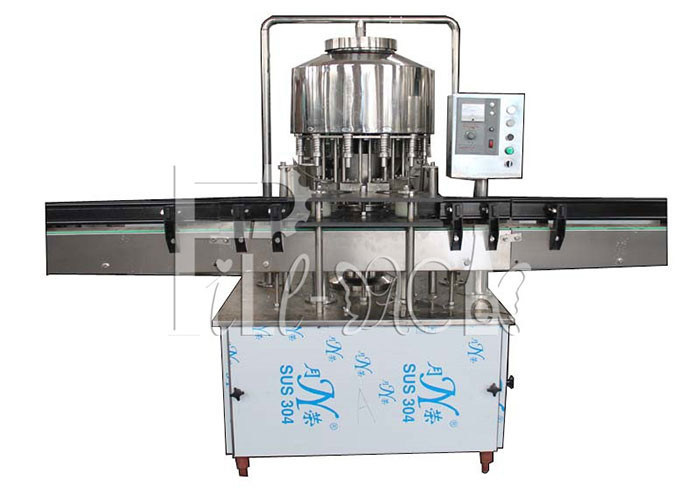

Rotary bottle washer:
★ This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The rinser is the ideal choice for drink factories of small and middle size.
Parameters: | |
Rising heads | 12 pcs |
Capacity | 0-3000BPH (each bottle rinsing time 4s) |
Power | 0.92KW |
Dimension | 1050*950*1700mm |
Weight | 700KG |
Applicable bottle | D∮50-100mm,H 50-350mm |

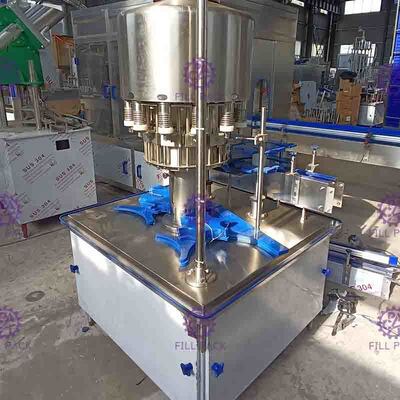

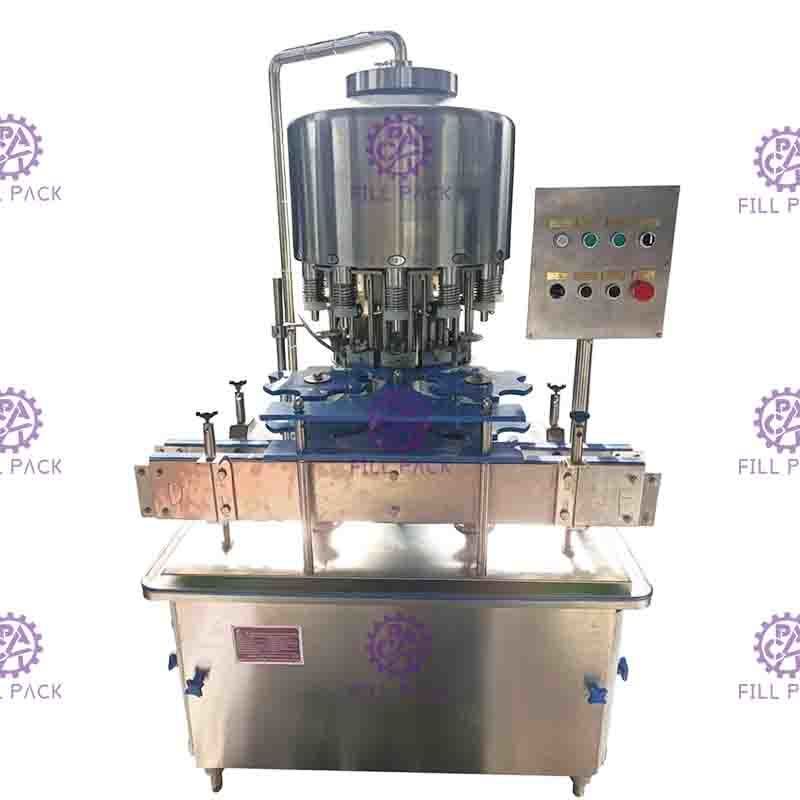

Normal pressure filler:
★ This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non carbonated drink. It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.
Parameters: | |
Filling heads | 12 pcs |
Power | 1.1KW |
Dimension | 1100*1050*1850mm |
Weight | 800KG |
Screw cap capping machine:
★ The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping.
Parameters: | |
Capping head | 1 pc |
Power | 1.1KW |
Dimension | 1000*850*2000mm |
Weight | 600KG |
We have 3-in-1 washing-filling-capping machine for 0-2L bottle and 3-10L bottle.
We also have linear type washing-filling-capping machine for 0-2L bottle and 3-10L bottle.
The capacity of linear type is not faster than 3-in-1, and it's floor area is slightly larger, but the price is more cheaper than 3-in-1.
Our Washing-filling-capping machines (3-in-1 and Linear type) | ||||||
3in1(0-2L bottle) | Capacity(bottle per hour) | 3in1(3-10L bottle) | Capacity | Linear type | Capacity | |
CGF8-8-3 | 2000-3000BPH | CGF8-8-3B | 0-1000 | CGF4-4-1 | 500BPH | |
CGF12-12-4 | 3000-4000BPH | CGF12-12-4B | 0-1500 | CGF6-6-1 | 750BPH | |
CGF18-18-6 | 6000-7000BPH | CGF18-18-6B | 0-2500 | CGF8-8-1 | 1000BPH | |
CGF24-24-8 | 11000-12000BPH | CGF24-24-8B | 0-3500 | CGF10-10-1 | 1500BPH | |
CGF32-32-10 | 14000-15000BPH | CGF32-32-10B | 0-5000 | CGF12-12-1 | 2000BPH | |
CGF40-40-10 | 19000-20000BPH | |||||
CGF50-50-12 | 23000-24000BPH | |||||
More capacities if you need, we can also customize that for you. please check them on our website or contact the sales consultant directly. Please find the contact information at contact us. | ||||||
