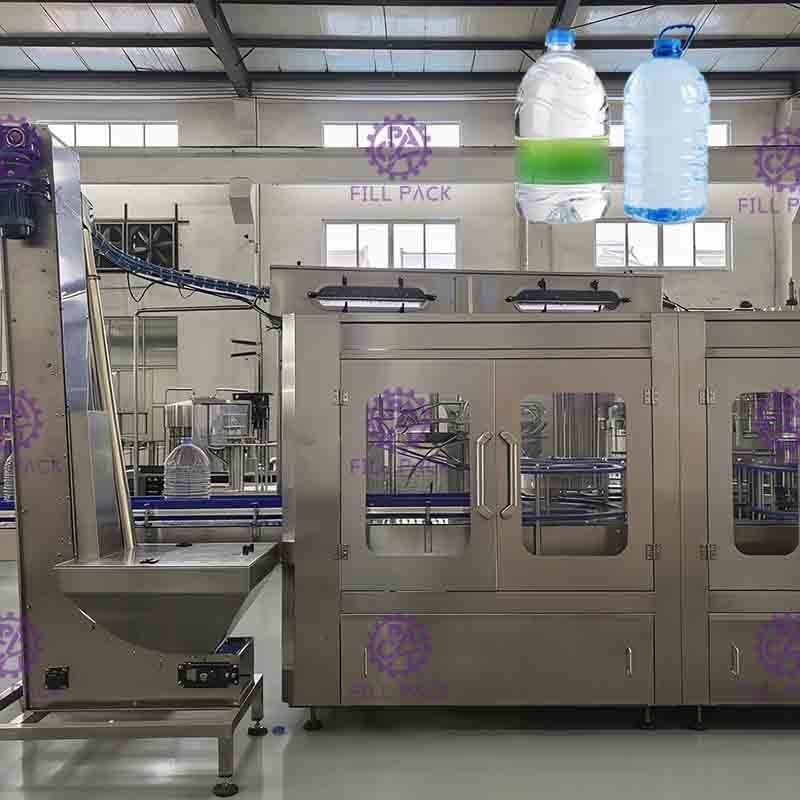

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Manufacturing Equipment / Plant / Machine / System / Line

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Manufacturing Equipment / Plant / Machine / System / Line

    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Manufacturing Equipment / Plant / Machine / System / Line
    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Manufacturing Equipment / Plant / Machine / System / Line
  • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Manufacturing Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF12-12-4B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Capacity: 2000BPH Suitable Bottle Size: 3-10L PET Bottle
    Automation: Automatic Function: Bottle Washing Filling Capping
    Dimension(L*W*H): 3860*3150*2400 Mm Voltage: 380V 50Hz

    Decription of CGF12-12-4B Pure drinking water PET bottle 3 in 1 bottling line for 3-10L bottle



    Feature:

    1. mineral water filling equipment

    2. Material: stainless steel 304 or 316

    3. PLC+ MMI control

    4. Certification: CE, ISO, SGS



    Details:

    The machine we designed specially for bottle water rinsing filling capping:



    1. Rinsing section

    The rinsing nozzle we designed can spray water to every corner of bottle easily, will clean the bottles as required, during running, it will result little noise;

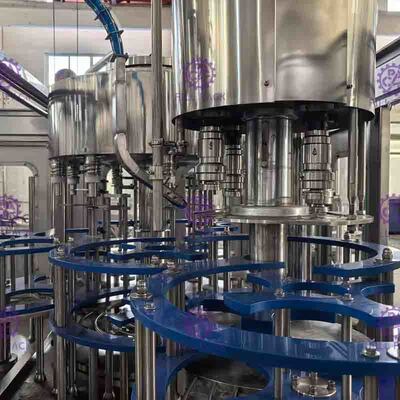

    2. Filling part

    The filling valves we designed in our 5L bottle filling machine can fill water into bottles efficiently and precisely. During filling process, the machine will never touch the bottle parts above bottle neck, to avoid the second time pollution;

    All our machine is made of Stainless steel SUS304 or SUS316, even with high speed running, our machine can run stably;

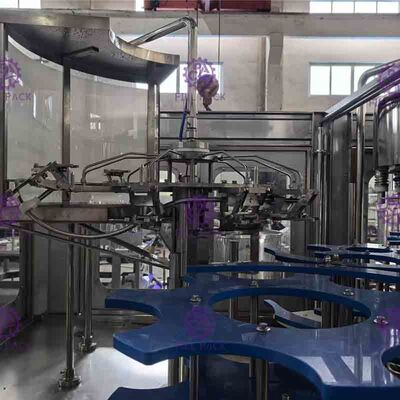

    3. Capping part

    Adopt magnetic capping designing, have overload protection, and with reliable torque, even in high capping speed will be without crooked cap.

    1) Transmission system: Motor, spindle, worm, limit position electric eye;

    2) Auto capping put down system: Micro-motor, stirring cap handling device, under cap tracks;

    3) Capping system: it mainly includes gland mold, capping head.

    4) Stepless change


    Optional RO water treatment machines in the water filling line
    Model Capacity(liter per hour)
    RO-1000 1000LPH
    RO-3000 3000LPH
    RO-5000 5000LPH
    RO-6000 6000LPH
    RO-10000 10000LPH
    Optional Washing-filling-capping machines in the filling line(3-in-1 and Linear type)
    3in1(0-2L bottle) Capacity(bottle per hour) 3in1(3-10L bottle) Capacity Linear type(3-10L bottle) Capacity
    CGF8-8-3 2000-3000BPH CGF8-8-3B 0-1000 CGF4-4-1 500BPH
    CGF12-12-4 3000-4000BPH CGF12-12-4B 0-1500 CGF6-61 750BPH
    CGF18-18-6 6000-7000BPH CGF18-18-6B 0-2500 CGF8-8-1 1000BPH
    CGF24-24-8 11000-12000BPH CGF24-24-8B 0-3500 CGF10-10-1 1500BPH
    CGF32-32-10 14000-15000BPH CGF32-32-10B 0-5000 CGF12-12-1 2000BPH
    CGF40-40-10 19000-20000BPH
    CGF50-50-12 23000-24000BPH


    Parameter
    Model CGF12-12-4B
    Capacity(B/H)(330ml) 1000-1500(3L)
    Bottle size Neck:φ20-50mm;Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 2
    Dripping station 2
    Filling precision <+5MM
    Air pressure 0.4Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 4
    Weight(kg) 2500
    Dimension(L*W*H)(mm) 2400*2100* 2100/2450mm
    Electrical apparatus
    Transducer FuLing-Taiwan FL-2.2K
    Touch screen Easyview-TaiWan MT6070
    PLC Mitsubishi FXIS-20MR
    Stabilized voltage supply MingWei-TaiWan S-35-24
    Contactor Delixi CJX2-0910
    Approach switch Autonics PR18-8DN
    Air switch Delixi 3P-D20
        IP-C3
    3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Manufacturing Equipment / Plant / Machine / System / Line

    FAQ
    Which equipment do you need?

    Bottled beverage filling machine, 5 gallon bottle water filling machine, 3L-10L bottle filling machine or cup filling machine

    Requirements of filling container and capacity.

    Bottle, barrel, cup.



    Which label do you want to use?

    The labeling machines include: hot melt glue labeling machine, cold glue labeling machine, self-adhesive sticker bottle labeling machine and automatic shrink sleeve labeling machine.



    What packing method do you want to choose?

    The packing machines include: film packing machine and carton packing machine.
