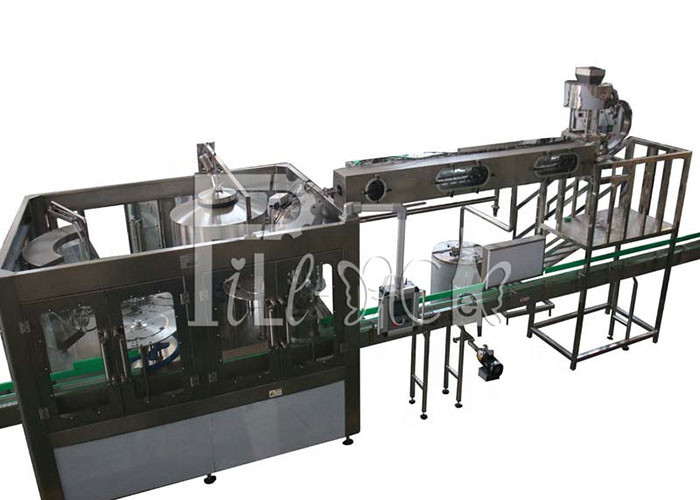

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinser Filler Capper Equipment / Plant / Machine / System / Line

3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinser Filler Capper Equipment / Plant / Machine / System / Line

    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinser Filler Capper Equipment / Plant / Machine / System / Line
    • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinser Filler Capper Equipment / Plant / Machine / System / Line
  • 3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinser Filler Capper Equipment / Plant / Machine / System / Line

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CGF12-12-4B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 20000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 Sets Per Months
    Contact Now
    Detailed Product Description
    Control: PLC + Speed Adjustable Feature: 3-10L Big Bottle High Speed Filling Machine
    Processing Types: Water Suitable Bottle Size: 3-10L PET Bottle
    Automation: Automatic Application: PET Bottle Water

    Decription of CGF12-12-4B Pure drinking water PET bottle 3 in 1 bottling line for 3-10L bottle


    Product Application:
    1.The CGF12-12-4B Pure drinking water PET bottle 3 in 1 bottling line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.

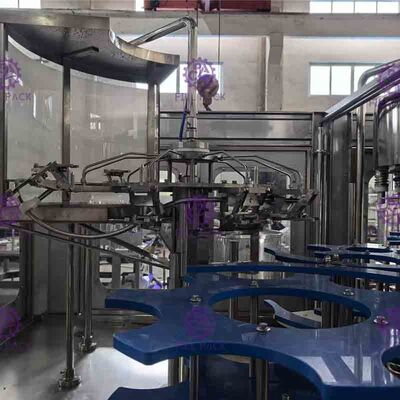

    2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed.

    3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.

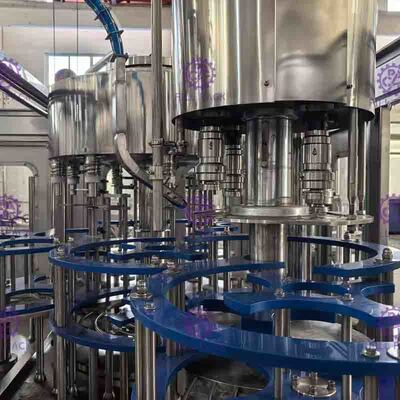

    4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.

    5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.



    Parameter
    Model CGF12-12-4B
    Capacity(B/H)(330ml) 1000-1500(3L)
    Bottle size Neck:φ20-50mm;Height:150-320mm
    Water pressure 0.18-0.25Mpa
    Water consumption(kg/h) 1000
    Washing station 2
    Dripping station 2
    Filling precision <+5MM
    Air pressure 0.4Mpa
    Air consumption (m³/min) 0.3
    Power(kw) 4
    Weight(kg) 2500
    Dimension(L*W*H)(mm) 2400*2100* 2100/2450mm

    3L / 5L / 10L Mineral Water Plastic Bottle 2 In 1 Rinser Filler Capper Equipment / Plant / Machine / System / Line

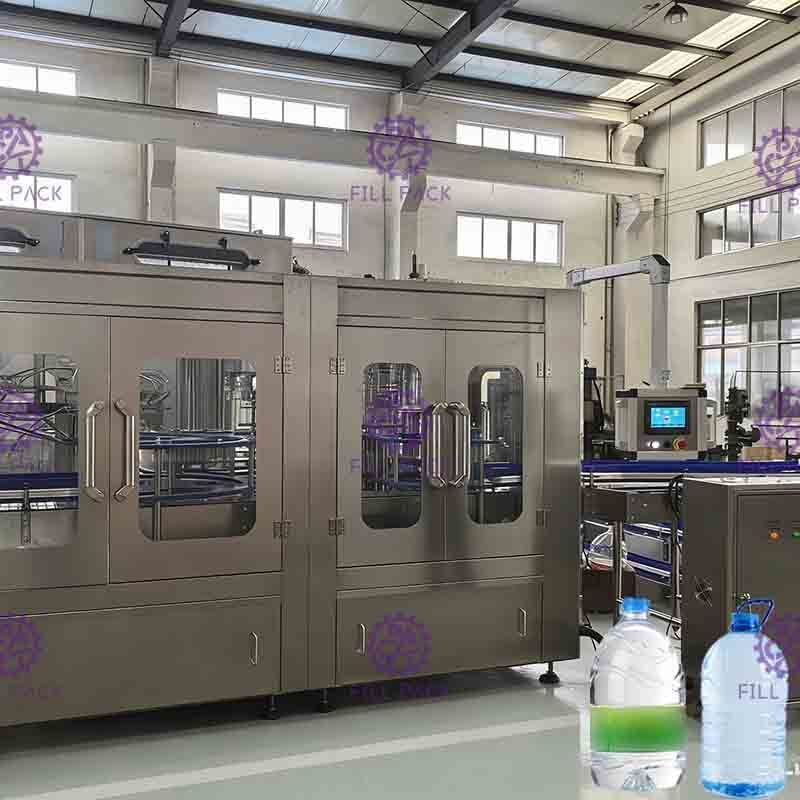

        Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.
