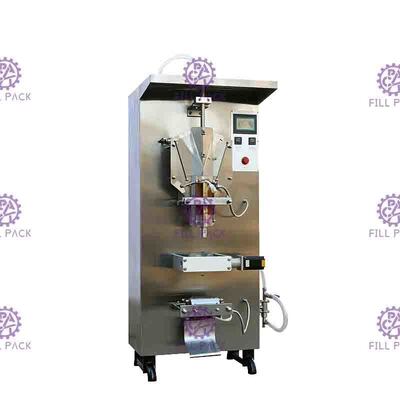

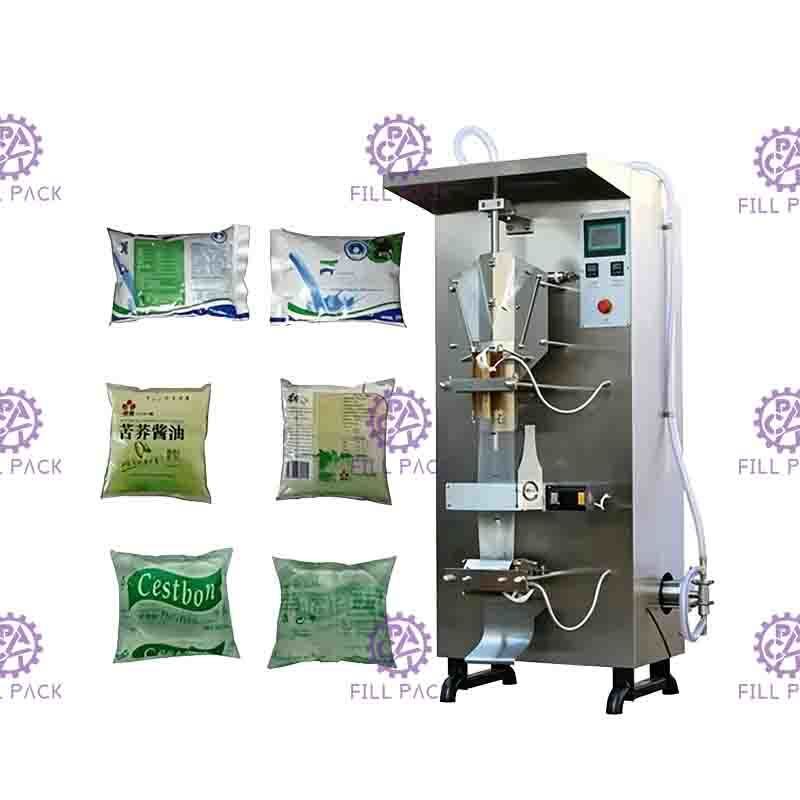

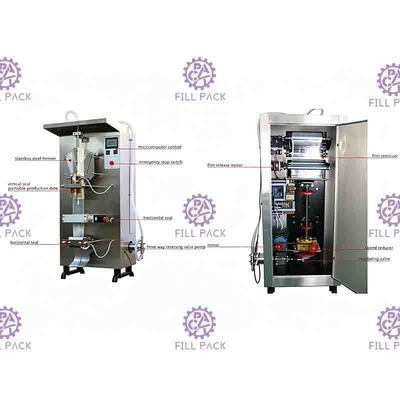

Sachet / Pouch / Bag Liquid Water Filling / Filler Machine / Equipment / System / Line / Plant
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 |
| Model Number: | 500B1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 1900-4050USD/set |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 Sets Per Months |
|
Detail Information |
|||
| Model: | 500B1/1000B1/2000B1/500A-2 | Bag Length: | 50-150mm |
|---|---|---|---|
| Bag Width: | 65-150mm | Packaging Film Width: | 150-320mm |
| Package Volume: | 0-500 | Packing Speed: | 1100-1300bags/h |
| Power: | 2.1KW | External Dimensions: | 1050*850*2050mm |
| Highlight: | water production line,water bottle filling machine |
||
Product Description
Sachet / pouch / bag liquid water filling / filler machine / equipment / system / line / plant
General:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing,horizontal sealing
3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and counting
4, Control system: microprocessor and automatic photocell
5, Whole machine with stainless steel covering, With foot wheels for easy transportation;
Model list and technical specifications:
|
Model
|
500B1
|
1000B1
|
2000B1
|
500B2
|
|
Bag length (mm)
|
50-150
|
50-250
|
100-400
|
50-150
|
|
Bag width (mm)
|
65-150
|
65-175
|
65-210
|
65-150
|
|
Packaging film width (mm)
|
150-320
|
150-380
|
150-450
|
150-320
|
|
Package volume (ml)
|
0-500
|
0-1000
|
0-2000
|
0-500
|
|
Packing speed (bags/h)
|
1100-1300
|
1100-1300
|
800-1000
|
1100-1600
|
|
Power (kw)
|
2.1
|
2.5
|
2.5
|
2.1
|
|
External dimensions (mm)
|
1050*850*2050
|
1050*850*2050
|
1200*850*2050
|
1050*850*2050
|
|
Weight (kg)
|
370
|
380
|
460
|
370
|
We can also provide matching water treatment lines.
