Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001
Model Number: 400GPD,600GPD,800GPD,1600GPD,3200GPD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1100-1680USD/set
Packaging Details: sea worthy packing
Delivery Time: 20 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Model: 400GPD,600GPD,800GPD,1600GPD,3200GPD Pre-fillter Stage: 3 Or 4
Pay Function:: IC Card, Coins Voltage:: 220v 1ph 50hz
Filling Material:: Pure Water Filling Container:: Gallon Bottle
RO Membrane:: 3013 Or 4040 Diamention:: 650*650*1900 Mm
High Light:

coin operated RO water dispenser

,

3013 RO water dispenser

,

4 stage water refilling vendo machine

Product Description

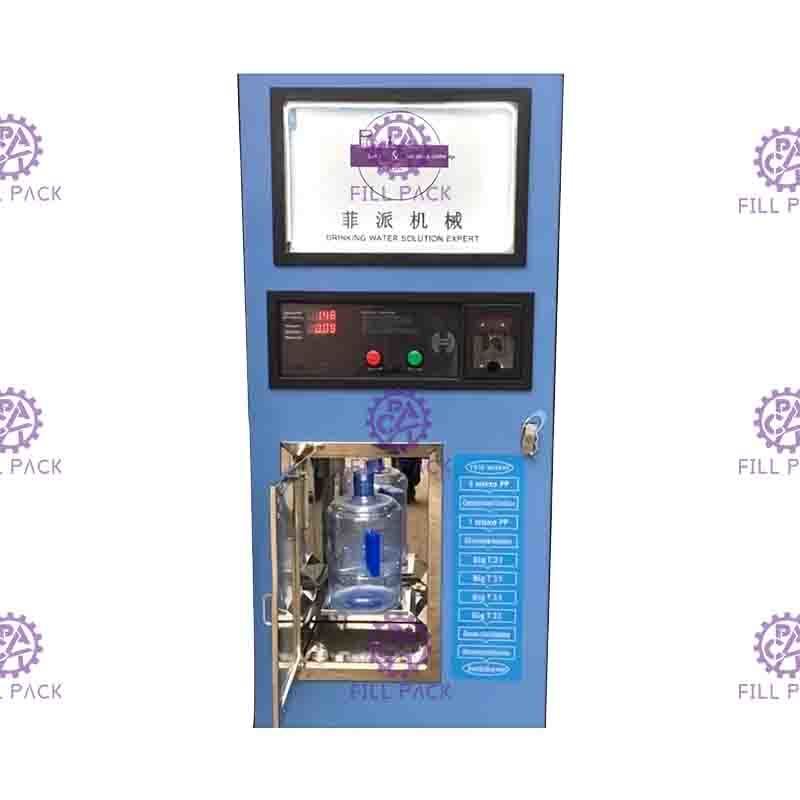

Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage

Description:

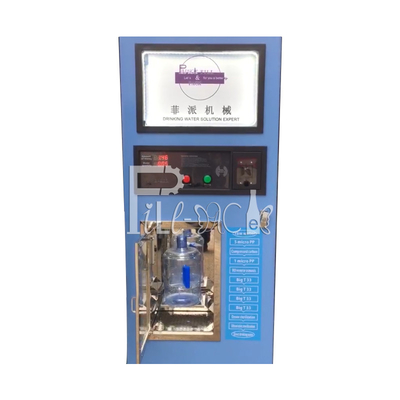

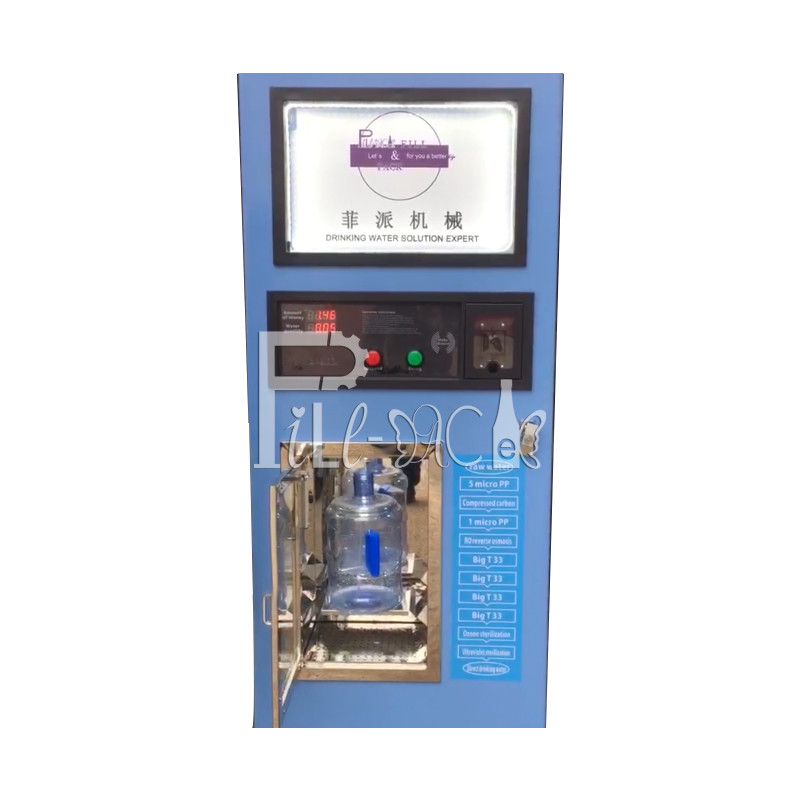

Self-service RO water dispenser



water dispenser with 3 stages pre-filters water dispenser with 4 stages pre-filters
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 0 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 1
Recharge cards Recharge machine
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 2 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 3
How to choose the suitable RO water dispenser you need?
Model RO membrane Amount of people can be supplied
400GPD 3013*1 100-200 users
600GPD 3012*2 150-300 users
800GPD 3013*2 200-400 users
1600GPD 4040*1 400-800 users
3200GPD 4040*2 800-1600 users



Our Self-service water dispenser does not have the function of coin, only the function of card payment.

1. You can configure a large number of recharge cards, and then you can sell them to consumers. Consumers can swipe their cards to get water. If there is no money in the cards, you can recharge them with the recharge machine.

2. You can configure a recharge machine and only purchase a small number of recharging cards. When the consumer comes to buy water, you can swipe the card to sell water to the customer.

3. If the machine is in your retail store, you can also choose to sell water in cash transaction.



It’s a kind of fresh water purified by filtering, infiltrating and adsorbing the tap water, so as to achieve the goal of purifying the water. It does not need man-made, storefront and covers an area of only 1 square metre. 24-hour on-site water production, all-weather self-service supply, consumers bring their own containers, using IC smart card swipe the machine, and then press the filling key, you can complete the entire purchase process.



Characteristic:

With the development of economy and the improvement of people's living standard, people pay more and more attention to the quality of life. Water is the source of life. Every household needs water. The emergence of water vending machine facilitates people to drink fresh water. It can be installed in residential areas, streets, supermarkets, schools, units and other venues. It can sell water automatically 24 hours, which facilitates people's requirements for drinking water and achieves a convenient way of drinking water.



Performance:

1. The machine body adopts static plasma cutting of galvanized cold-rolled steel plate, carbon dioxide protection welding process, lathe finishing and forming, and the inner and outer surfaces are treated with topcoat for anti-corrosion, waterproof and beautification.

2. Internal membrane system, the treated water quality can reach direct drinking.

3. The power system adopts electric drive technology. The water vending machine runs smoothly, has no noise and low energy consumption.

4. Make the automatic control program accurate.



11 stages of water treatment processes:

1, The first stage 20 inch 5 micron pp cotton filter element can filter the sediment in the water, rust and other large visible objects.

2, The second stage is 20 inch granular activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.

3, The third stage is 20 inch sintered activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.

4, The fourth stage, 20 inch 1 micron pp cotton filter element, intercepts the sediment and rust in the water again to protect the RO membrane.

5, The fifth stage RO reverse osmosis membrane is used to filter harmful substances such as bacteria, heavy metals, microorganisms and residual pesticides in water.

6, The sixth grade large t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.

7, The seventh grade big t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.

8, The eighth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet.

9, The ninth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet..

10, Level 10 ozone sterilization, sterilization and algaecide.

11, The 11th level UV sterilization ensures the purity of water again.



Detailed photos of each model

400GPD

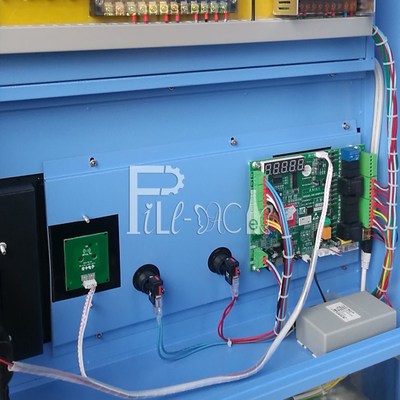

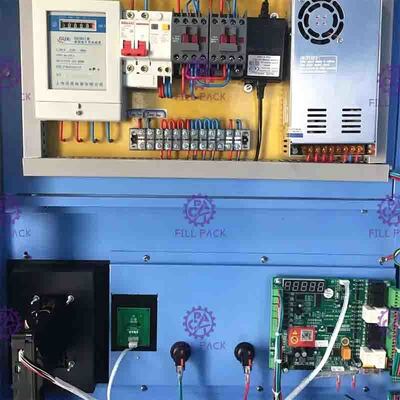

3 pre-filters 3013*1 RO membrane and pump Electrical control box
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 4 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 5 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 6

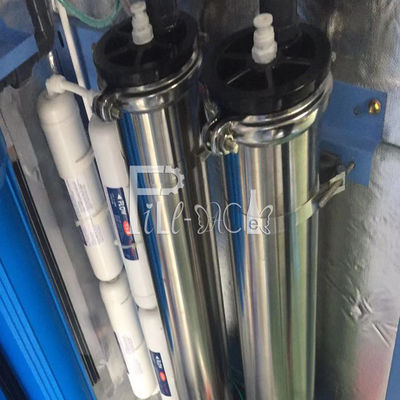

600/800GPD of two 3013 membranes Electrical control box
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 1 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 8

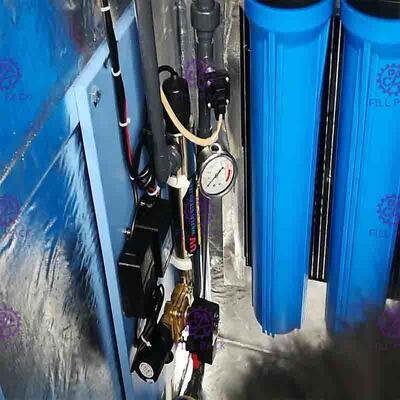

3 pre-filters and 2 RO membranes Two 200G pumps
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 9 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 10

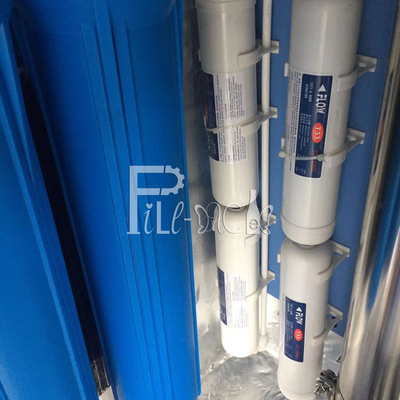

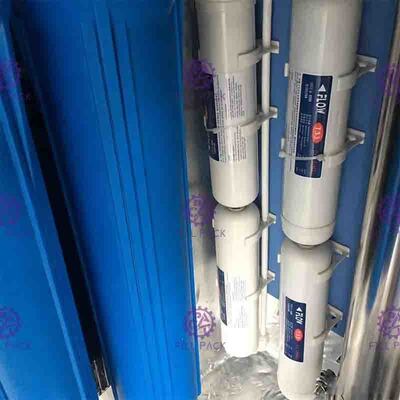

160L water tank and 4 T33 filters Ozone and UV sterilization
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 11 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 12
1600GPD Electrical control box
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 13 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 14
160L water tank Two pumps
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 15 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 16
4 T33 filters Ozone and UV sterilization
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 17 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 12
3200GPD Electrical control box
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 19 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 20
160L water tank 11 stages of filters
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 21 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 22
Two 4040 RO membranes Pump
Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 23 Self Service RO Water Dispenser , Water Refilling Vendo Machine 4 Stage 24

Consumables:

Item Size Life unit Price
1 stage: 5um PP 20inch 1-3month 1 PC 1USD
2stage: granular activated carbon filter 20inch 3-6month 1 PC 2.8USD
3stage: sintered activated carbon filter 20inch 3-6month 1 PC 2.8USD
4stage: 1um PP 20inch 1-3month 1 PC 1USD
RO membrane 4040 12-18month 1 PC 130USD
RO membrane 4021 12-18month 1 PC 96.5USD
RO membrane 3013/3012 12-18month 1 PC 33.5USD
6stage T33 filter element Big T 6-12month 1 PC 3.5USD
7stage T33 filter element Big T 6-12month 1 PC 3.5USD
8stage T33 filter element Small T 6-12month 1 PC 3.5USD
9stage Mineralized filter element Small T 6-12month 1 PC 3.5USD
10stage Ozone sterilization 12W 20000hours 1 PC 35.7USD
11stage UV sterilization 200mm 20000hours 1 PC 35.7USD
Water tank 160L / 1 PC 52.5USD
Small Pump 160-400 / 1 set 70USD
Big Pump 2-9X7 / 1 set 296USD
Recharge machine Hand hold / 1 set 157USD





6: Installation

a. After the machines are delivered to customer’s factory, please arrange preparation work mentioned in advance;

b. If you needed, We will send technicians to the factory after preparation work is completed; Based on the buyer prepare to all the water, electricity, wire and other conditions, the testing will be finished in a week.

c. Technicians will be responsible for guide on-site installation and testing machines.

d. Meanwhile technicians will give free training lessons to labors during testing here.

e. The customer should be responsible for the room, meals and board and the two-way air tickets and visa and fee as well the allowance 100 USD per day for each person. And should be also responsible for the engineer’s personal safety.



7: Guarantee period and after-sales services

a. Warranty for machinery: one year for all machinery from shipment date.

b. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, We will provide the buyer spare parts at cost price.

c. The workers must operate the machines according to the usage of the machine. We do not be responsible for the accident which is made by the improper operation of workers. And for all the force majeure can’t be controlled, avoided and prevented, such as the natural disaster, strike, and earthquake and so on.
