Mineral RO Water Vending Machine 9 Stage With 4040 Membrane

Mineral RO Water Vending Machine 9 Stage With 4040 Membrane

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001
Model Number: 1600GPD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 2880USD/set
Packaging Details: sea worthy packing
Delivery Time: 20 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Model: 1600GPD Pre-fillter Stage: 9
Pay Function:: IC Card, Coins Voltage:: AC 220V/50Hz Or 110V/60Hz
Filling Material:: Pure Water RO Membrane:: 4040
Power:: 1250W Diamention:: 1600*680*2000 Mm
High Light:

9 stage RO water vending machine

,

9 stage mineral water vending machine

,

4040 membrane mineral water vending machine

Product Description

Mineral RO Water Vending Machine 9 Stage With 4040 Membrane

II,Performance Date:

Item 1600GPD (6056L/24H)
Power supply

AC 220V/50Hz

or 110V/60Hz

Power 1250W
Current 5.6A
UV lamp 15W(2pcs)
Ozone 1000mg
Source water Tap water
Inlet Water pressure 0.1-0.3Mpa(3Kg/cm)
Production capacity 1900 gallons per day( 24 hours)
Recovery 40%-45%
Desalinization ratio 98%
Working pressure 0.5-0.6MPa
Filling capacity 7L/Min
Filling bottle size

3 or 5 gallons

Bottle or smaller



III,Interior Items

Items Spec QTY
Capacity 1600GPD
Quartz sand filter (tank) Model:817 (manual back wash) 15Kg
Activated carbon filter(thank) Model:817 (manual back wash) 8Kg
PP filter 20" -5u-PPF filter 2pcs
RO membrane 4040 1pc
Postposition active carbon T33 1pc
mineralization filter T33 1pc
High pressure pump 950W 1pc
Booster pump 90W 1pc
control board PC 1pc
UV lamp 15W 2pcs
Water storage tank 300L (SS304-food grade ) 1pc
Ozone 1000mg 2pc
Coin acceptor For … coin 2pcs
solenoid valve 110V /220V 3pc
Flow meter Impulse type 1pc
Water meter   1pc
Ammeter (electric meter) 20-40A 1pc
RO Working Pressure meter   1pc
Pipe (food grade ) DN15,6mm(PE),10mm(PE),20mm(PVC-U)
Size Size: 1600*680*2000

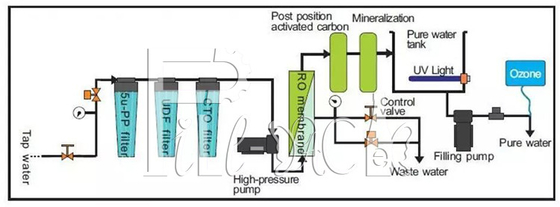

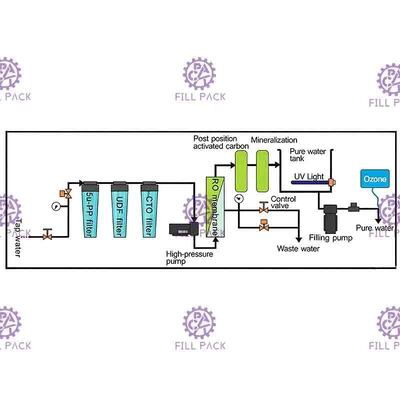

IV,Process of Water Purifying:

Mineral RO Water Vending Machine 9 Stage With 4040 Membrane 0

First stage: Quartz Sand filtration(Fiber Glass Tank)

Second stage: Adsorption filtration(Fiber Glass Tank)

Third stage: PP filtration

Fourth stage: PP purification

Fifth stage: RO membrane

Sixth stage: Postposition activated carbon filtration

Seventh stage: mineralization

Eighth stage: UV sterilization( 2UV lamp)

Nine stage: Ozone sterilization



Ⅴ. Delivery time:

15 working days after deposit payment.



Ⅵ. Payment:

30% TT against PI, 70%before Shipment, small amount suggest once payment.
