10000BPH 330ml Mango Juice Bottle Packing Machine 4 Spraying Position

10000BPH 330ml Mango Juice Bottle Packing Machine 4 Spraying Position

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: YFRG24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Processing Type: Fill Tea Drink Into Bottle Filling Type: Juice Filling Machine
Filling Range: 330ml-1500ml Control Manner: PLC Control
Material: Stainless Steel 304 Electric Parts: All Well-known Brand / Customize
High Light:

330ml mango juice packing machine

,

10000BPH mango juice packing machine

,

330ml juice bottle packing machine

Product Description

PLC Control Tea Filling machine Magnetic Capping For PET Bottle





Quick Detail:



Capacity: 8000-10000BPH

Suitable Bottle: PET bottle
Bottle Volume: 0.3-1.5L
Dimension: By order
Function: Washing washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:

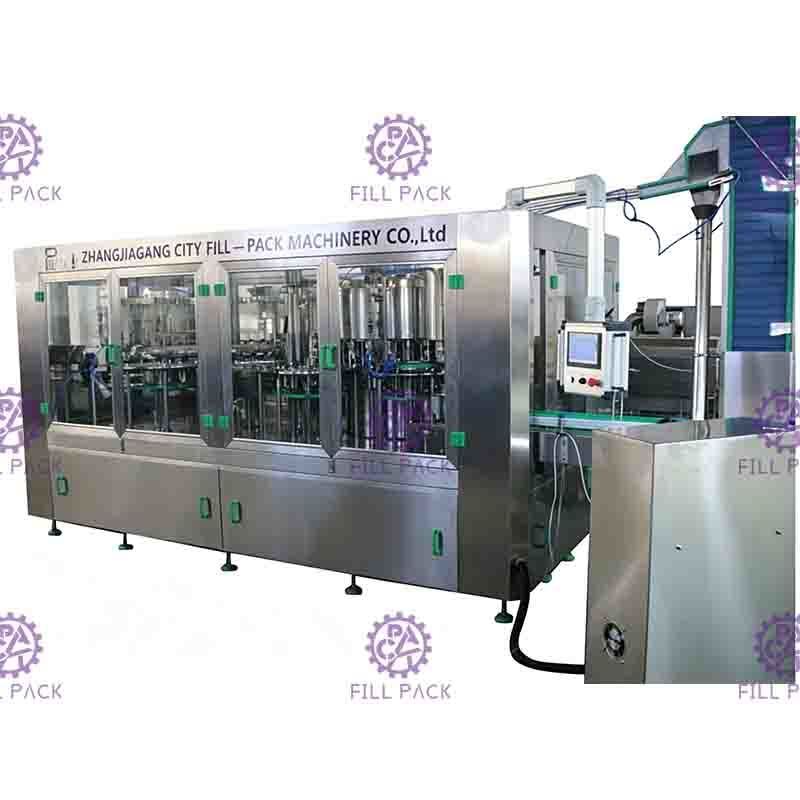

- Tea filling machine integrates bottle washing, liquid filling, bottle capping in one unit;

- There is recycling system applied in juice filling machine;

- The tea filling temperature can reach 85 degree;

- All electric parts are applied well-known brand;





Specifications:



Model YFRG12-12-4 YFRG18-18-6 YFRG24-24-8 YFRG32-32-10
Production B/H(600ml) 4000-5000 6000-8000 8000-12000 12000-15000
Bottle standard Neck:φ50-100mm Height150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Company description



Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%
