2000BPH Monoblock Mineral  Rinsing Filling Capping Machine Linear Type

2000BPH Monoblock Mineral Rinsing Filling Capping Machine Linear Type

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001
Model Number: 2000BPH

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 9300USD/unit
Packaging Details: sea worthy packing
Delivery Time: 25 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10 Sets Per Months
Get Best Price Contact Now

Detail Information

Model: 12-12-1 Capacity:: 2000BPH
Bottle Material:: Plastic Bottle Volume:: 0-2L
Function:: Rinser-filler-capper Filling Material:: Milk, Water, Juice
Key Selling Points: Easy To Operate Core Components:: Motor, Pump
High Light:

linear rinsing filling capping machine

,

2000BPH rinsing filling capping machine

,

2000BPH monoblock liquid filling machine

Product Description

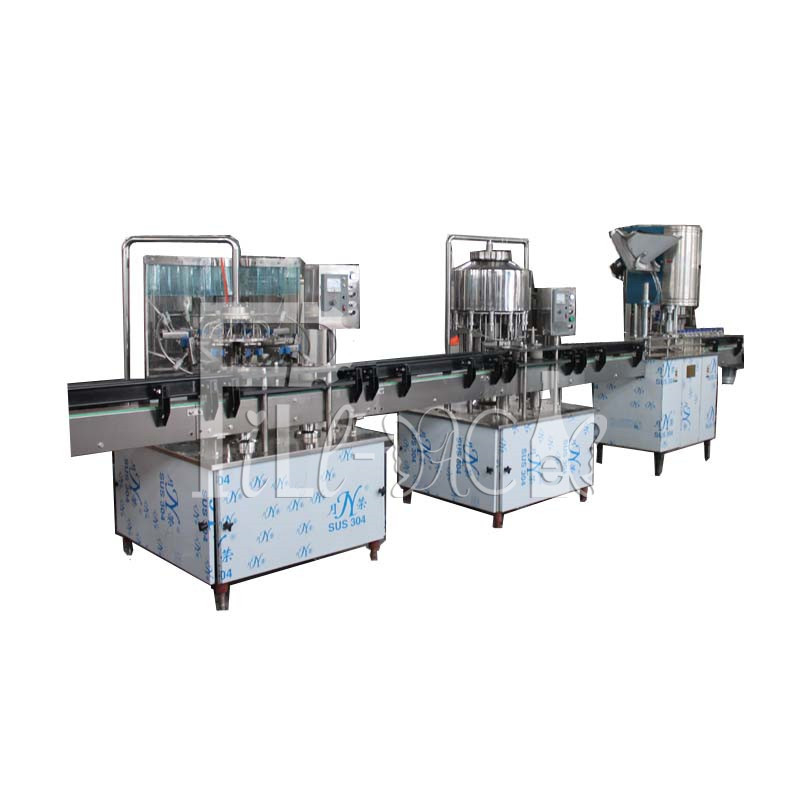

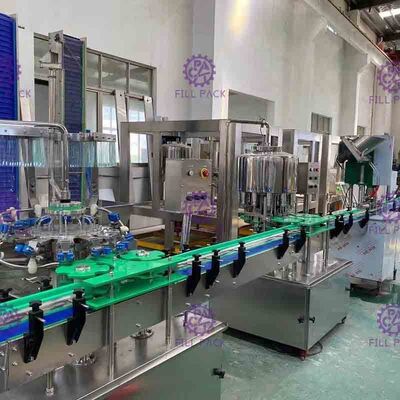

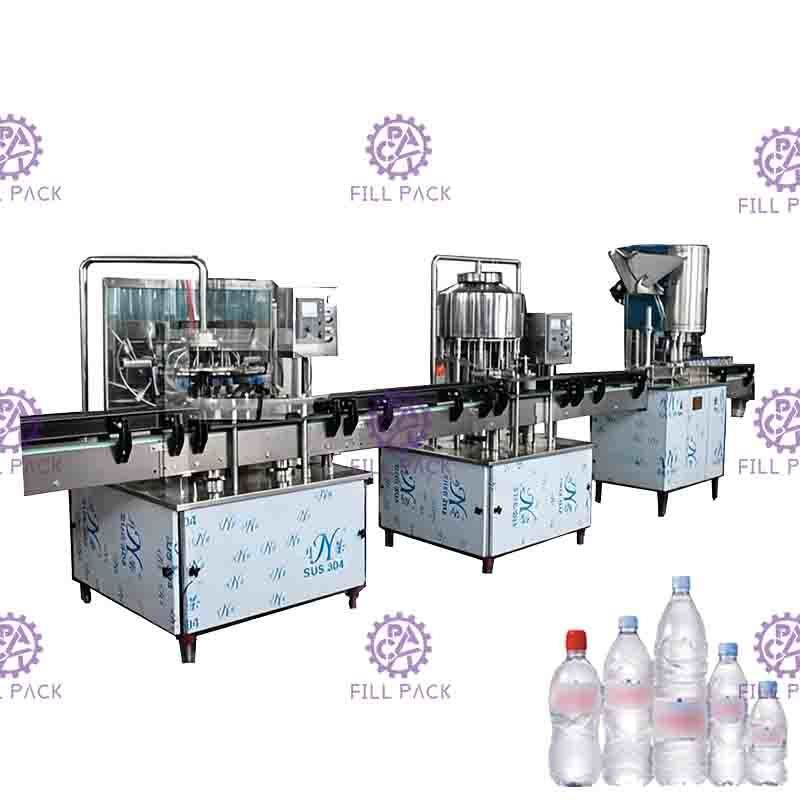

2000BPH Monoblock Mineral Rinsing Filling Capping Machine Linear Type

2000BPH non gas water bottling line

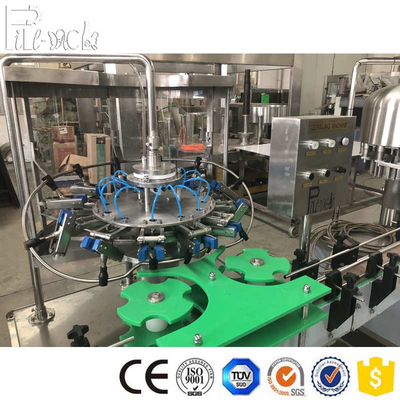

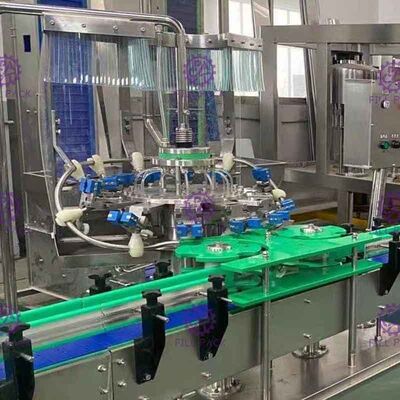

Rotary bottle washer



Principle:

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The rinser is the ideal choice for drink factories of small and middle size.

The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station.



The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.



Parameters:

Rising heads: 12 pcs
Capacity: 0-3000BPH (each bottle rinsing time 4s)
Power: 0.92KW
Dimension: 1050*950*1700mm
Weight: 700KG
Applicable bottle: D∮50-100mm,H 50-350mm

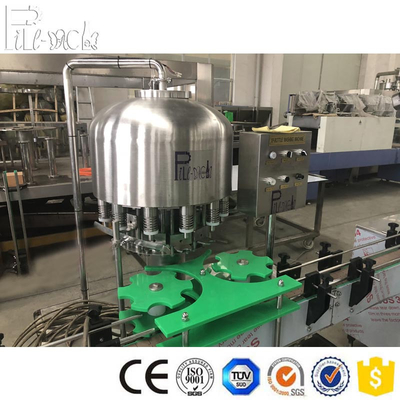

Normal pressure filler



Principle:

This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non carbonated drink. It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.



The bottles will be taken into filler by conveyor, the dia plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop.



The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes.



Parameters:

Filling heads: 12 pcs
Power: 1.1KW
Dimension: 1100*1050*1850mm
Weight: 800KG

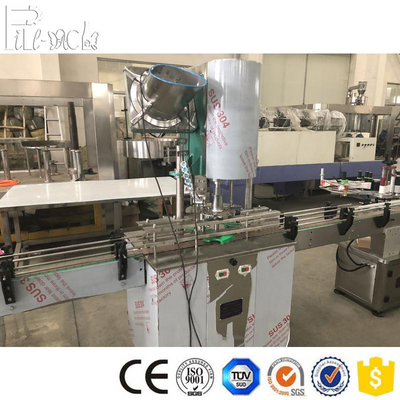

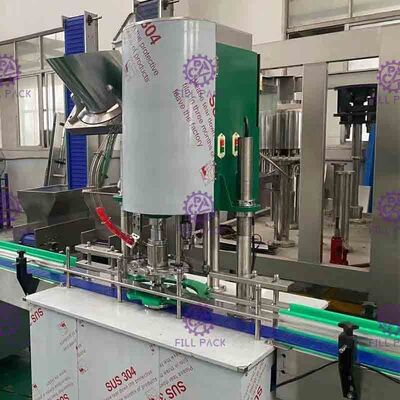

Screw cap capping machine



Principle:

The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping.



The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation. The whole machine is made from SUS304, long shelf time.



Parameters:

Capping head: 1 pc
Power: 1.1KW
Dimension: 1000*850*2000mm
Weight: 600KG
