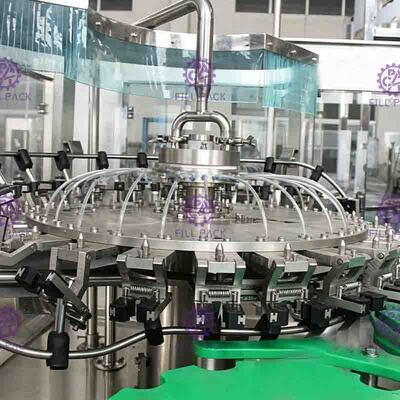

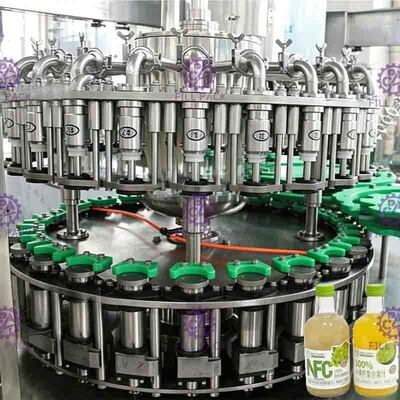

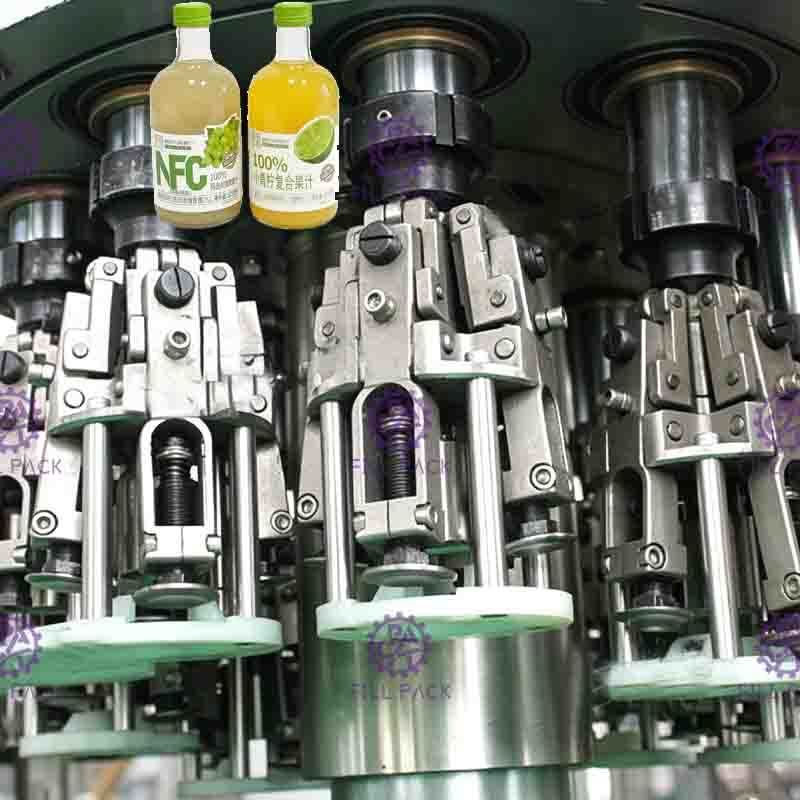

Full Auto Glass Bottle Liquid Filling Machine , Fruit Juice Filler 8000BPH
Product Details:
Place of Origin: | China,JiangSu,Zhangjiagang |
Brand Name: | FillPack |
Certification: | CE & ISO & TUV & SGS |
Model Number: | RCGF24-24-8 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case Package |
Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
Payment Terms: | TT & L/C |
Supply Ability: | 20 sets/month |
Detail Information |
|||
Color: | Silver Gray | Electrical Brand: | Mitsubishi, OMRON, SIEMENS |
---|---|---|---|
Capacity: | 6000-8000BPH | Cap Style: | Metal Caps |
Suitable Bottle Size: | 0.3-2L Glass Bottle | Control: | PLC Control With Touch Screen |
Highlight: | 8000BPH aseptic juice filling machine,Metal Caps high speed filling machine,Metal Caps Liquid Filling Machine |
Product Description
Full Auto Glass Bottle Liquid Filling Machine , Fruit Juice Filler 8000 Bottles Per Hour High Speed
Quick Detail:
Name: Full Auto Glass Bottle Fruit Juice Filling Machine 8000 Bottles Per Hour High Speed
Material: Food stage stainless steel
Control: PLC & Touch screen control
Capacity: 6000-8000bph
Suitable Bottle: Glass bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
Description:
1. The full auto glass bottle fruit juice filling machine is used for green tea, black tea, oolong tea, juice drink filling and sealing
2. It integrates washing, filling and capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
3. The automation is high. It is good equipment for choosing hot drink bottling machine.
4. The juice machine adopts block bottle-neck hanging work state design and bottling valve rise drop design. It can meet the requirements of hot bottling of below 95 degrees Celsius. It is suitable all kinds of glass bottles.
5. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier.
6. The main juice drink filling machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Specifications:
Model | RCGF12-12-4 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
Production(B/H)(500ml) | 4000-5000 | 6000-8000 | 8000-12000 | 12000-15000 | 16000-20000 |
Bottle standard | Neck: φ50-100mm; Height: 150-320mm | ||||
Water pressure of washing bottle | 0.18-0.25Mpa | ||||
Water consumption for washing bottle(kg/h) | 1300 | 2000 | 3000 | 4000 | 5000 |
Spraying position | 4 | 7 | 10 | 14 | 18 |
Dripping bottle position | 3 | 5 | 8 | 10 | 15 |
Filing precision | +5MM | ||||
Gas source pressure | 0.4Mpa | ||||
Gas consumption (m³/min) |
0.3 | 0.4 | 0.5 | 0.7 | 0.8 |
Total power(kw) | 4.2 | 4.5 | 5 | 6.2 | 7.8 |
Total weight(T) | 2 | 2.5 | 3 | 4 | 6 |
Dimension (L*W*H)(mm) | 2100*1600*2100 | 2500*1750*2100 | 2700*2100*2100 | 3500*2100*2100 | 3800*2200*2200 |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
