Carbonated processing Soft Drink Filling Line with auto connection 8000BPH

Carbonated processing Soft Drink Filling Line with auto connection 8000BPH

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DXGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Production Capacity: (350ML) B/h 8000 Washing Pressure (MPa): 0.2-0.25
Filling Pressure (MPa): 0.15-0.35 Motor Power (Kw): 1.5+0.55 +0.12
Overall Dimensions (L×W×H) Mm 2300×1600 ×2500: 2300×1600 ×2500 Weight (kg): 2800
Highlight:

electric filling machine

,

csd filling machine

Product Description

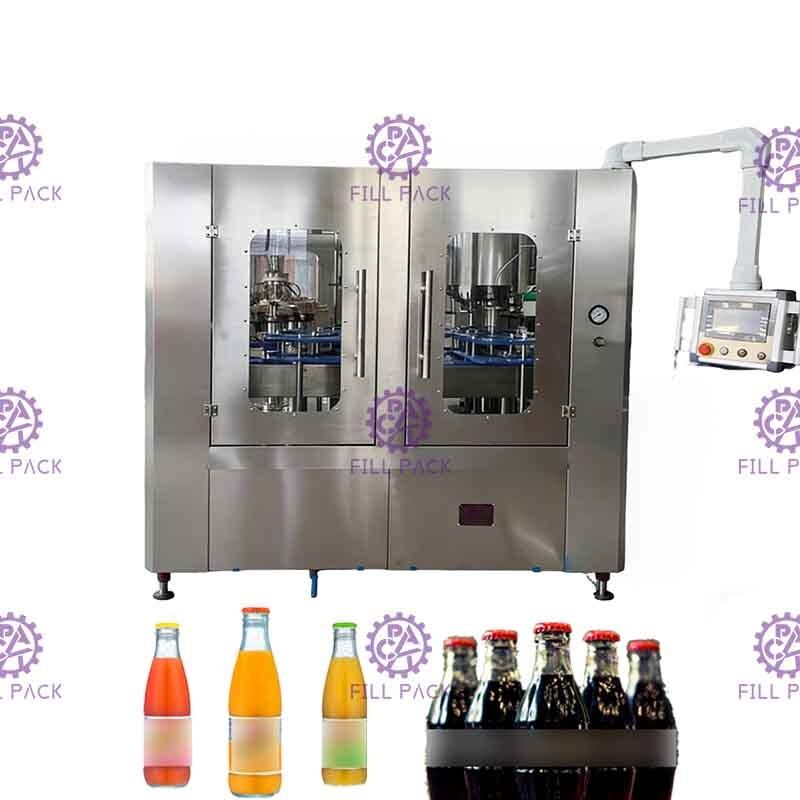

Carbonated processing Soft Drink Filling Line with auto connection 8000BPH



Quick Detail:



Name: Food Grade Soft Drink Filling Line Glass Bottle Filler Machine Stainless Steel

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: Glass bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:



1. This series equipment is used in producing all kinds of carbonated drink contained with glass bottle. Washing, filling, sealing can be carried out on the same machine. The design of the machine is scientific and reasonable. The appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high.

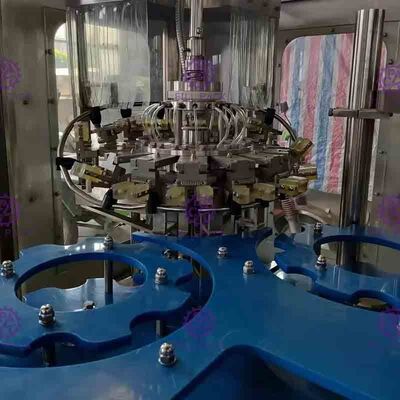

2. The advanced technology from Germany and Italy are employed. The speed of filling is fast and the liquid amount is controlled accurately. The filling device can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing technology is used in the system.

3. Pneumatic value and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.

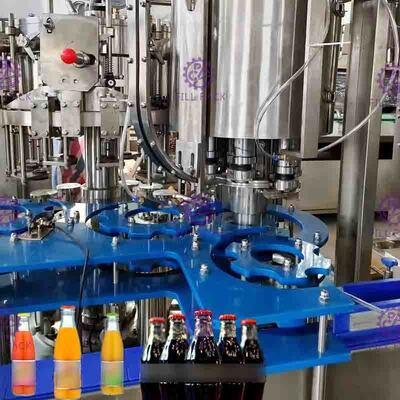

4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed. The caps can’t be damaged, the capping is reliable.

5. Horizon swirl air power caps sorting device is used to avoid damaging the surface of caps, and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.

6. The whole machine is controlled by PLC with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or caps are not available, the machine can be stopped automatically.





Specifications:



Model (DXGF) 12-12-5 18-18-6 24-24-8 32-32-8 40-40-10 50-50-12 60-60-15
Number of washing, filling, capping heads 12-12-5 18-18-6 24-24-8 32-32-8 40-40-10 50-50-12 60-60-15
Suited bottle specification (mm) Φ=50-100 H=170 (330-1500ML) Φ50-Φ110 H=160-340

Production capacity

(350ML)
b/h

2000-
4000
4000-
6000
8000-
10000
10000-12500 12500
-15000
16000
-20000
20000
-24000
Washing pressure
(MPa)
0.2-0.25 0.2-0.25
Filling pressure
(MPa)
0.15-0.35 0.15-0.35 0.15-0.35 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4

Motor power

(Kw)

1.5+0.55
+0.12
2.2+0.55
+0.18
3+0.55
+0.18
5.5+0.55
+0.18
7.5 11 15
Overall dimensions
(L×W×H)
mm
2300×1600
×2500
2600×1920
×2550
3100×2200
×2800
3850×3000
×2850
4850×3800
×2750
5750×3550
×2750
6500×5500
×2750
Weight (kg) 2800 3650 4800 6800 8650 10500 12800











Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
