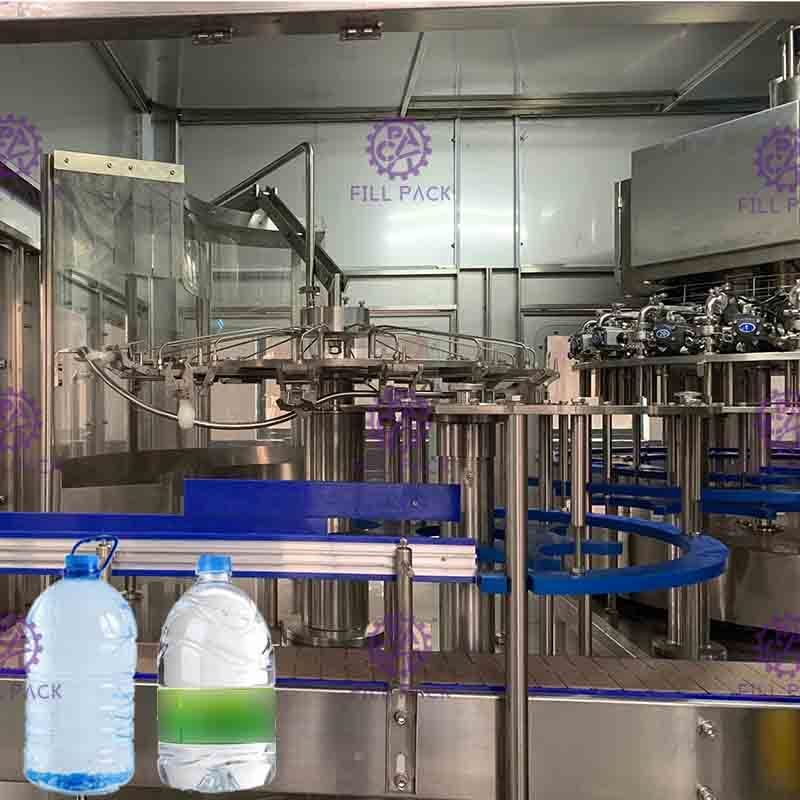

Full Automatic 3 In 1 Drinking Water Filling Plant For 4.5L / 5L PET Bottle

Full Automatic 3 In 1 Drinking Water Filling Plant For 4.5L / 5L PET Bottle

Full Automatic 3 In 1 Drinking Water Filling Plant For 4.5L / 5L PET Bottle

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: CGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 Sets Per Months
Contact Now
Detailed Product Description
High Light:

water filling equipment

,

liquid filler machine





Full Automatic 3 In 1 Drinking Water Filling Plant For 4.5L / 5L PET Bottle





Quick Detail:



Name: Full Automatic 3 In 1 Drinking Water Filling Plant For 4.5L / 5L PET Bottle

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 1000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 4.5-5L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:

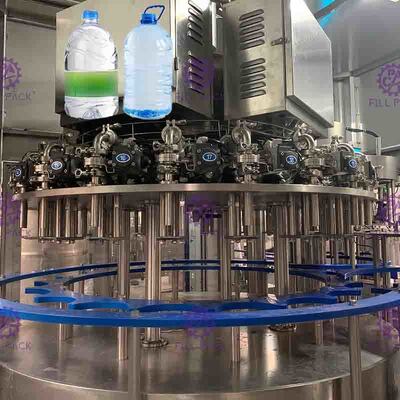

1. The full automatic 3 in 1 drinking water filling plant For 4.5L / 5L PET bottle is used in production of non-carbonated drink of drinking and pure water in plastic bottles. Bottle washing, water filling and bottle capping are integrated in one machine.

2. The whole machine has scientific and reasonable design, beautiful appearance, complete functions, easy operation and maintenance, a high degree of automation.

3. The most advanced technology Italy and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. Spring cramps are used in the bottle washing process.

4. The empty can be turned over 180 degree along the conveying rail. There two times of internal and external washing, the efficiency of bottle washing is high. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

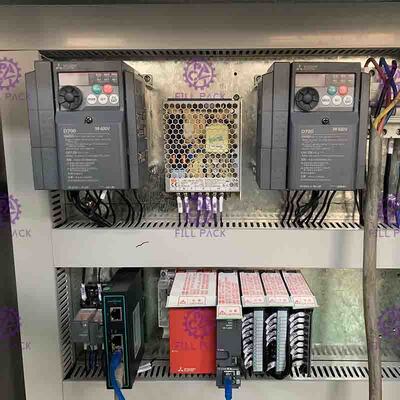

5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically.

6. The filling and capping will be stopped when there is no bottle. When bottles are cramped wrongly or when caps are not available, the mineral water filling machine can be stopped automatically.

7. The frequency changing technology is used to adjust the operation speed stepless. The production capacity can be displayed digitally and can be adjusted conveniently.





Specifications:



Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Rinsing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 6 6 8 10

Rated

Capacity

(500ml)

1000BPH 2000BPH 3000-4000BPH 4000-6000BPH 6000-8000BPH
Overall Size 1900*1420* 2000mm

2200*1600*

2300mm

2450*1900*

2300mm

2750*1180*

2400mm

4000*2300*

2300mm

Weight 1.5T 2.2T 3.0T 4.0T 8.0T
Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized Customized





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project



Full Automatic 3 In 1 Drinking Water Filling Plant For 4.5L / 5L PET Bottle
