8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine

8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine

    • 8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine
    • 8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine
    • 8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine
    • 8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine
  • 8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: CGF18-18-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description

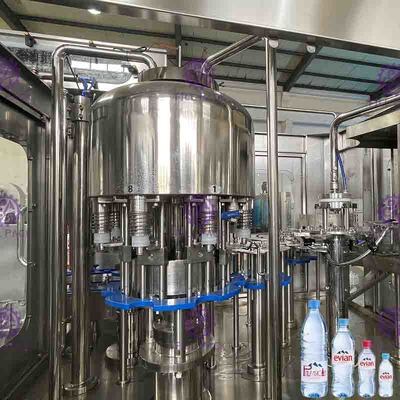

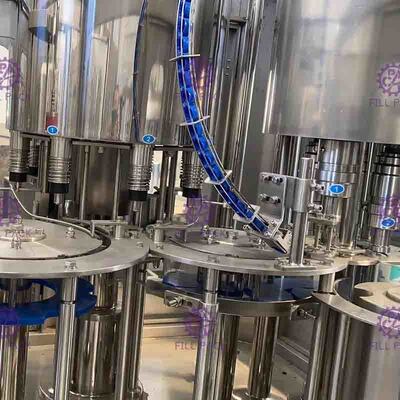

    8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine





    Quick Detail:



    Name: 8000BPH Liquid Bottle Filling Machine 3 in 1 Rinsing Filling Capping Machine

    Material: Food stage stainless steel
    Control: PLC & touch screen control
    Capacity: 8000-10000bph
    Suitable Bottle: PET bottle
    Bottle Volume: 0.2-2L
    Dimension: By order
    Function: Washing filling capping 3 in 1
    Technology: Germany & Japan
    After-sales service provided: Engineers available to service machinery overseas





    Description:



    1. This machine is mainly applied for filling drinking water / mineral water. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatics. It is suitable for PET bottle and plastic bottle to fill drinking water, mineral water, pure water, if add temperature control device, even suitable for hot filling.

    2. The adjustment for bottle type of each unit is fulfilled by turning handle; it is simple, easy and quick. The filling method applies new micro pressure filling so that the filling speed become more quick and stable.

    3. Compared with similar machines, it has higher yield, more benefit. The machine applies advance Mitsubishi programmable controller (PLC) to control machine’s auto-running, the input bottle chain way changes its speed by frequency converter. Cooperate more stable and reliable.

    4. As each unit’s running is detected by photoelectric elements. So it has high automation and simple operation. On this basis, changing filling unit can change to low vacuum filling method and isotonic filling method. Low vacuum filling method (Z type machine) is applied for glass bottle to fill alcoholic liquor; soy etc. and the capping method can be aluminum anti-theft cap and plastic cap. The isotonic filling method (D type machine) is applied for PET bottle; plastic bottle to fill CO2 contained drinks.

    5. It is the ideal top choice equipment of drinking water production enterprise.





    Specifications:

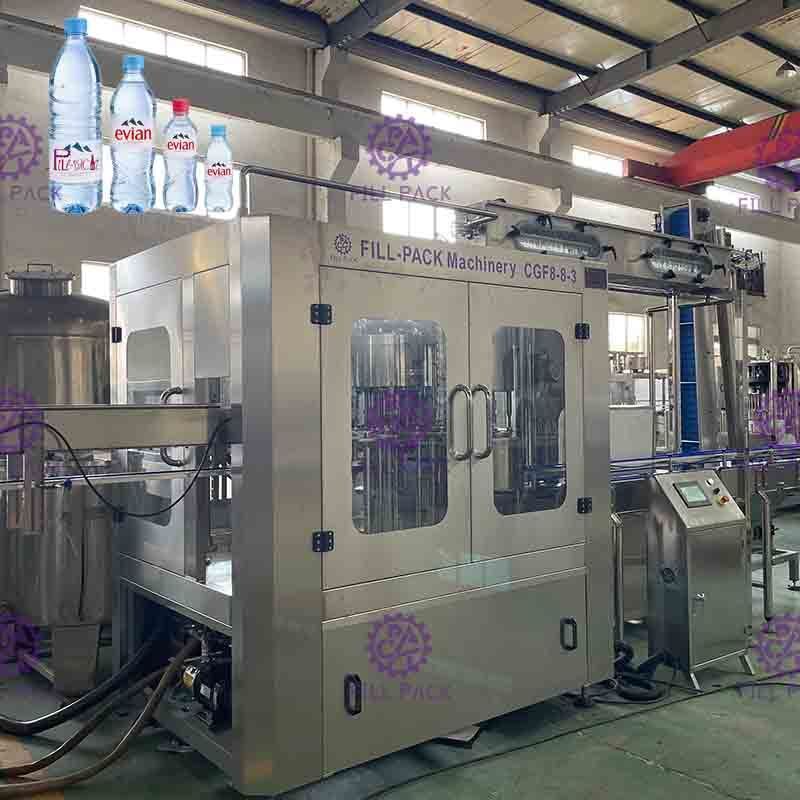

    Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Rinsing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 6 6 8 10

    Rated

    Capacity

    (500ml)

    2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
    Overall Size 1900*1420* 2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T
    Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized Customized





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Market Distribution:



    Market Revenue(Previous Year) Total Revenue (%)
    Africa confidential 40%
    Middle east confidential 15%
    America confidential 5%
    Euro confidential 4%
    Middle Aisa confidential 3%
    South-east Asia confidential 3%
    Domestic confidential 30%
