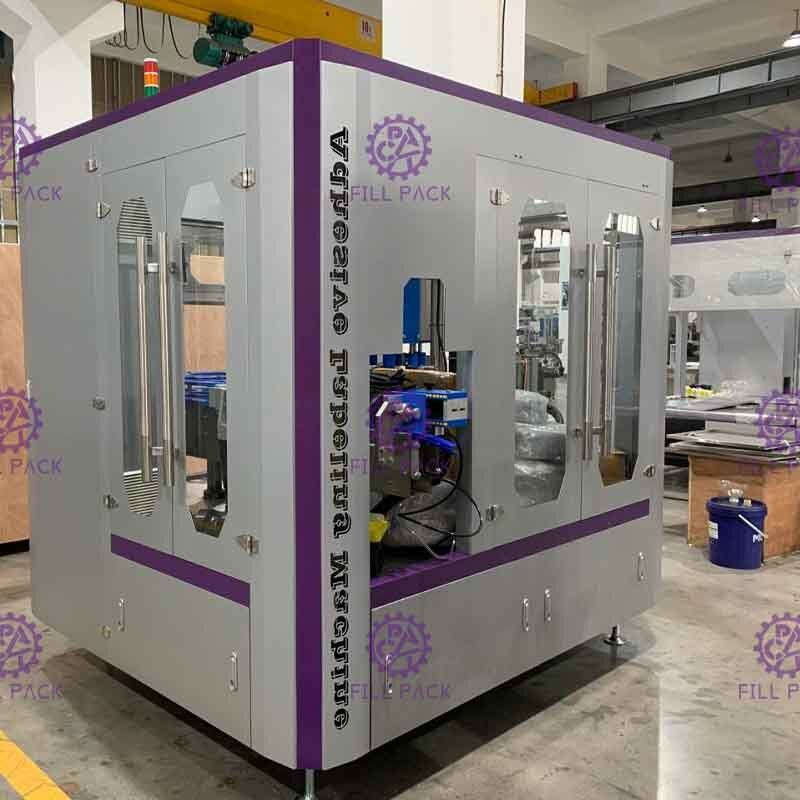

Rotary Type Self Adhesive Sticker Labeling Machine For Beer Glass Bottle

Rotary Type Self Adhesive Sticker Labeling Machine For Beer Glass Bottle

    • Rotary Type Self Adhesive Sticker Labeling Machine For Beer Glass Bottle
    • Rotary Type Self Adhesive Sticker Labeling Machine For Beer Glass Bottle
  • Rotary Type Self Adhesive Sticker Labeling Machine For Beer Glass Bottle

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: JY-15JSB
    Condition: New
    Application: Plastic bottle / Glass bottle round containers
    Automation: Automatic
    Voltage: Customize
    Warranty: 1 year
    After-sales service provided: Engineers available to service machinery overseas
    Label type: Adhesive stick label / paper label
    Operation mode: Automatic / manual

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/sets
    Packaging Details: Sea worthy package
    Delivery Time: 30 days after deposit receipt
    Payment Terms: TT/LC/Wertern union
    Supply Ability: 1 set/sets/month
    Contact Now
    Detailed Product Description

    Rotary Type Self Adhesive Sticker Labeling Machine For Beer Glass Bottle


    Quick Detail:

    1, Bottle type: Beer glass bottle

    2, Label type: Adhesive labels
    3, Single label labeling machine
    4, Connect to production line
    5, Automation: Automatic labeling machine


    Description:


    The machine, known as single label labeling machine, is a rotary labeling machine designed to paste body labels. It uses a motor adopting a variable frequency speed regulating system and a worm reduction gearbox as the main drive, and is provided with pneumatic and electric control systems. Therefore, stepless speed change function is available for the machine. The speed is adjusted based on the number of fed bottles so that it corresponds to output change. Meanwhile, safe operation of the machine can be ensured.



    The operating system is provided in the operating box in the front of the machine. For layout and wiring numbers of the electrical operation box elements, refer to the Electrical Control Wiring Diagram. For layout of the electrical control elements, refer to the Automatic Control Principle Electrical Wiring Diagram. The main circuit of the machine uses 380V three-phase AC power supply. The control circuit uses 48V power supply, and the signal circuit uses 6.3V power supply. Both the 48V and 6.3V AC voltages are supplied by a control transformer.



    In order to ensure labeling quality, the specification and quality of the labeling glue, label paper and bottles should conform to relevant national standards to meet the requirements of high-speed production.




    Construction:

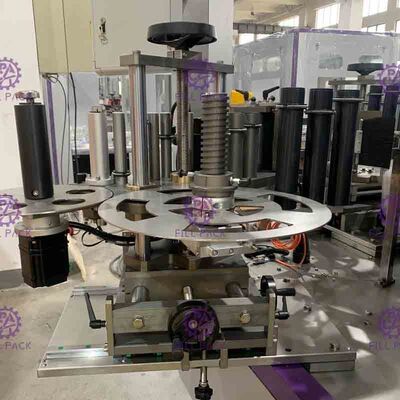

    The machine consists of the bottle conveying belt, inlet and outlet field spiders, label table (including the glue roller device, glue spreader and pick-up device, label gripping rotary drum and label paper box device), .bottle pressing turntable device, brush device, bottle holding rotary table, glue pump, label paper releasing switch, compressed air system, quick pneumatic connector and gas pipe connector, stand, main drive, electrical control and operating device.





    Features:

    1. Rotary type labeling machine

    2. Adopting a variable frequency speed regulating system and a worm reduction gearbox

    3. Stepless speed change function is available for the machine
    4. The bottle conveying belt is of separate driving structure

    5. High capacity




    Specification


    Designed production capacity 18000-2000BPH
    Variable frequency speed regulating motor

    Model: Y1000L2-4

    Rated power: 4kw

    Number of labels to be pasted

    3

    Body label: 1

    Number of label stations:

    1

    Number of pick-up device heas: 8

    Number of gripping device heads: 6

    Number of glue stations 1
    Number of bottle holding and pressing heads 15
    Compresed air consumption: 0.3m3/min; pressure: 294.2Kpa
    Dimension: 3300*1960*1860mm
    Leg Dimension 1070*960mm
    Net weight 2t
    Adhesive Adhesive using casein as the substrate, or other chemical glues suitable for pasting tin foil paper trademarks, such as polyvinyl alcohol, etc.
    Label paper For standard bottles, the maximum body label width is less than or equal to 130mm. The fiber direction of the label paper should be perpendicular to the axial direction. The surface of the label paper should have remarkable water absorption. After water absorption, the correct curling direction should be departing from the bottle, and the axis of bending should be perpendicular to the axis of the bottle. Weight of label paper: for body label: 90-110g/m2; dimension tolerance: ±0.5mm.



    Competitive Advantage:

    1. One year warranty for the whole system
    2. Free equipment installation and debugging
    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
    4. Every 3 years, we can help to overhaul the machine free (Labor)
    5. We can provide internship service and help you train the operator and mechanic
    6. Free production technology and process configuration
    7. We can help you to design the production line, workshop and provide turn-key project
