Stainless Steel Bottle Adhesive Labeling Machine PLC Controlled System
Product Details:
Place of Origin: | ZhangJiaGang,JiangSu,China |
Brand Name: | Fill pack |
Certification: | CE,ISO9001 |
Model Number: | DWT-630 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set for bottle adhesive labeling machine |
---|---|
Price: | USD$5000-7000/set |
Packaging Details: | sea worthy packing |
Delivery Time: | 5-15 days |
Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
Supply Ability: | 15 sets / Month |
Detail Information |
|||
Model: | DWT-630 | Key Word: | Bottle Adhesive Labeling Machine |
---|---|---|---|
Main Material: | Stainless Steel | Labeling Accuracy: | ±1mm |
Labeling Speed: | 35bottles/min | Dimension: | 2300×1700×1700mm |
Applicable Power: | 220V 50/60HZ | Weight: | 330kg |
Automatic Grade: | Automatic | Warranty: | 1 Year |
Highlight: | automatic labeling machine,sticker labeling machine |
Product Description

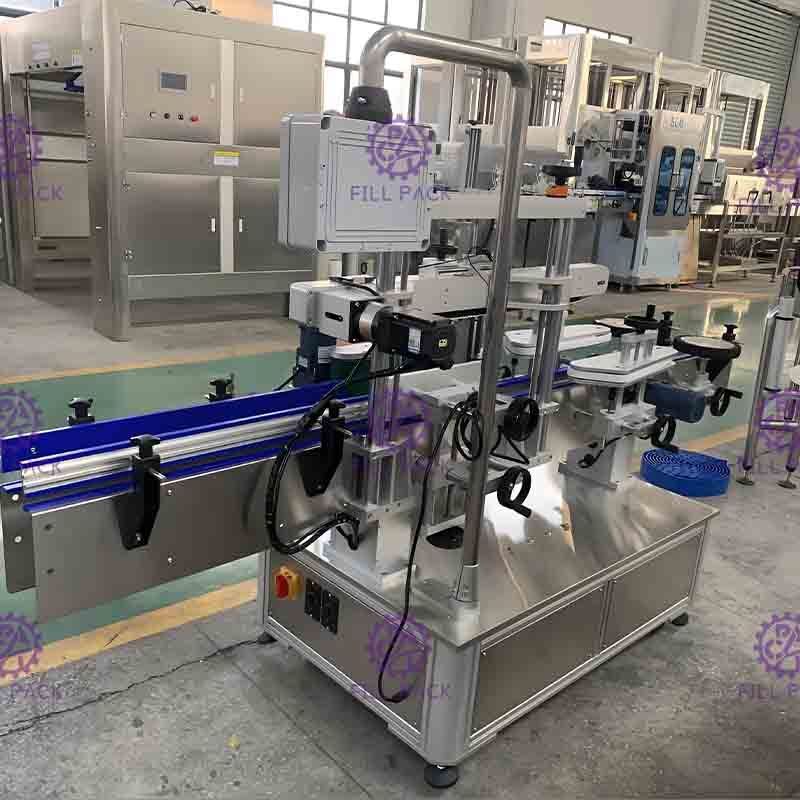

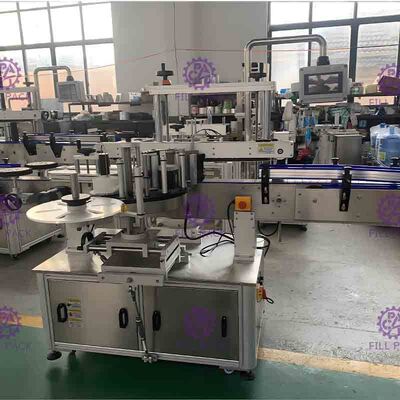

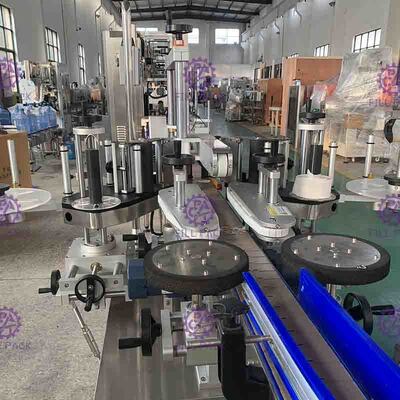

PLC automatic controlled system bottle adhesive labeling machine for bottles
Product Description
The bottle adhesive labeling machine is applied for labeling for side flat face or side arc face of flat bottle, round bottle or boxes, such as the single-side labeling of cosmetic flat bottle or packaging boxes. It increases productivity and improves the quality of packaging.Labeling at specific label locations and finding special nodes above the label.
Detailed Images
-
Labeling accuracy:±1mm (Do not contain the tolerance of product and label itself).
-
Labeling speed:35bottles/min(Associated with the product).
-
Dimension of applicable product:30≤width≤90mm,20≤length≤250mm, 60≤height≤280mm
-
Dimension of applicable label:20≤width≤160mm,20≤length≤200mm.
-
Dimension of whole machine:2300×1700×1700mm(length × width × height).
-
Applicable power:220V 50/60HZ.
-
Weight of machine:330Kg.
Main Configuration for bottle adhesive labeling machine:
1 PLC control system Siemens (Germany)
2 Servo motor Panasonic (Japan)
3 Servo motor driver Panasonic (Japan)
4 Frequency changers Yineng (Taiwan)
5 Photoelectricity LEUZE(Germany)
6 labels photoelectric sensor LEUZE(Germany)
7 Touches screen 7INCH Kinco(Taiwan)
8 Conveyor Motor Domestic
9 Bearings Japan NSK
10 Stainless steel material Plastic steel
11 Aluminium alloy Surface anode gush arenaceous technology
Delivery time
The bottle adhesive labeling machine will be made within 25 working days after the bottle design are confirmed.
Payment
30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% T/T before shipment.
Guarantee
We response for one year warranty for the bottle adhesive labeling machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client’s company with client’s provision for flight charge and accommodation. Help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.
