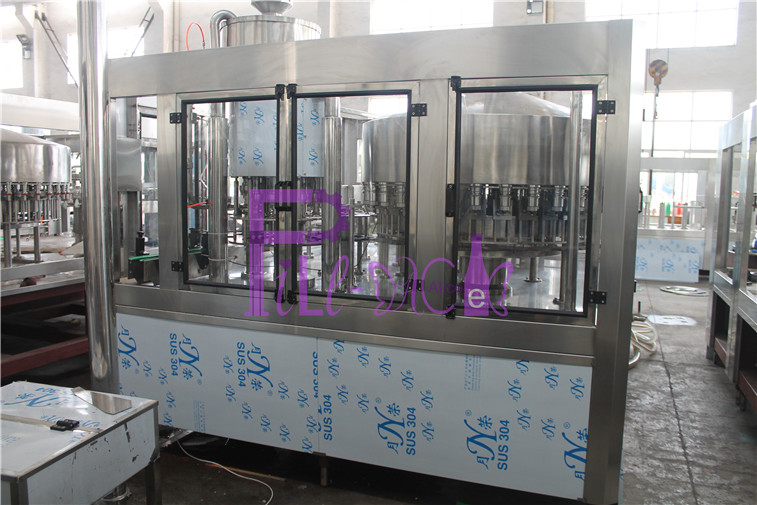

Aseptic Round Bottle Drinking Water Filling Plant , Liquid Filler Equipment

Aseptic Round Bottle Drinking Water Filling Plant , Liquid Filler Equipment

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: XGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

High Light:

bottle filling equipment


water filling equipment

Product Description



Aseptic Round Bottle Drinking Water Filling Plant , Liquid Filler Equipment



Quick Detail:


Name: Aseptic Round Bottle Drinking Water Filling Plant , Liquid Filler Equipment

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 10000-15000bph

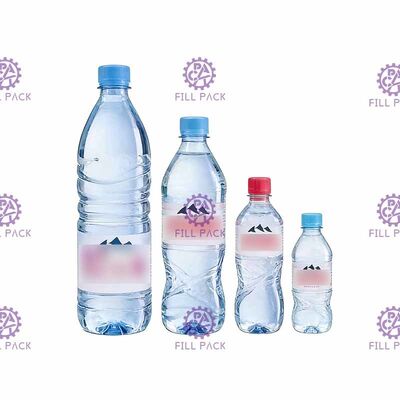

Suitable Bottle: PET bottle
Bottle Volume: 0.2-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas

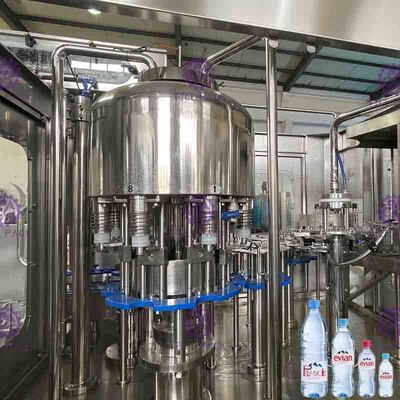

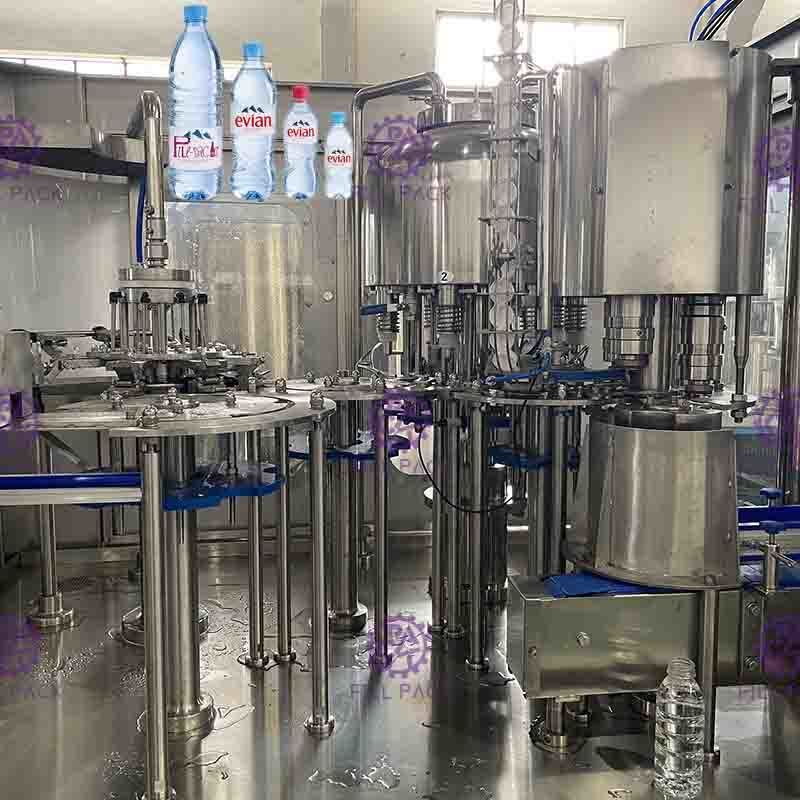

1. The aseptic round bottle drinking water filling plant, liquid filler equipment is used in production of non-carbonated drink of minerals and drinking water in plastic bottles. Bottle washing, drinking water filling and bottle capping are integrated in one machine.

2. The whole machine has scientific and reasonable design, beautiful appearance, complete functions, easy operation and maintenance, a high degree of automation.

3. The most advanced technology Italy and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided. Spring cramps are used in the bottle washing process.

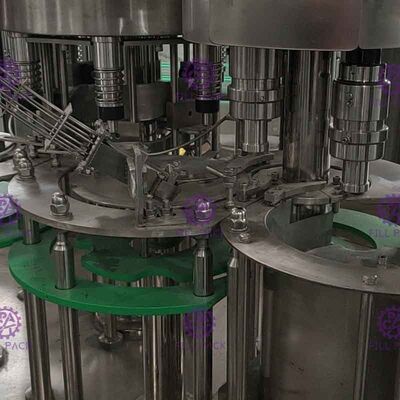

4. The empty can be turned over 180 degree along the conveying rail. There two times of internal and external washing, the efficiency of bottle washing is high. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically.

6. The filling and capping will be stopped when there is no bottle. When bottles are cramped wrongly or when caps are not available, the mineral water filling machine can be stopped automatically.

7. The frequency changing technology is used to adjust the operation speed stepless. The production capacity can be displayed digitally and can be adjusted conveniently.

8. It is different from normal 3 in 1 drinking water filling machine, it is high speed model, the screw capping machine is different from other ones, the packing speed can be promoted by 15%, the 24 heads model can meet the capacity of 15000 bottles per hour, it is the most cost-effective machine for drinking water production company.





Model XGF12-12-4 XGF18-18-6 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-12
Capacity(500ml) 4000b/h 6000b/h 10000b/h 14000b/h 18000b/h 24000b/h
Bottle Shape Round or Square
PET Bottle(mm) (Bottle Diameter): φ50 - φ110mm (Height): 150-340mm
Cap: PE Screw Cap
Filling Precision: ≤±5mm
Filling Pressure:(Mpa) 0.15-0.35
Rinsing Pressure:(Mpa) 0.2-0.25
Total power(Kw) 3.58 4.68 6.58 9.68 9.68 10.8



Competitive Advantage:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project



Company description


    Zhangjiagang city Yufeng beverage machinery Co.,Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.


    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.


    Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
