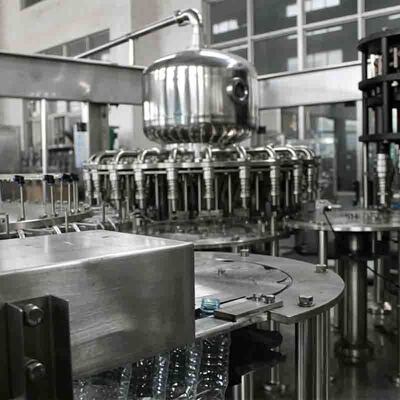

0.4Mpa 8000BPH Hot Filling Orange Juice Machine For Glass Jars With Twist Off Caps
|Place of Origin:||China,JiangSu,Zhangjiagang|
|Certification:||CE & ISO & TUV & SGS|
|Control:||PLC Control With Touch Screen|
|Processing:||Japan & Germany|
|Suitable Bottle Size:||0.3-2L Glass Bottle|
|Cap Style:||Plastic Screw Cap|
|Electrical Brand:||Mitsubishi, OMRON, SIEMENS|
|Warranty:||1 Year for Spare Parts|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||30 Working Days After Receiving Your Deposit Payment|
|Payment Terms:||TT & L/C|
|Supply Ability:||20 sets/month|
|Dimension (L*W*H)(mm):||2100*1600*2100||Total Weight(T):||2 Ton|
|Total Power(kw):||4.2||Gas Consumption (m³/min):||0.3|
|Gas Source Pressure:||0.4Mpa||Filing Precision:||+5MM|
0.4Mpa Orange Juice Filling Machine,
8000BPH Orange Juice Filling Machine,
twist off caps Hot filling Machine
Hot filling Orange Juice Filling Machine for glass jars with twist off caps
Name: Glass Bottled Orange Juice Filling Machine Automatic Tea Drink Bottling Equipment
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
1. This glass bottled orange Juice filling machine automatic tea drink bottling equipment is used in production of non-soda drink of fruit juice, fruit wine, minerals and pure water packed in plastic bottles. Washing, filling and capping are integrated in one machine which is called 3 in 1 hot filling machine for concentrated juice.

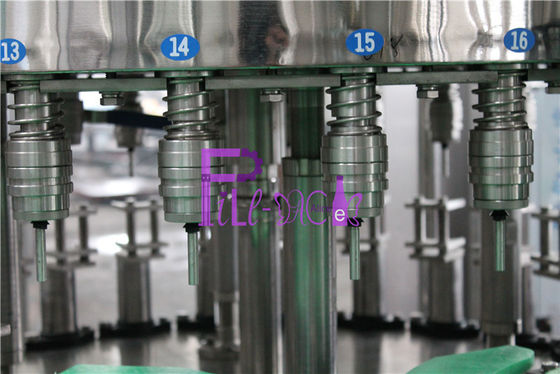

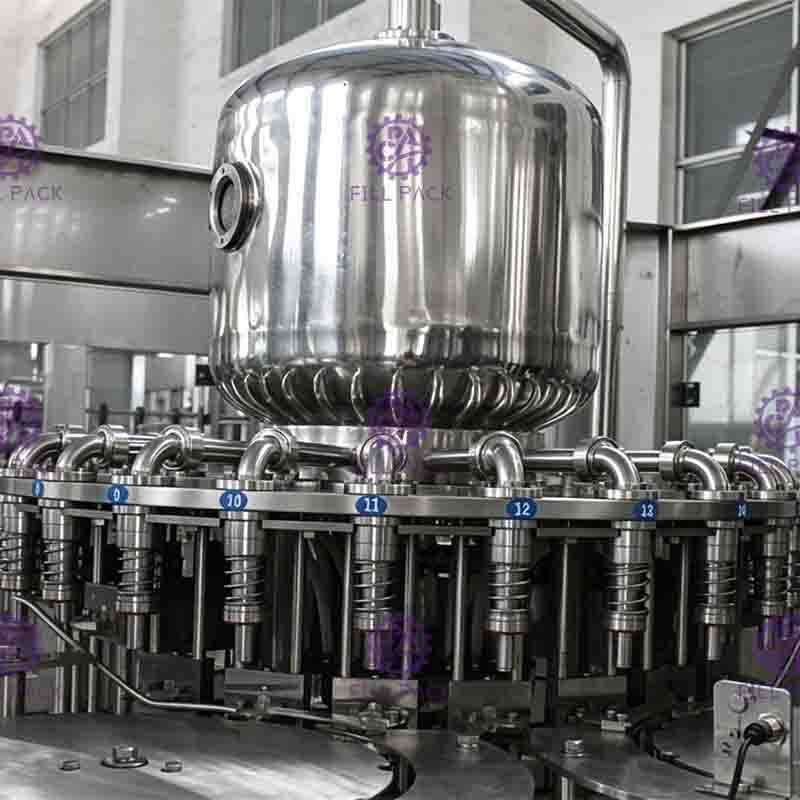

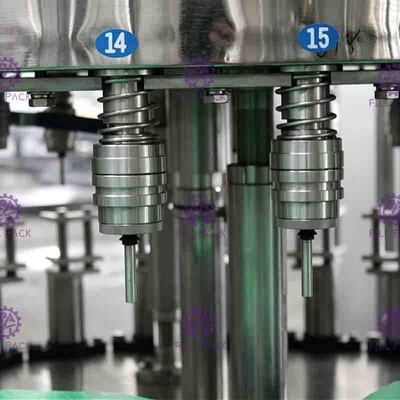

2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3. Spring cramps of the juice filling machine are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
6. The frequency changing technology is used to adjust the operation speed step by step. The production capacity can be displayed digitally and can be adjusted conveniently.
7. It is used for the plastic bottle juice processing, from the raw bottle coming across the machine, first the water wash the inner plastic bottle, then filling part, last the bottle capping part. At last the bottled fruit juice coming out.
|Bottle standard||Neck: φ50-100mm; Height: 150-320mm|
|Water pressure of washing bottle||0.18-0.25Mpa|
|Water consumption for washing bottle(kg/h)||1300||2000||3000||4000||5000|
|Dripping bottle position||3||5||8||10||15|
|Gas source pressure||0.4Mpa|
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Zhangjiagang City FILL-PACK Machinery Co., Ltd is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
please kindly click the play button to watch the video
