|Place of Origin:||China,JiangSu,Zhangjiagang|
|Automatic grade:||Automatic with PLC touch screen|
|Gurantee time:||1 year|
|Voltage:||Customised or 380V, 50HZ, 3Phase|
|Minimum Order Quantity:||1 set/pcs|
|Packaging Details:||Blanket cloth or wooden case as machine need|
|Delivery Time:||25-30 days|
|Payment Terms:||30% T/T deposit, 70% before shipment|
|Supply Ability:||30 sets/month|

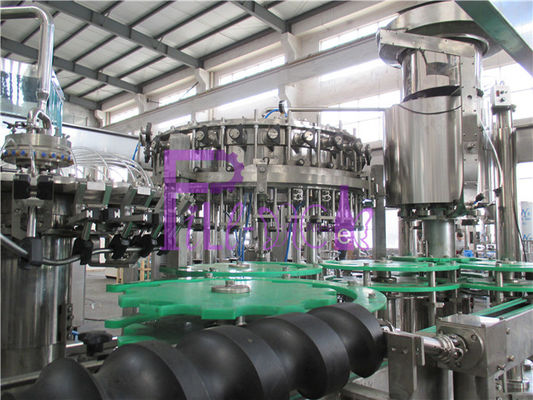

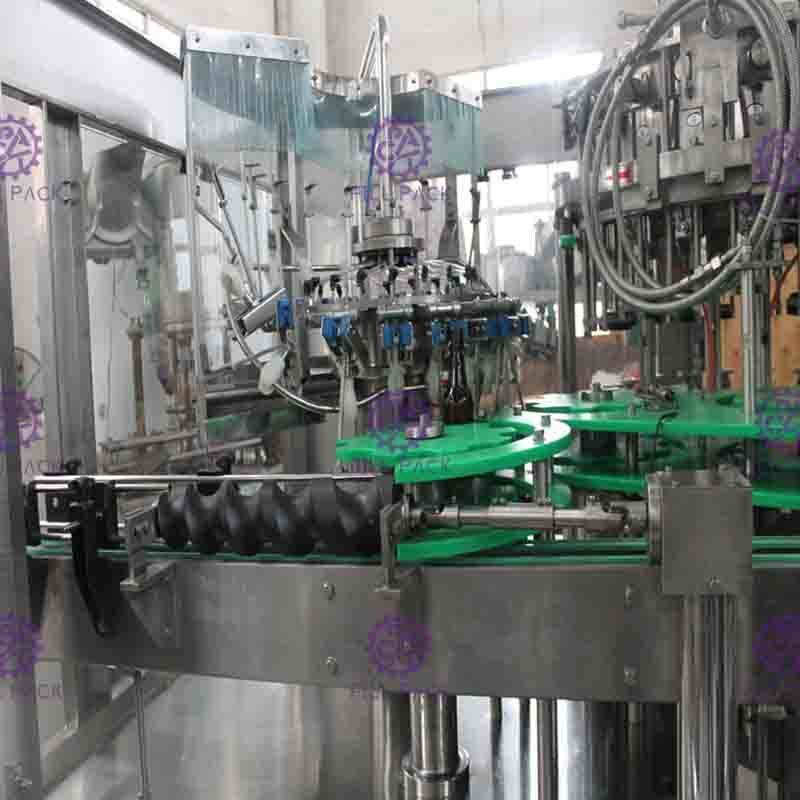

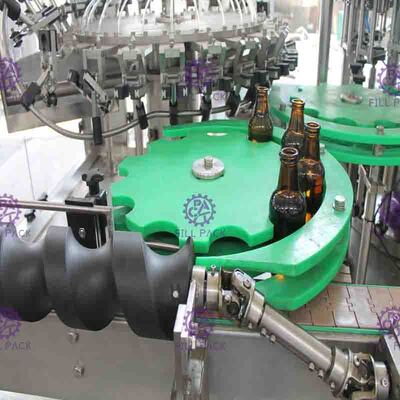

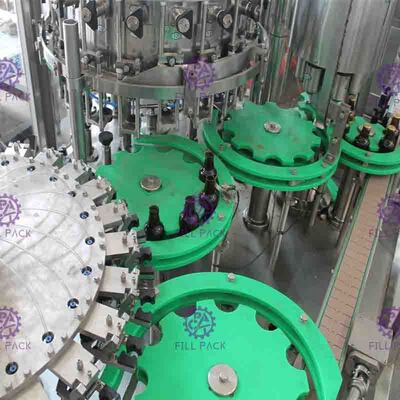

3 in 1 Glass Bottle Beer Washing Filling Sealing Machine , Bottle Beer Filling Line
1. Material: SUS304

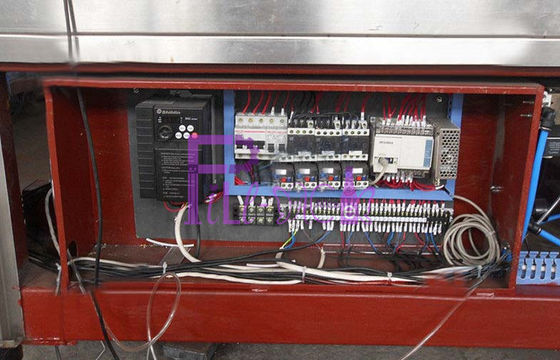

2. Automatic, PLC touch screen, speed adjustable
4. Glass bottle - crown cap
5. 24 washer heads, 24 filler heads, 8 sealer heads
6. 3 in 1 machine
7. Adopts the vacuum pump for pumping to guarantee the filling flavor and stock time

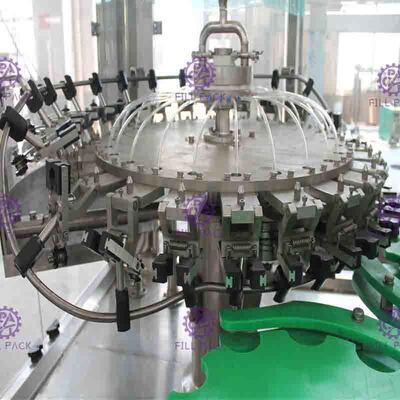

Bottle washing part:
Spring cramps are used in the bottle washing process.
The empty bottles can be turned over 180~ along the conveying rail.
There are two times of internal and external washing, the efficiency of bottle washing is high.

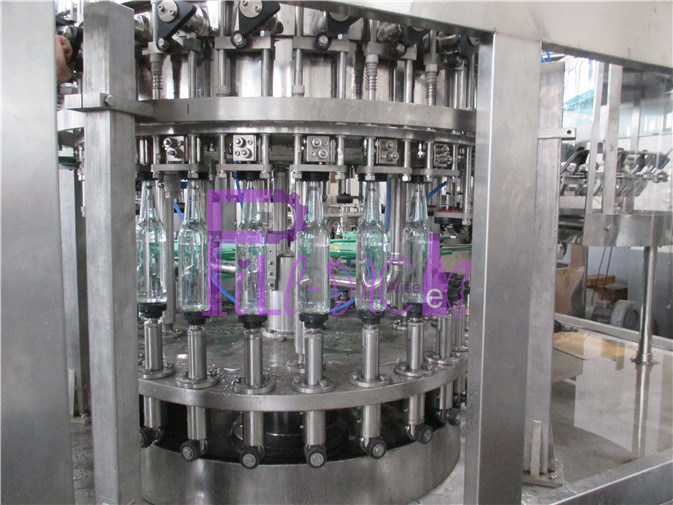

Bottle filling part:
The beer filling machine is designed with advanced technology.
The high quality of NanQing beer filling valve is adopted for filling the beer, with fast filling speed,
high filling precision, stable filling function, long life span to guarantee the quality.
The amount of liquid is accurately controlled and the dropping and leakage are avoided.
Bottle sealing part:

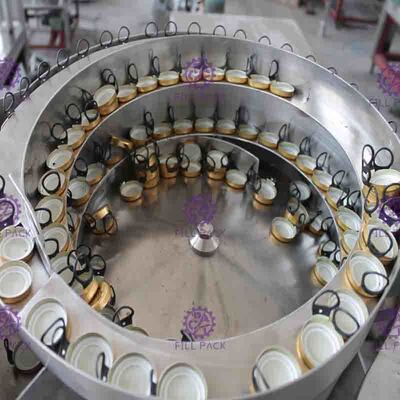

The crown cap pressing system is used for crown cap sealing. It is with automatic cap sorter,
cap loader, and cap sealing pressing head.
This set machine is not set with automatic cap lifter, manual put the caps into the cap sorter, then machine will sort it automatically.
It's used to filling beer in glass bottle - crown cap, with bottle washing, filling, sealing machine.
Widely used in every beer factory, beer production line.
|Production Capacity||4000-5000b/h (500ml)|
|Work principle||Balanced pressure|
|Filling valve||Special beer filling valve|
|Bottle standard||Glass bottle - crown cap|
|Applicable bottle diameter||40 -100mm|
|Applicable bottle height||120 -320mm|
|Standard||PLC touch screen|
|Overall Dimensions||2700×2000×2400 mm|
please kindly click the play button to watch the video
