1000BPH Automatic Carbonated Soft Drink Filling Machine 2L Bottle Soda Water

1000BPH Automatic Carbonated Soft Drink Filling Machine 2L Bottle Soda Water

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILLPACK
Certification: CE/ISO9001
Model Number: QS-12/DG-12/FXZR-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 17050USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Machinery Capacity: 1500BPH Applicable Bottle: D<90mm,H<300mm
Filling Heads: 12 Heads Capping Heads: 3
Filling Accuracy: ±1mm Bottle Type: Glass Bottle
Filling Material: Beer, Carbonated Drinks,Soda Water Driven Type: Electric
High Light:

1000BPH Carbonated Drink Filling Machine

,

Carbonated Soft Drink Filling Machine

,

12heads Carbonated Drink Filling Machine

Product Description

1000-1500BPH Automatic 0-2L Glass Bottle Pull Ring Cap Carbonated Beverage Soft Drink Soda Water Filling Machine
This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling carbonated beverage / soft drink. It is advanced in construction, steadily in performance, safe in operation, easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.

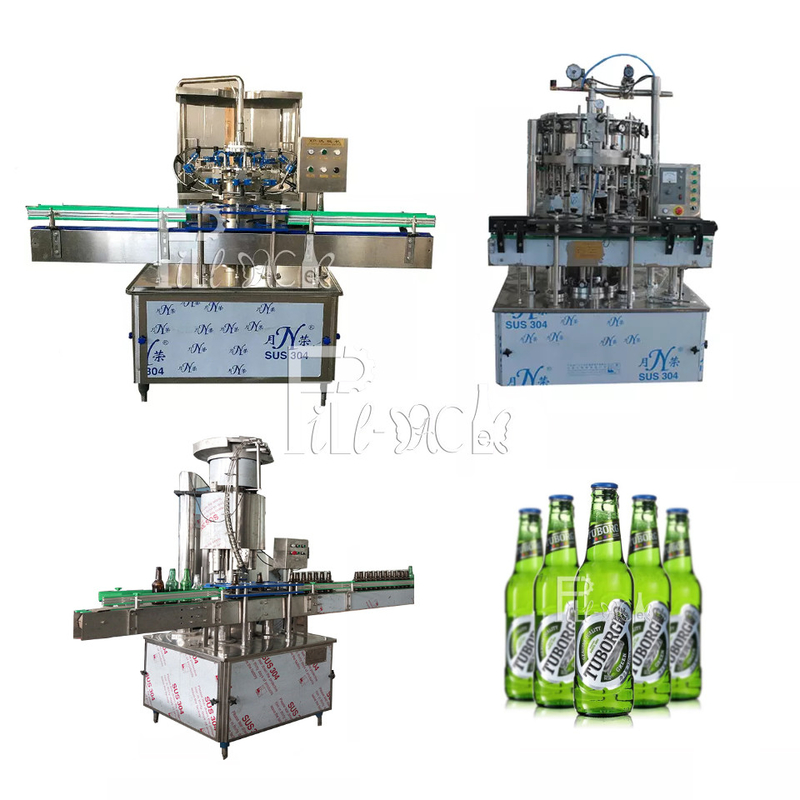

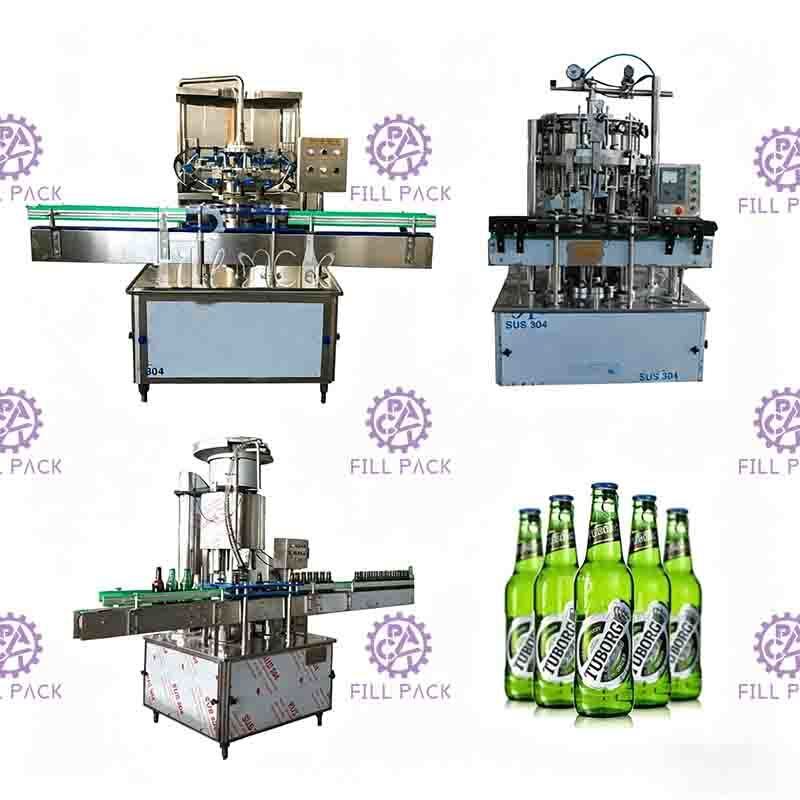

Technical parameters of split glass bottle beer filling machine:
1.1
Rotary bottle washer
QS-12
1050*1050*1900
1set
1.2
Isobaric filler
DG-12
1100*1050*1800
1set
1.3
Pull ring cap capping machine
FXZR-3
1000*750*2300
1set
1.4
Belt conveyor*4meters+motors*
/
/
1 suit

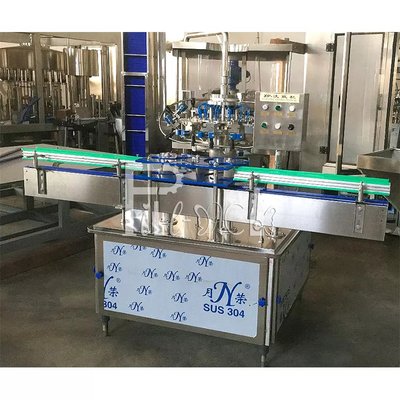

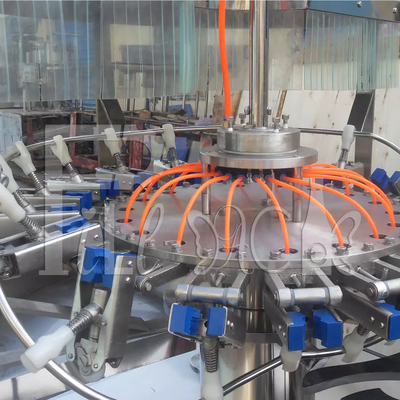

Rotary bottle washer:
Principle: This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

Parameters:
Rising heads: 12 pcs
Applicable bottle: D∮50-100mm,H 50-350mm
Capacity: 0-3000BPH (each bottle rinsing time 4s)
Power: 0.92KW Dimension: 1050*1050*1900mm
Weight: 450KG

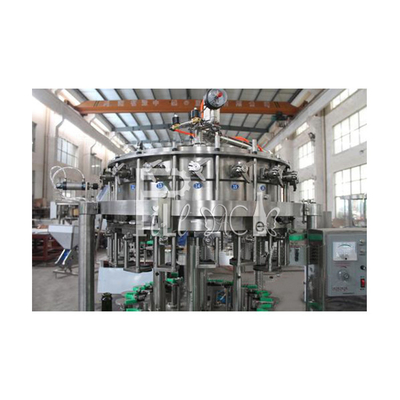

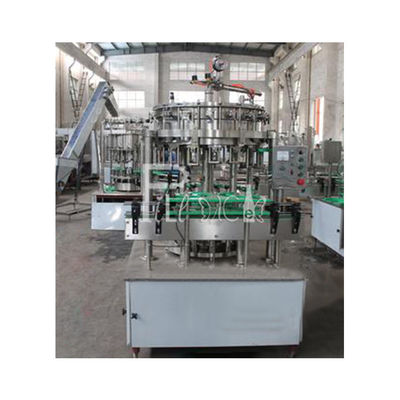

Filling part:
This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparkling wine , fruit tea and so on .It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.


Model : DG -12
Production Capacity: 1000-2000b/h
Bottle /standard: Glass bottle , PET bottle , Pop-top can
Applicable bottle: D∮90mm,H<300mm
Filling Pressure: 0.2-0.3Mpa
Filling Temperature
2-6 ℃
Power: 1.1kw
Overall Dimensions: 1100×1050×1800 mm
Weight : 1000kg

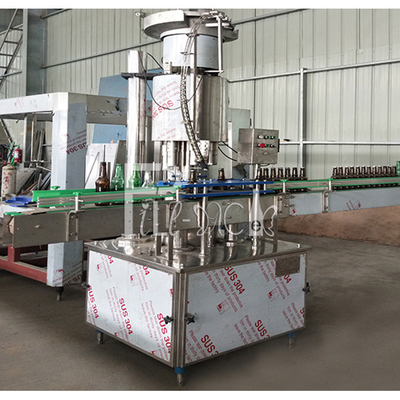

Capping part:
General specifications:

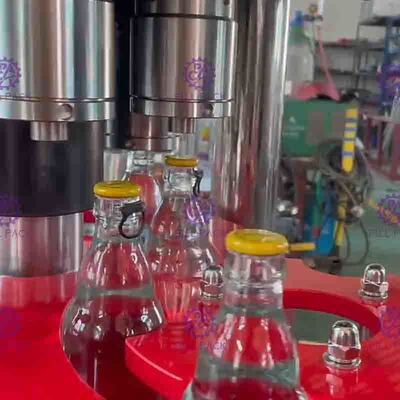

The machine is sued for pull ring capping for glass bottles; The machine is set with bottle dia-plate for automatic bottle entrance; Workers put caps into cap loader, Oscillating coil will unscramble and load bottle automatically, with help of compressed air, caps will load correctly to capping head; By the main motor driven energy, the capping tube move up and down to finish the capping job; When one bottle capping finish, the spring in the capping tube will flick off the done bottle and start for a new one; Comparing with traditional capper, this one is using adjustable speed motor to control speed, and transmission part develop to upgrade speed also; The machine is produced with high quality SUS304, is with reasonable construction, easy for bottle change, easy for maintenance;

Parameters:
Capacity: 0-3000BPH
Capping head: 3 pcs
Capping tube stroke: 58mm
Applicable bottle: glass bottle
Applicable cap: Pull ring cover
Main motor power:0.75KW Cap sorter: 0.3KW
Suggested compressor: 0.6m3/min 0.7Mpa
Dimension: 1000*750*2300mm
Weight: 950kg

1000BPH Automatic Carbonated Soft Drink Filling Machine 2L Bottle Soda Water 0
Application:
1000BPH Automatic Carbonated Soft Drink Filling Machine 2L Bottle Soda Water 11000BPH Automatic Carbonated Soft Drink Filling Machine 2L Bottle Soda Water 2
