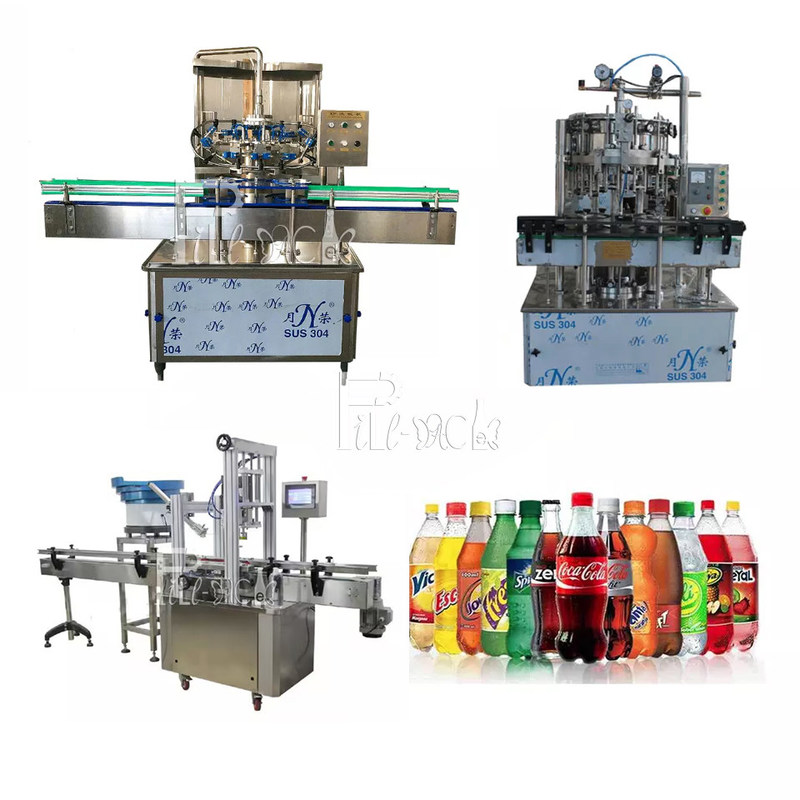

3000BPH Plastic PET Bottle Coca Cola Carbonated Drink Filling Machine Linear Capper For Screw Type Caps
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | QS-12、DG-18、FP-CG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 18215USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 25-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Machinery Capacity: | 3000BPH | Bottle Type: | Plastic PET Bottle |
|---|---|---|---|
| Applicable Bottle Size: | D∮90mm,H<300mm | Filling Pressure: | 1.5-3.2Mpa |
| Power: | 3.92KW | Voltage: | AC 220V, 50/60HZ |
| Size: | 7900*1250*2000mm | Weight: | 1650KG |
| High Light: | Carbonated Beverage Filling Machine 3000BPH,PET Bottle Carbonated Drink Filling Line,Screw Type Caps Carbonated Drink Filler |
||
Product Description
3000BPH Plastic PET Bottle Carbonated Drink Filling Machine Coca Cola Production Line Linear Capper For Screw Type Caps
1. Rotary bottle washer
Principle:
This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.
Parameters:
Rising heads: 12 pcs
Capacity: 0-3000BPH (each bottle rinsing time 4s)
Power: 0.92KW
Dimension: 1050*1050*1900mm
Weight: 450KG
Applicable bottle: D∮50-100mm,H 50-350mm

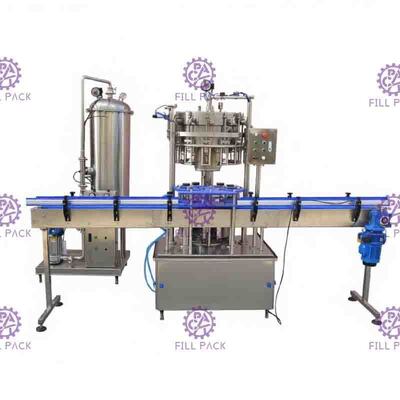

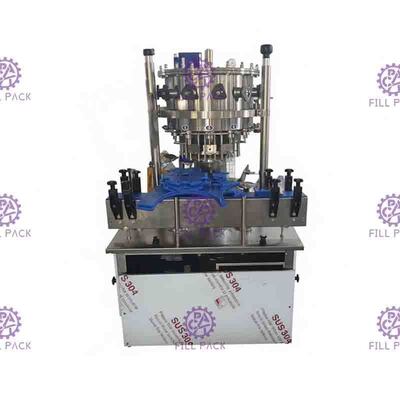

2. Balance pressure filler
This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparkling wine , fruit tea and so on .It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.
| Model : | DG-18 |
| Production Capacity: | 0-4000BPH |
| Bottle /standard: | PET bottle |
| Applicable bottle: | D∮90mm,H<300mm |
| Filling Pressure: | 1.5-3.2Mpa |
| Filling Temperature | <4 ℃ |
| Power: | 2.2kw |
| Overall Dimensions: | 1250*1250*2000mm |
| Weight : | 700kg |

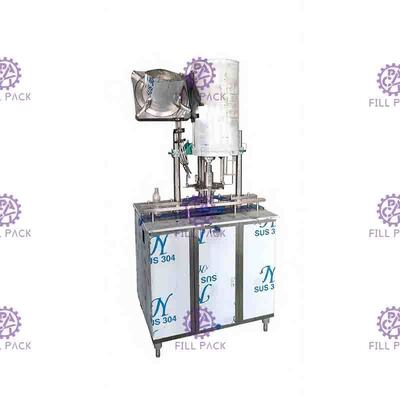

3. Linear capper for screw type caps
Characters:
1, easy to swift bettween different bottle shapes, different cap sizes
2, stable performance
Technical parameters:
| Voltage | AC 220V, 50/60HZ |
| Power | 0.8KW |
| Production speed | 30-60 pcs/min |
| Air pressure | 0.4-0.6Mpa |
Details:
|
The capping speed can be adjusted
|
Double motor power
|
|
Easy operation
|
Cylinder
|
Flow chart:
Application:
