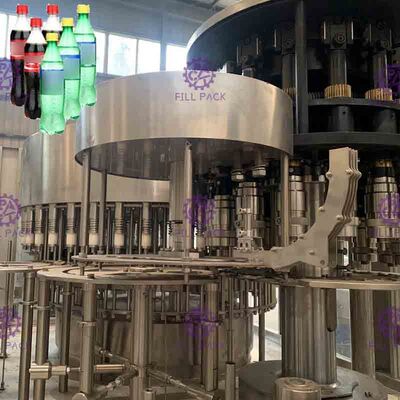

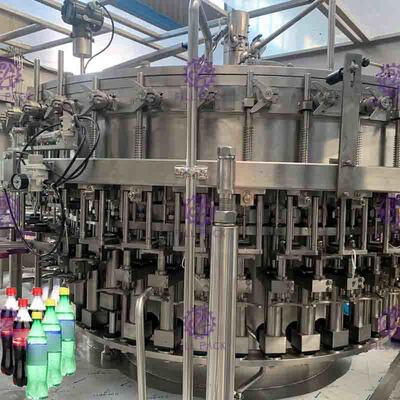

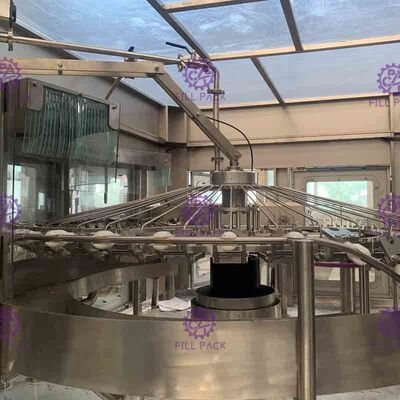

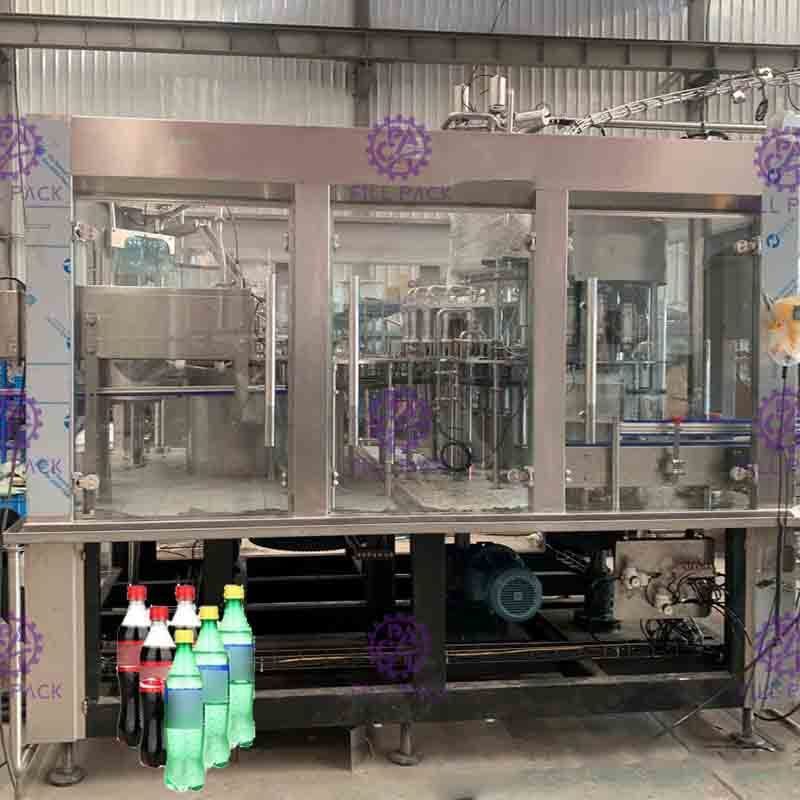

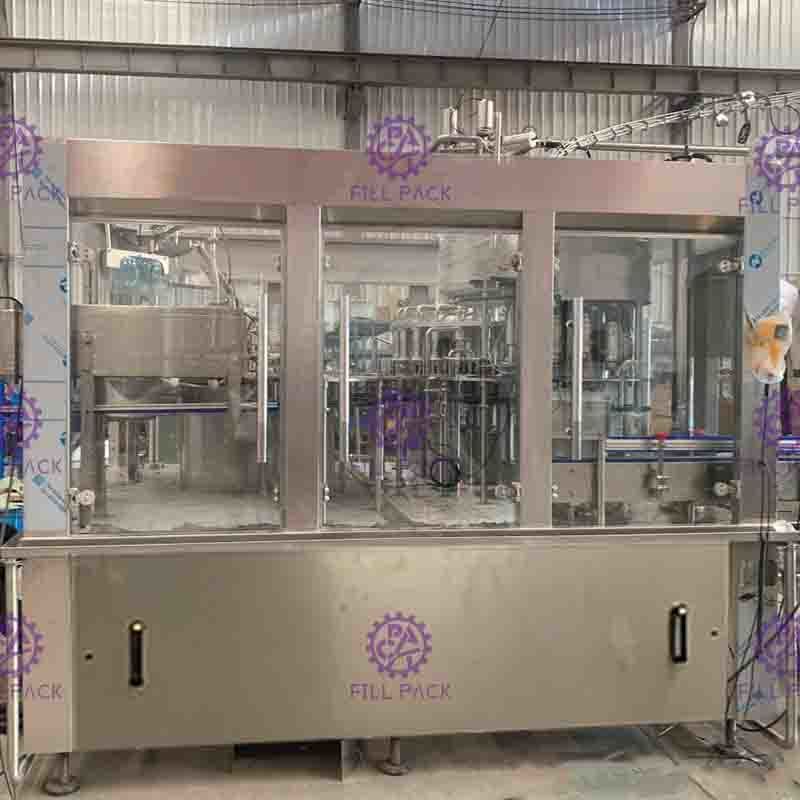

DCGF40-40-12 Carbonated Drink Filling Machine for Plastic screw cap PET bottles

DCGF40-40-12 Carbonated Drink Filling Machine for Plastic screw cap PET bottles

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DCGF40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: L/C, T/T,
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Machine Structure: Rinsing, Filling And Capping In One Machine Processing Type: Carbonated Soda Drink Filling Machine
Bottle Type: PET Bottle Capacity: 10000BPH
Product Name: Carbonated Soda Drink Filling Machine Filling Material: Soda Drink
Auto Grade: Automatic Material: SUS304
High Light:

coke filling machine


csd filling machine

Product Description



DCGF40-40-12 Carbonated Drink Filling Machine for Plastic screw cap PET bottles
Quick Detail:
Name: PLC Control 3 In 1 Carbonated Drink Filling Machine for PET Bottles In Stainless Steel
Material: Food Stage Stainless steel

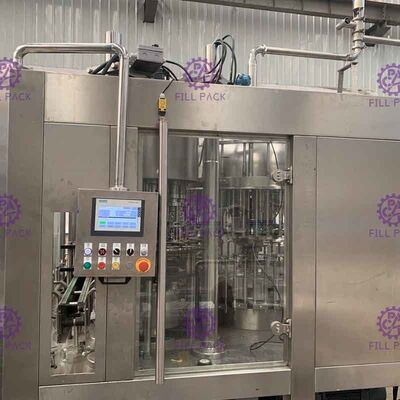

Control: PLC & touch screen control
Capacity: 10000bph
Suitable Bottle: PET bottle

Filling material: Carbonated drinks
Cap type: Plastic screw cap
Bottle Volume: 0.25-2.5L
Dimension: can be customized
Function: Washing filling capping 3 in 1
After-sales service provided: Engineers available to service machinery overseas .

The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers.

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled

screw and conveyor chains, this enable the change the bottle-shaped become easier.

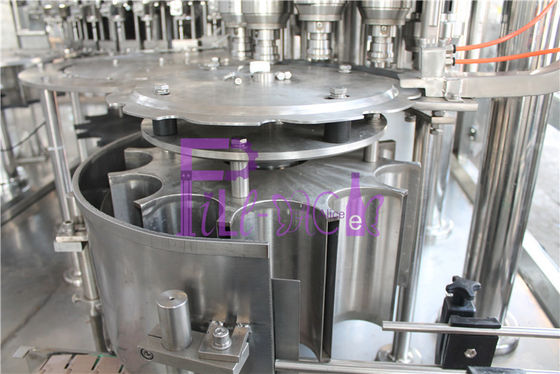

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust

the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch

with the screw location of bottle mouth to avoid secondary pollution.
4. High speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopts advanced PLC automatic control technology, the key electrical component from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main data:

Model DCGF 24-24-8
Production B/H(600ml) 6000-8000
Bottle standard Neck: φ50-100mm Height:150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 3000
Spraying position 10
Dripping bottle position 8
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.5
Total power(KW) 5
Total weight (T) 3
Dimension (L*W*H)mm 2700*2100*2100

1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project





when you send inquiry,please also included the capacity and bottles shape and volume you need to work on the machine, it is easy and accurately for us to recommand a right machine!

If any special,our manufacture also can design the machines according your requirement.
