PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml

PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILLPACK
Certification: CE/ISO9001
Model Number: CGF8-8-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 SETS
Price: 30723USD
Packaging Details: Wooden Case Packing
Delivery Time: 15-20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information
Bottle Volume: 200ml-2000ml Suitable Bottle Type: PET Round Or Square Bottle
Function: Full-automatic Rinsing-filling-capping Voltage: 380V 50Hz
Filling Material: Water Application: Mineral Water Production Line
Machinery Capacity: 3000BPH Material: SUS304
High Light:

PET Bottle Filling Capping Machine

,

500ml Bottle Filling Capping Machine

,

3In1 Monoblock Bottle Filling Machine

Product Description

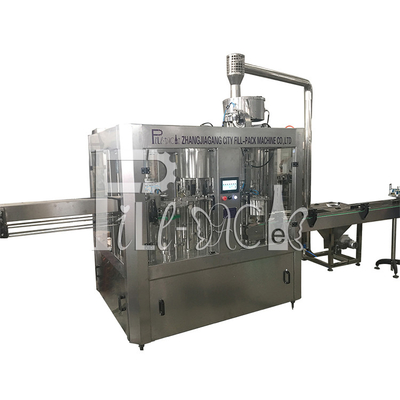

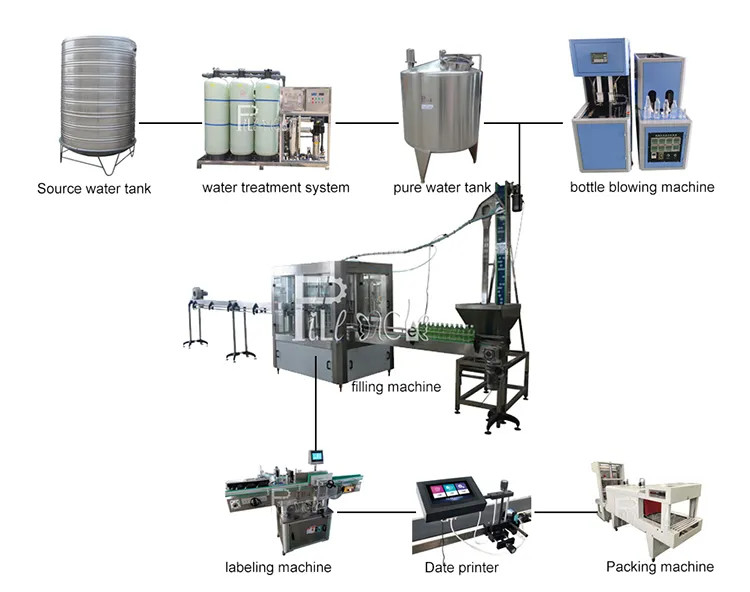

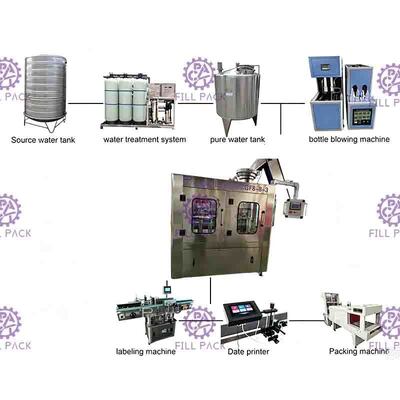

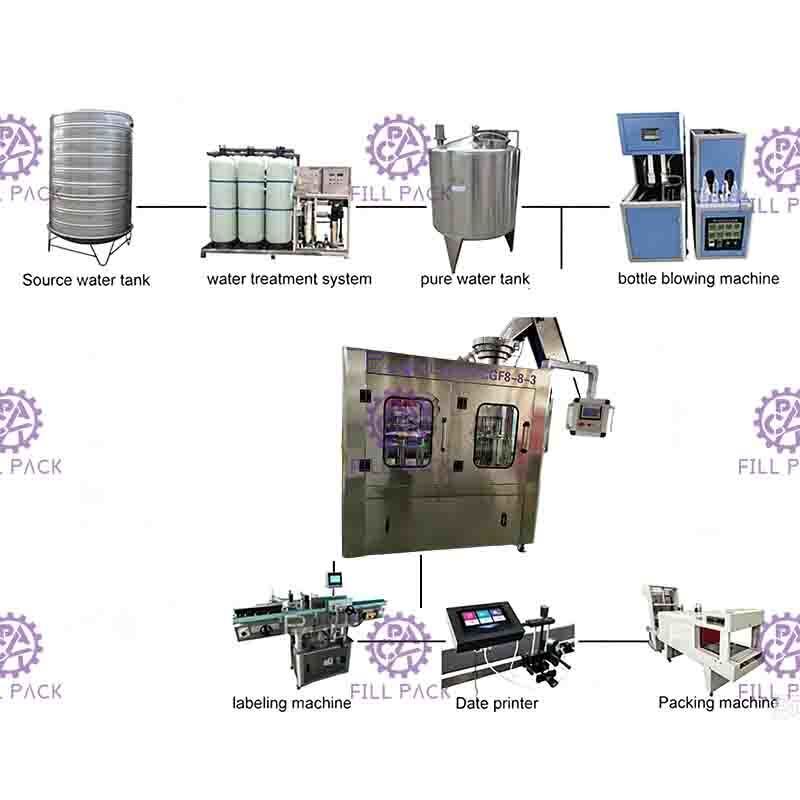

3 In 1 Monoblock 500ml/1L/2L PET Bottle Mineral Water Production Line Rinsing Filling Capping Machine Equipment Plant


CGF8-8-3
Product Capacity:3000BPH@500ml

- Product Features -
1. The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
6. The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.

-Technical Parameters-
Model
CGF8-8-3
Dimensions
1800*1500*2300mm
Capacity
3000BPH
Bottle Type
PET Bottles
Filling Range
200ml---2000ml
Cap Type
Plastic Screw Cap
Voltage
220/380V
Suitable For
Non-carbonated Water





Washing Part
1) Into bottle way is air conveyor direct connection with Bottle dial .
2) All 304 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3) The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water.
4) Rinsing time can be guaranteed for 4 seconds.
5) The supplying of rinsing water is controlled by solenoid valve.

Filling Part
1) Adopted Germany anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.
5) This filling system has an automatic temperature control system.
6) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve moves up and leaves the bottleneck when it finishes filling.
7) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
8) The motivation of the filler is derived from the driven system in the framework and passed by gear.


Capping Part
This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.
Characteristic of the screwing capper as follows:
1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.
3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing by cap loading system.
4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
5) A bottle inlet detect switch is settled on the screw capper.
6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
8) By adjusting the height of the rotary parts to adapt for different bottle height.
9) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
10) The main parts of the screwing capper are processed by the digital-control processing center.

Auxiliary
PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml 0

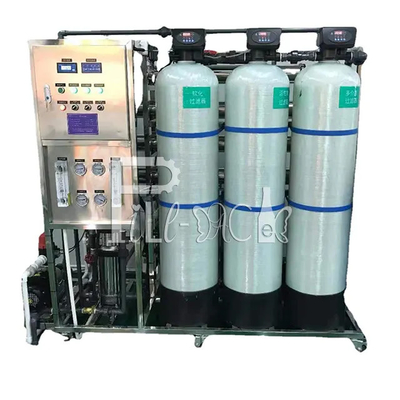

Water treatment system
1. Automation grade: Automatic / Semi-automatic
2. Capacity: 2000L per hour.
3. Material of three pre-filters:SUS304 / FRP
4.Membrane brand:HYDECANME/DOW/GE OSMONICS/Saehan/Toray
5. Optional device: water tank, sodium ion exchanger,UV sterilizer,water storage tank
6. Water pump:NangFang pump
PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml 1

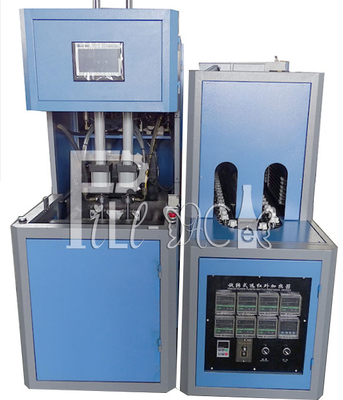

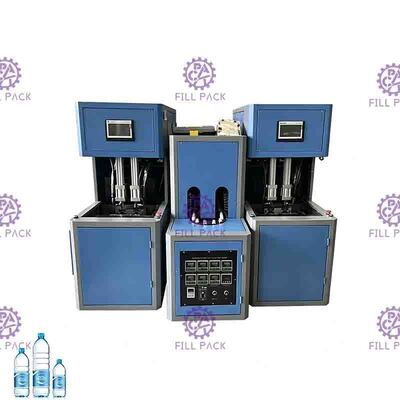

Bottle blow molding machine
FP-1200 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml 2

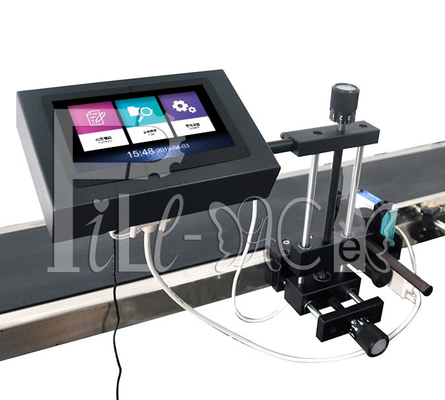

Code printer
The code printer mainly codes the date.We have all kinds of code printing machine, like Hand-held ink jet printers,High resolution ink jet printers and laser code printers etc.
★How to choose the code printer? You need to tell us what kind of bottle you need to code on and how fast the printer you need, the speed is how many meters per minute.
PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml 3

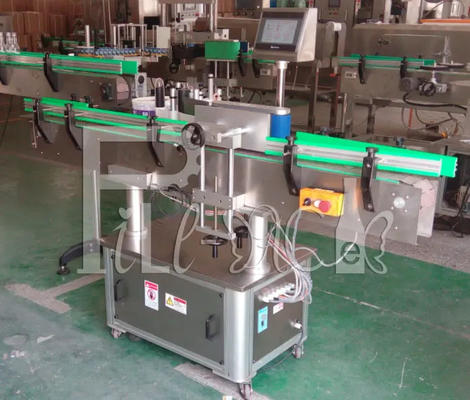

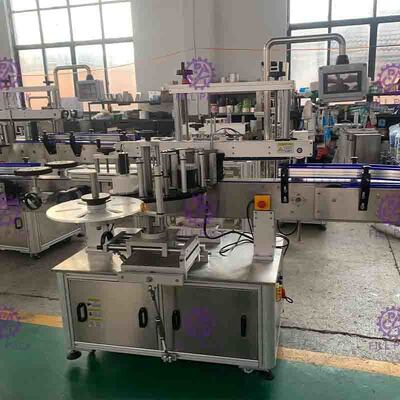

Adhesive labeling machine
This machine is applied for labeling for side flat face or side arc face of flat bottle, round bottle or boxes, such as the
single-side labeling of cosmetic flat bottle or packaging boxes. It increases productivity and improves the quality of packaging.
PET Bottle Mineral Water Filling Capping Machine 3 In 1 Monoblock 500ml 4

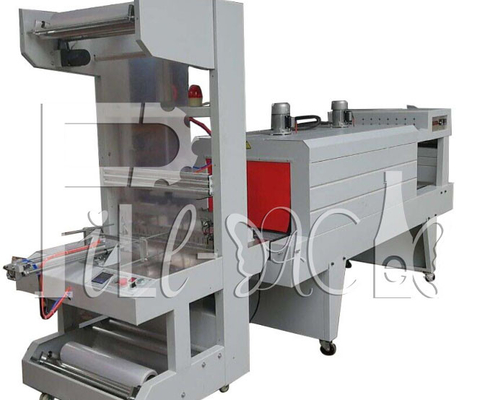

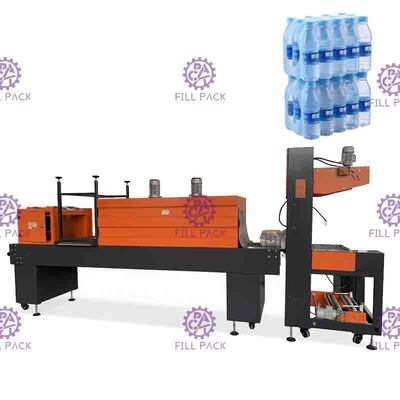

Film shrinking packing machine
★The film shrink packing is used to pack scattered bottles into a whole group.We have Manual wrapping Shrink Packing Machine, Semi-Automatic PE Film Heat Shrink Packing Machine, L Type Automatic PE Film Heat Shrink Wrapping Machine,Linear type High Speed Automatic Shrink Packing and Color film orientation shrink packing machine
