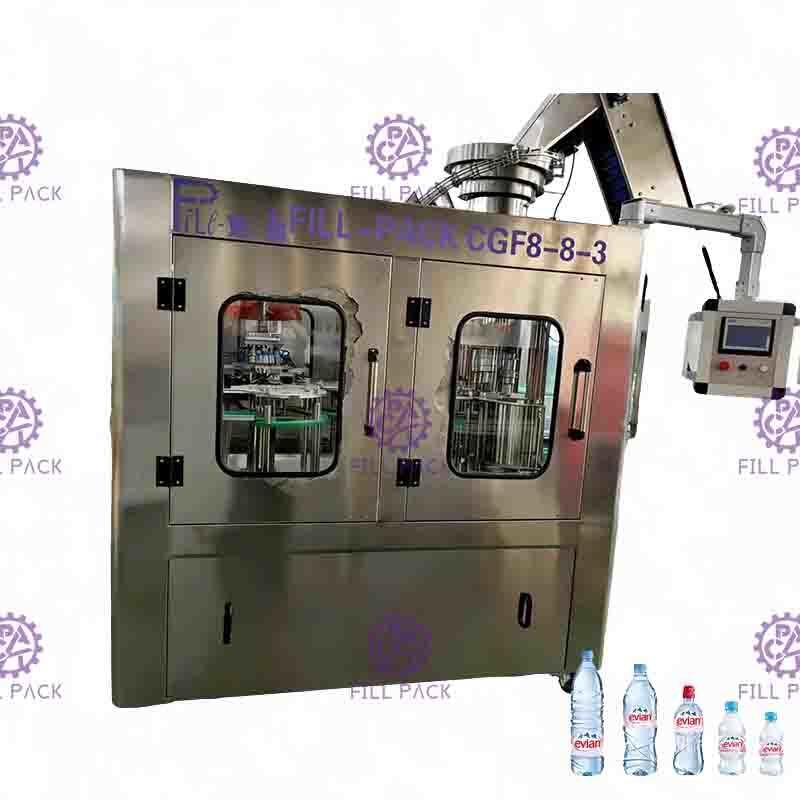

Automatic PET Small Bottle Water Filling Equipment 3 In 1 / Monoblock Aspetic 2000ml
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILL-PACK |
| Certification: | CE/ISO9001 |
| Model Number: | CGF 8-8-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11500.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 20-25 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Accuracy: | <+1MM | Air Consumption: | 0.3m³/min |
|---|---|---|---|
| Air Pressure: | 0.4Mpa | Capacity: | 2000-3000 Bottles/Hour |
| Dimension: | 1800*1500* 2300MM | Filling Range: | 200-2000ml |
| Material: | Ccccccccccccccc | Packaging: | Wooden Case |
| Power: | 4kW | Type: | Automatic |
| Voltage: | 380V | Weight: | 1500kg |
| Warranty: | 12 Months | ||
| Highlight: | PET Monoblock Bottle Water Filling Equipment,2000ml PET Bottle Water Filling Equipment,0.4Mpa PET Water Filling Machine |
||
Product Description
Products Description

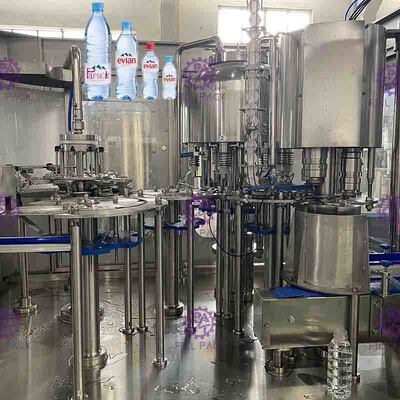

1.1 Washing-filling-capping 3 in 1 machine
The equipment is used in production of non-soda drink of hot juice or cold water packed in
polyester bottles. Washing, filling and capping are integrated in one machine.
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.
The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing part
*Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel
* The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of
* Thegripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
* Thegripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
* Rinsing time can be guaranteed for 4
* By adjusting the height of the rotary parts to adapt for different bottleheight
* The motivation is derived from the driven system in the framework passed by
* The supplying of rinsing water is controlled by solenoidvalve
* The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of
* Thegripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
* Thegripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
* Rinsing time can be guaranteed for 4
* By adjusting the height of the rotary parts to adapt for different bottleheight
* The motivation is derived from the driven system in the framework passed by
* The supplying of rinsing water is controlled by solenoidvalve

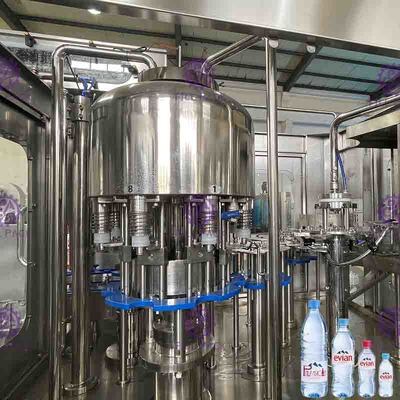

Filling part
1) Adopted Germany anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system
can clean the liquid pipe, liquid tank and filling valve etc. effectively.
5) This filling system has an automatic temperature control system.
6) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave
the bottleneck when it finishes filling.
7) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
8) The motivation of the filler is derived from the driven system in the framework and passed by gear
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve. This system
can clean the liquid pipe, liquid tank and filling valve etc. effectively.
5) This filling system has an automatic temperature control system.
6) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave
the bottleneck when it finishes filling.
7) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
8) The motivation of the filler is derived from the driven system in the framework and passed by gear

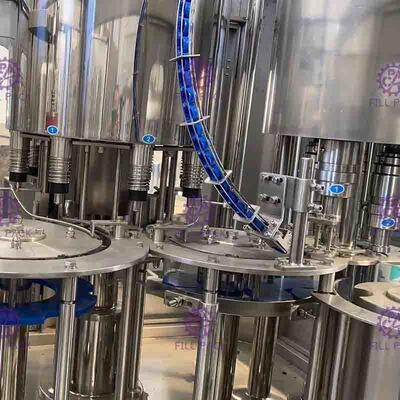

Capping part
This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality. Characteristic of the screwing capper as follows:
1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.
3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing
by cap loading system.
4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
5) A bottle inlet detect switch is settled on the screwing capper.
6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
8) By adjusting the height of the rotary parts to adapt for different bottle height.
9) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.
3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing
by cap loading system.
4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide.
5) A bottle inlet detect switch is settled on the screwing capper.
6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
8) By adjusting the height of the rotary parts to adapt for different bottle height.
9) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
10) The main parts of the screwing capper are processed by the digital-control processing center
Parameters
|
Model
|
CGF 8-8-3
|
|
Capacity(B/H)(500ml)
|
2000-3000
|
|
Bottle size
|
Neck:φ20-50mm；Height:150-320mm
|
|
Water pressure
|
0.18-0.25Mpa
|
|
Water consumption(kg/h)
|
1000
|
|
Washing station
|
2
|
|
Dripping station
|
2
|
|
Filling precision
|
＜+1MM
|
|
Air pressure
|
0.4Mpa
|
|
Air consumption (m³/min)
|
0.3
|
|
Power(kw)
|
4
|
|
Weight(kg)
|
1500
|
|
Dimension(L*W*H)(mm)
|
1800*1500* 2300
|
Electrical rating power:
|
Main motor
|
1.5KW
|
|
Air conveyor blower
|
1.1KW
|
|
Rinsing pump
|
0.37KW
|
|
Filling pump
|
0.55KW
|
|
Cap sorting motor
|
0.22KW
|
|
Belt conveyor motor
|
0.37KW
|
|
TOTAL
|
4.11KW
|
|
Transducer
|
Mitsubishi
|
2.2K
|
|
Touch screen
|
Easyview-TaiWan
|
MT6070
|
|
PLC
|
Mitsubishi
|
FXIS-20MR
|
|
Stabilized voltage supply
|
MingWei-TaiWan
|
S-35-24
|
|
Contactor
|
Schinder
|
CJX2-0910
|
|
Approach switch
|
Autonics
|
PR18-8DN
|
|
Air switch
|
Schinder
|
3P-D20
|
|
|
|
IP-C
|
