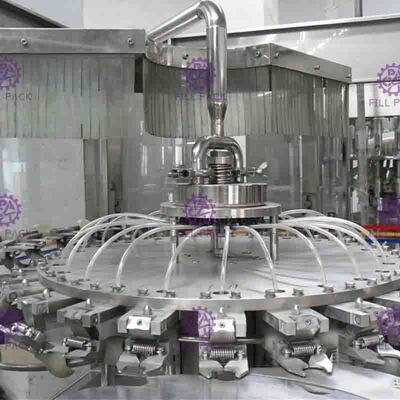

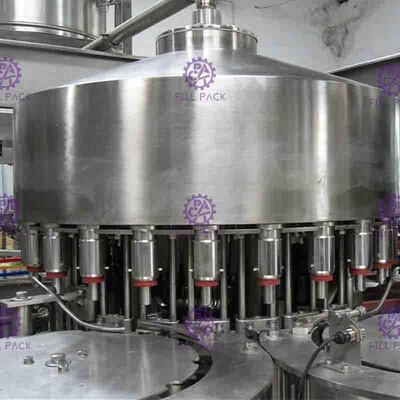

PLC auto control Juice Filling Machine with speed 6000BPH
|Place of Origin:||China,JiangSu,Zhangjiagang|
|Certification:||CE & ISO & TUV & SGS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||30 Working Days After Receiving Your Deposit Payment|
|Payment Terms:||TT & L/C|
|Supply Ability:||20 sets/month|
|Machine Structure:||3 In 1 Unit||Filling Type:||Juice Filling Machine / Hot Filling Machine / Normal Pressure Filling Machine|
|Material:||SUS 304 / 316||Bottle Type:||0.3-2L Bottle|
|Cap Type:||Plastic Screw Cap||Control:||PLC And Touch Screen|
6000BPH aseptic juice filling machine,
6000BPH high speed filling machine,
PLC auto Juice Filling Machine
Automatic Monoblock Pulp Juice Filler , Three In One Filling Machine
Filling type: Juice filling machine / Hot filling machine / Normal pressure filling machine
Material: Food stage stainless steel 304 / 316
Control: PLC & touch screen control
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
1. Integrate washing, filling and capping in one unit, can be used for different kinds of fruit juices and tea hot drink production.
2. The advanced micro-negative pressure filling technology is used in this machine to make the filling is quick, steady and accurate.
3. The beverage feedback system is well designed, the gas can be feed back separately, has no contact with beverage reduce the second time pollution and oxidation.
4. This machine can meet all the technical requirements for hot drink filling below 95°c. All filling valves and beverage conducting pipes can be cleaned. And the automatic washing interface CIP is designed in the machine before capping.
5. The RO water washing device is used to wash the bottle mouth to keep mould away from the bottle mouth. Magnetic torque is used for screw capping, the power of screw capping can be adjusted step by step.
6. It can use constant power to screw capping the plastic caps. The human machine interface is the touch screen. The most advanced PLC control and frequency changing technologies are used in this machine.
|Bottle standard||Neck:φ50-100mm Height150-320mm|
|Water pressure of washing bottle||0.18-0.25Mpa|
|Water consumption for washing bottle (kg/h)||1300||2000||3000||4000|
|Dripping bottle position||3||5||8||10|
|Gas source pressure||0.4Mpa|
|Total weight (T)||2||2.5||3||4|
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
