Monoblock Liquid Filling Machine , 5 In 1 Plastic Bottle Pulp Juice Filler

Monoblock Liquid Filling Machine , 5 In 1 Plastic Bottle Pulp Juice Filler

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: YFRG24-24-24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Machine Structure: 5 In 1 Filling Machine Filling Type: Hot Filling Machine / Normal Pressure Filling Machine
Control: PLC And Touch Screen Bottle Type: 0.3-2L Plastic Bottle
Cap Type: Plastic Screw Cap Capacity: 6000-8000BPH
Highlight:

Monoblock Liquid Filling Machine

,

5 In 1 Plastic Bottle Juice Filler

,

8000BPH Plastic Bottle Juice Filler

Product Description

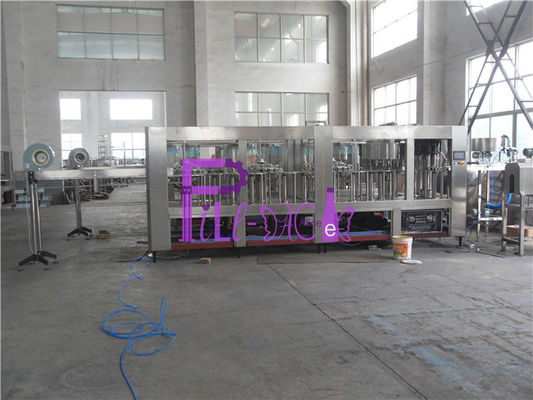

Monoblock Liquid Filling Machine , 5 In 1 Plastic Bottle Pulp Juice Filler





Quick Detail:



Name: Full Auto 5 In 1 Juice Filling Machine Plastic Bottle Liquid Filler Machine

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing washing filling capping 5 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:



- Integrated washing, filling, capping in one unit;

- 3 steps of washing to make sure the hygiene;

- Hot filling manner;

- With mixer in the cylider to avoid block;

- Recyclin system is adopted to prevent the filling temperature;

- 500-1500ML bottle can be used in one machine if the bottle mouth are the same;





Specifications:



Model YFRG12-12-4 YFRG18-18-6 YFRG24-24-8 YFRG32-32-10
Production B/H(600ml) 4000-5000 6000-8000 8000-12000 12000-15000
Bottle standard Neck:φ50-100mm Height150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas source pressure 0.4Mpa
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100











Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Company description



Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%
