Automatic Drinking Water Filling Machine , Stainless Steel Bottled Water Production Line

Automatic Drinking Water Filling Machine , Stainless Steel Bottled Water Production Line

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: CGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 15000-40000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: L/C, T/T,
Supply Ability: 20 Sets Per Months
Get Best Price Contact Now

Detail Information

Material: SUS304 Guarantee Time: 1 Year
Processing Type: Pure / Mineral Water Bottling Machine Weight: 4000kg
Capacity: 8000 - 10000BPH Controlling Type: PLC Control, Touch Screen
High Light:

bottle filling equipment


water filling equipment

Product Description

Automatic Drinking Water Filling Machine , Stainless Steel Bottled Water Production Line



Quick Detail:


Name: Stainless Steel Automatic Drinking Water Filling Machine In Bottled Water Production Linety

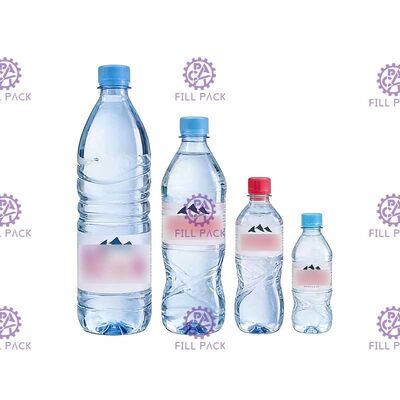

Suitable Bottle: PET bottle

Cap type: plastic screw cap
Bottle Volume: 0.3-2L
Dimension: 3050*2060*2100mm
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .

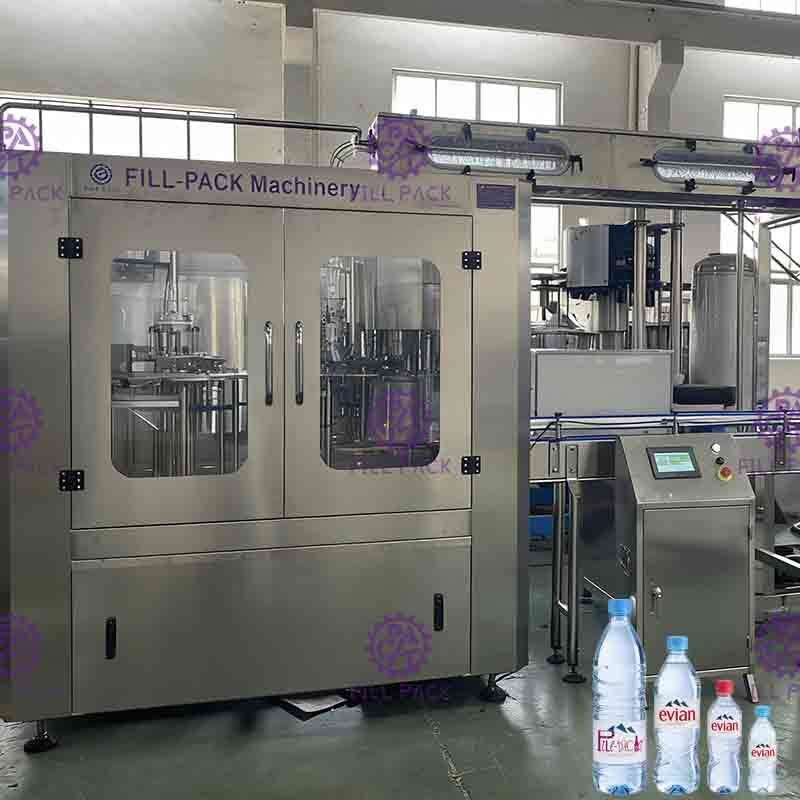

    The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck and are allocated individual filling values.The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.





1. Integrate Bottling Rinsing, Filling and Capping into one.

2. Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.

3. All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material

4. Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.

5. The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the tubular frame.

6. All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.

7. Bottles are rinsed internally and externally, No bottle, No Rinsing.

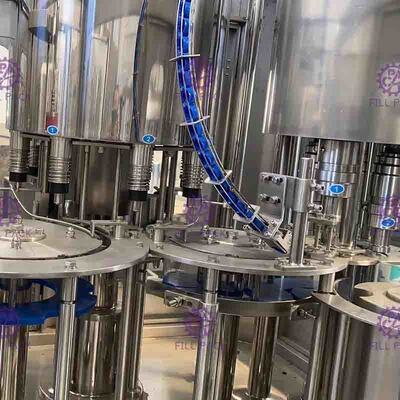

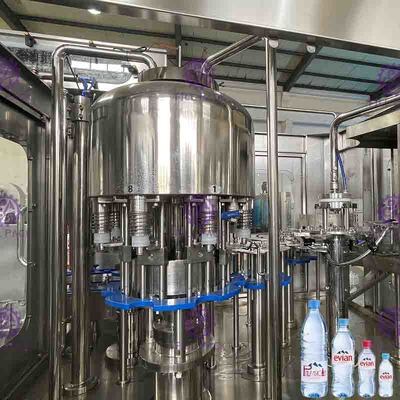

8. Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.

9. Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.

10. PLC control and friendly touch screen HMI interface.

11. Adjustable speed by inverter.

12. Fast and easy changeover to various bottle sizes.

13. Unique design bottle neck suspend system makes bottle move smoothly.

14. Easy to operate,clean and maintain.



Technical Data:


Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Rinsing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 6 6 8 10




2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
Overall Size 1900*1420* 2000mm









Weight 1.5T 2.2T 3.0T 4.0T 8.0T
Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized Customized



After-sales service:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
