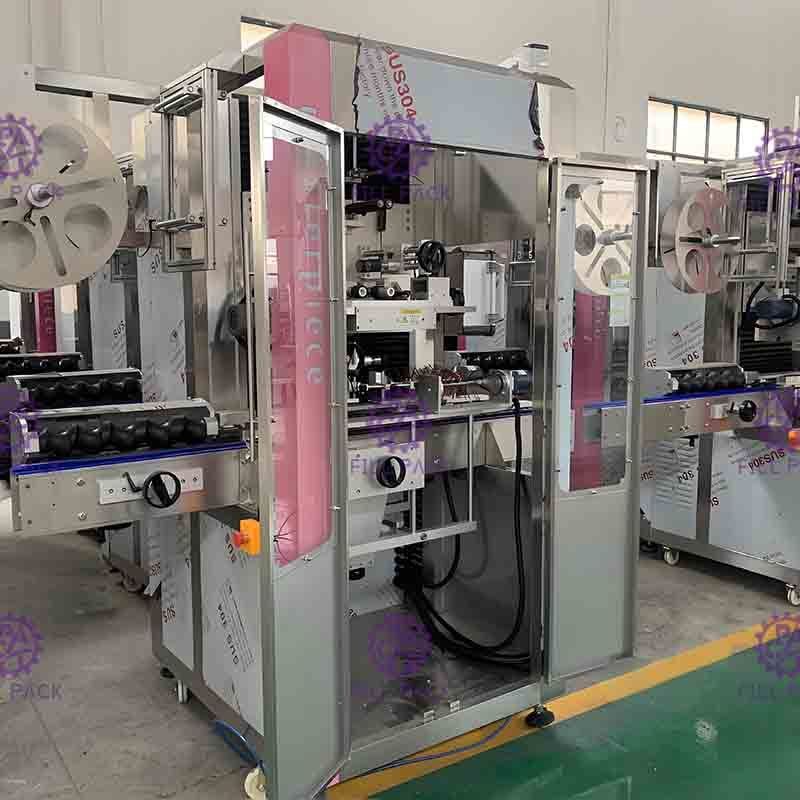

100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen

100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen

    • 100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen
    • 100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen
    • 100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen
    • 100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen
  • 100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen

    Product Details:

    Place of Origin: ZhangJiaGang,JiangSu,China
    Brand Name: Fill Pack
    Certification: CE.ISO9001
    Model Number: TB-150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set for juice bottle labeling machine
    Price: USD$ 8900-10,900/set
    Packaging Details: wooden case packing
    Delivery Time: 5-15 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 15 sets/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Voltage: AC220V, 50/60HZ
    Material Of Label: PVC、 PET、 OPS Adjustable Speed: 100-200BPM
    Driven Type: Electric Automatic Grade: Automatic
    Warranty: 1 Year

    100-200BPM automatically juice bottle labeling machine with adjustable Touch Screen

    Product Description:

    1. This juice bottle labeling machine use advanced technology, for PET bottles (round, square) put a ring, and the use of shrinking technology will ring fixed in the bottle of a specific location.

    2. The model consists of a main part and a steam shrink furnace.The appearance of the main part of the stainless steel, internal structure using a large number of anodized aluminum (showing a silver-white scrub effect), the advantage of light weight and corrosion resistance.

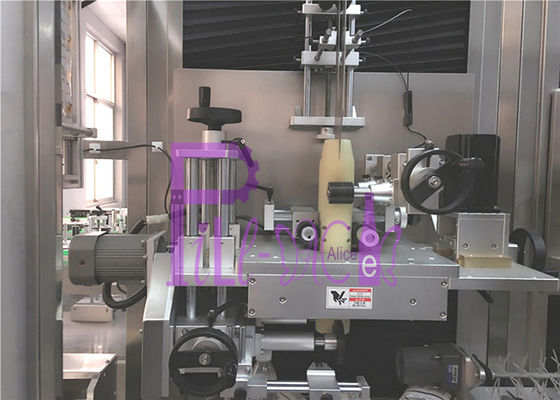

    Configuration table of juice bottle labeling machine parts: 1 set Bottle separating mechanism,Bottle positioning mechanism,Single material putting place,Fiber-optical electric eye controlling,Center guide pin,Hairbrush,Label carrier drive mechanism,Cutter mechanism,Synchronous label brush-off mechanism,Automatic platform elevating mechanism,Man-machine. interface of operation control panel.

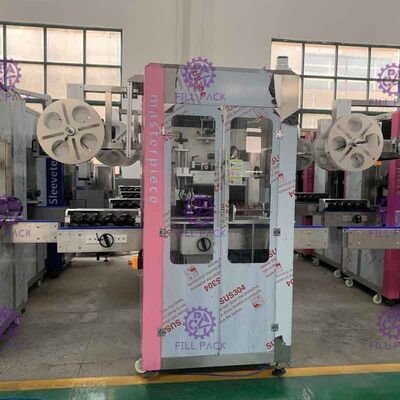

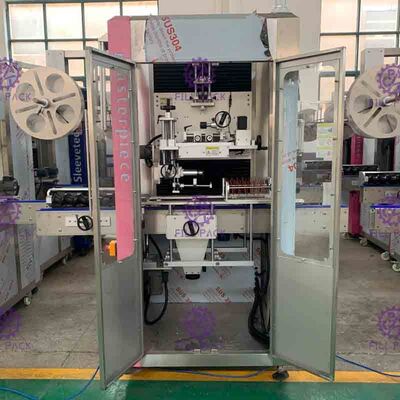

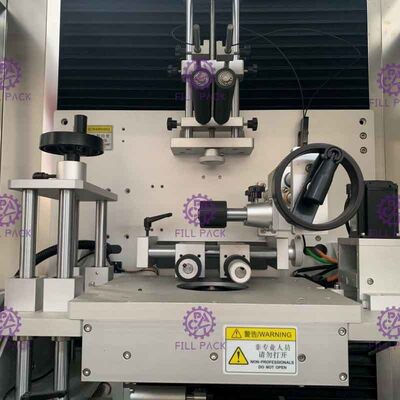

    100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen

    The main configuration table and function of juice bottle labeling machine

    Name

    Function

    Material offering group

    Offer motor for label carrier

    Shelf group

    Install volume label device

    Platform elevating group

    Adjust the height of host automatically according to the bottle shapes

    Brush-off group

    Brushing the cutted label on the bottle

    Cutter group

    Cutting off the labels which are sent to Center guide pin

    Cutter controlling group

    Control the cutter operational site

    The back drive group

    Offer motor for label of center guide pin

    The front drive adjusting group

    Grasping the center guide pin

    Frame of Electric eye group

    Adjust the best cutting position of the label

    Electric eye of bottle lighting detecting group

    Adjust the sleeve labeling position of bottle body

    Hairbrush group

    Brush the label which cannot sleeve properly to the right place

    Bottle positioning group

    Make bottle stable, control sleeve labeling position

    Center guide pin group

    Make volume label distracted for transfer and cut easily

    Bottle entering screw bolts

    Separate bottle on equal distance in order to sleeve labeling accurately































































    Detailed Images

    Steam shrink tunnel

    100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen

    Made of SUS304 stainless steel. The equipment is with steam controller for steam blow wastage. Remained steam be brought out to plant through wind motor. Steam press is adjustable. Shrink effect is perfect and will not hurt the label.

    Parameters:

    Power:380V, 50/60HZ 0.25kw

    Dimension: 1800*500*1800mm

    Pressure: 0.4-0.7Mpa



    Steam generator

    100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen

    Payment

    30% T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70% T/T before shipment.



    Company Information:

    ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.



    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.

    Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 30 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.



    100-200BPM Juice Bottle Labeling Machine With Adjustable Touch Screen
